Glace Bay, Canada, located in the Northern Temperate Zone at coordinates 46.1959, -59.9566, presents a moderately challenging environment for year-round solar PV energy generation. The location experiences significant seasonal variation in solar energy production, which is typical for its northern latitude.

Seasonal Solar Production Patterns

The solar energy output at Glace Bay varies dramatically throughout the year. Summer provides the most productive period, generating 5.74 kWh per day per kW of installed solar capacity. Spring offers the second-best performance at 4.55 kWh per day per kW, making it another favorable season for solar generation. Autumn sees a notable decline in production to 2.74 kWh per day per kW, while winter presents the most challenging conditions with only 1.31 kWh per day per kW of output. This represents more than a four-fold difference between peak summer and winter production. For optimal year-round energy capture at this location, solar panels should be installed at a fixed tilt angle of 39 degrees facing south. This angle has been calculated to maximize total annual solar output by accounting for the sun's changing position throughout the year and weighting for optimal solar irradiance conditions.

Environmental and Weather Challenges

Glace Bay's coastal location in Nova Scotia presents several significant factors that can impede solar production:

• Heavy snowfall during winter months can completely block solar panels
• Frequent coastal fog and marine layer clouds reduce solar irradiance
• Salt spray from the Atlantic Ocean can accumulate on panel surfaces
• High winds and storms common to coastal areas can damage installations
• Ice formation during freeze-thaw cycles can affect panel performance

Preventative Measures for Enhanced Performance

Several installation strategies can help mitigate these environmental challenges and improve energy production: Installing panels at the recommended 39-degree tilt angle not only optimizes sun exposure but also helps snow slide off more easily during winter months. Steeper angles can be considered in areas with particularly heavy snowfall, though this may reduce overall annual production. Regular cleaning and maintenance schedules are essential in this coastal environment. Salt buildup should be removed with fresh water washing, particularly after storms. Anti-reflective coatings designed for marine environments can help reduce salt adhesion. Robust mounting systems designed for high wind loads are crucial given the coastal location's exposure to Atlantic storms. Ground-mounted systems should use deep foundations, while roof-mounted installations require proper structural assessment. Ice guards and heating elements can be installed along panel edges to prevent ice dams that might cause water backup and potential damage. However, the energy cost of heating elements should be weighed against their benefits.

Overall Assessment

While Glace Bay is not an ideal location for solar PV due to its northern latitude and challenging winter conditions, it can still provide meaningful energy production, particularly during the spring and summer months. The location's summer output of 5.74 kWh per day per kW is quite respectable and could justify installation costs for many applications. The key to success at this location lies in proper system design that accounts for seasonal variations, robust installation practices suited to the coastal environment, and a maintenance program that addresses the specific challenges posed by salt air, snow, and marine weather conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

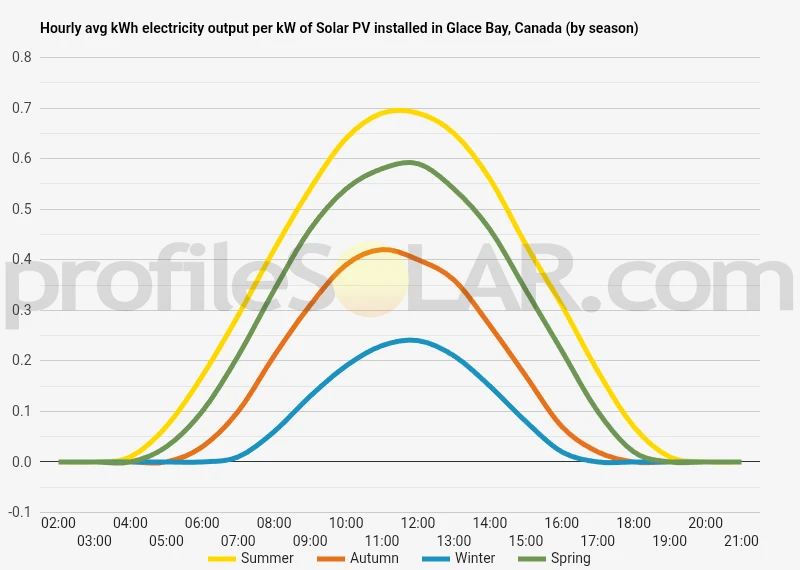

Solar output per kW of installed solar PV by season in Glace Bay

Seasonal solar PV output for Latitude: 46.1959, Longitude: -59.9566 (Glace Bay, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 39° South in Glace Bay, Canada

To maximize your solar PV system's energy output in Glace Bay, Canada (Lat/Long 46.1959, -59.9566) throughout the year, you should tilt your panels at an angle of 39° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Glace Bay, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Glace Bay, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 39° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	49° South in Autumn	60° South in Winter	38° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Glace Bay, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Glace Bay, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Glace Bay, Canada

Topography and Terrain Around Glace Bay

Glace Bay sits on the northeastern coast of Cape Breton Island in Nova Scotia, positioned along the shores of the Atlantic Ocean. The surrounding landscape is characterized by gently rolling hills and coastal plains that are typical of the Maritime provinces. The terrain features a mix of low-lying areas near the coastline and modest elevations inland, with the land gradually rising as it moves away from the ocean.

The immediate coastal area around Glace Bay consists of relatively flat to gently sloping terrain, interrupted by small valleys and modest ridges. Much of this region was historically shaped by glacial activity, resulting in a landscape of rounded hills and broad, shallow depressions. The elevation changes are generally gradual rather than steep, creating a topography that is neither mountainous nor completely flat.

Moving inland from the coast, the terrain becomes more undulating, with a series of low hills and ridges that rarely exceed 200 meters in elevation. These features are interspersed with valleys and small plains that provide natural drainage for the area. The landscape is dotted with numerous small lakes, ponds, and wetland areas that are common throughout Cape Breton Island.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Glace Bay would be found on the gently sloping hillsides and elevated plateaus that lie southwest and west of the town. These areas offer several advantages, including good southern exposure and relatively stable ground conditions. The terrain in these locations provides natural drainage while avoiding the wetland areas that are scattered throughout the region.

The coastal plains immediately south and southeast of Glace Bay also present promising opportunities for solar development. These areas feature relatively flat terrain with minimal obstructions, though careful site selection would be necessary to avoid areas prone to coastal weather extremes and salt spray from the Atlantic Ocean. The land here is generally well-drained and offers good accessibility for construction and maintenance activities.

Areas with gentle south-facing slopes, particularly those found on the inland hills and ridges, would be especially well-suited for solar installations. These locations benefit from optimal panel orientation while the elevated positions help minimize shading from surrounding vegetation or structures. The gradual nature of most slopes in the region means that grading requirements would typically be minimal, reducing development costs.

The region's agricultural lands, particularly those on the broader, flatter areas between the coastal zone and the inland hills, could also accommodate large solar installations. These areas often feature cleared land with good access to existing road networks and electrical infrastructure, making them practical choices for development while avoiding environmentally sensitive coastal and wetland areas.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
