Grand Falls-Windsor, Newfoundland and Labrador, Canada presents a challenging location for year-round solar PV energy generation, with significant seasonal variations that make it less than ideal for consistent solar power production throughout the year.

Seasonal Solar Performance

The solar energy output at this Northern Temperate Zone location varies dramatically across the seasons. Summer provides the strongest performance at 5.47 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring offers moderate output at 4.10 kWh per day per kW, representing the second-best period for solar energy production. However, the location faces substantial challenges during colder months. Autumn drops to 2.43 kWh per day per kW, while winter plummets to just 1.23 kWh per day per kW - less than a quarter of summer production levels. This extreme seasonal variation means solar installations would generate most of their annual energy during the warmer six months of the year.

Optimal Panel Configuration

For fixed panel installations at Grand Falls-Windsor, Newfoundland and Labrador, the ideal tilt angle is 42 degrees facing south to maximize total year-round solar production. This angle is calculated based on the location's latitude and weighted solar irradiance data to optimize annual energy output.

Environmental and Weather Challenges

Several significant local factors can impede solar production at this northern Canadian location:

• Heavy snow accumulation during winter months can completely block solar panels
• Ice formation on panel surfaces reduces light transmission and energy output
• Frequent cloud cover and overcast conditions, particularly common in northern climates
• Extreme cold temperatures can affect panel efficiency and electrical connections
• High winds and storms that may damage or misalign solar installations

Preventative Measures for Better Performance

Several installation strategies can help maximize solar energy production despite these challenges:

• Install panels at steeper angles (like the recommended 42 degrees) to encourage snow to slide off naturally
• Use heating elements or self-cleaning systems to prevent snow and ice buildup
• Choose cold-weather rated panels and components designed for harsh northern climates
• Implement robust mounting systems engineered for high wind and snow loads
• Consider tracking systems that can adjust panel angles seasonally for better winter performance
• Plan for regular maintenance access to clear snow and debris when necessary

The location's northern latitude and harsh winter conditions make Grand Falls-Windsor a challenging environment for consistent year-round solar energy generation, though summer and spring months offer reasonable production potential for those willing to accept the seasonal limitations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

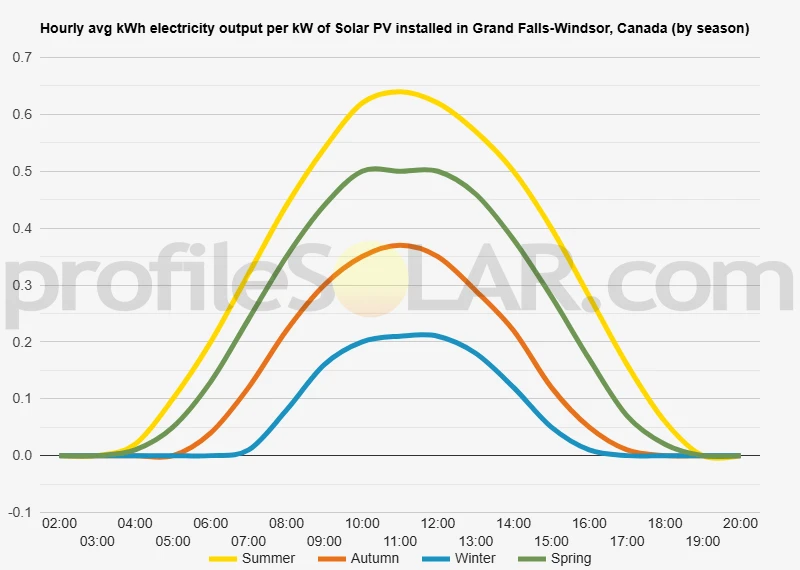

Solar output per kW of installed solar PV by season in Grand Falls-Windsor

Seasonal solar PV output for Latitude: 48.9467, Longitude: -55.6642 (Grand Falls-Windsor, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Grand Falls-Windsor, Canada

To maximize your solar PV system's energy output in Grand Falls-Windsor, Canada (Lat/Long 48.9467, -55.6642) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Grand Falls-Windsor, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Grand Falls-Windsor, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	52° South in Autumn	63° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Grand Falls-Windsor, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Grand Falls-Windsor, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Grand Falls-Windsor, Canada

Topographical Features of Grand Falls-Windsor

Grand Falls-Windsor sits in the heart of Newfoundland, positioned along the Exploits River in a region characterized by gently rolling terrain and mixed forest coverage. The town occupies a relatively elevated position compared to the surrounding river valley, with the landscape featuring moderate hills and undulating terrain typical of the Canadian Shield geology that underlies much of Newfoundland. The immediate area around Grand Falls-Windsor displays a mosaic of cleared agricultural land, residential developments, and patches of boreal forest dominated by spruce, fir, and birch trees. The Exploits River cuts through the landscape from west to east, creating a natural valley that influences local drainage patterns and creates some variation in elevation across the region. To the north and south of the town, the terrain gradually rises into more pronounced hills and ridgelines, though these remain relatively modest in height. The landscape is punctuated by numerous small lakes, wetlands, and stream corridors that are characteristic of the Newfoundland interior. Rock outcrops and exposed bedrock surfaces appear intermittently throughout the area, reflecting the underlying granite and metamorphic geology.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations would be found on the cleared agricultural lands and open fields that extend primarily to the southwest and southeast of Grand Falls-Windsor. These areas offer relatively flat to gently sloping terrain with minimal tree coverage, providing unobstructed southern exposure essential for solar energy collection. The elevated plateaus and ridge tops located several kilometers south of the town center present particularly attractive opportunities for solar development. These higher elevation sites typically experience less fog and atmospheric moisture compared to valley locations, while offering expansive areas of relatively level ground that could accommodate large solar arrays with minimal site preparation. Agricultural fields and former logging areas to the east of Grand Falls-Windsor also show strong potential, especially those that have been cleared for several years and show minimal regrowth of forest vegetation. The gentle southward slopes in these areas would naturally orient solar panels toward optimal sun exposure throughout the day. Areas immediately adjacent to existing electrical infrastructure, particularly near the transmission corridors that serve the town's industrial facilities, would offer practical advantages for connecting large solar installations to the electrical grid. The relatively stable soils in the cleared areas around Grand Falls-Windsor would provide suitable foundations for solar mounting systems without requiring extensive ground preparation or specialized engineering solutions needed in more challenging terrain.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
