Haliburton, Ontario, Canada, located at 45.048° N latitude and -78.5139° E longitude, presents a varied landscape for solar energy production throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal fluctuations in solar energy potential.

Seasonal Solar Performance

The solar energy output in Haliburton varies dramatically across seasons. Summer stands out as the most productive period, with an impressive 5.84 kWh per day for each kilowatt of installed solar capacity. Spring follows closely, yielding 5.07 kWh/day. However, the colder months see a substantial drop in energy production, with autumn generating 2.82 kWh/day and winter producing a mere 1.70 kWh/day.

Optimal Installation Angle

For those considering a fixed panel installation in Haliburton, Ontario, the ideal tilt angle to maximize year-round solar production is 39 degrees facing south. This angle has been calculated to optimize energy capture across all seasons, taking into account the Earth's elliptical orbit and the location's specific latitude.

Environmental Factors and Mitigation

Several environmental factors can impact solar production in Haliburton: 1. Snow accumulation in winter can significantly reduce panel efficiency. 2. Shorter daylight hours during winter months limit energy production. 3. Potential shading from nearby trees or buildings may affect output.

To mitigate these issues, consider the following measures: 1. Install panels at a steeper angle to promote snow sliding off. 2. Implement regular snow removal practices. 3. Conduct thorough site assessments to minimize shading issues. 4. Use high-efficiency panels to maximize production during limited daylight hours.

Conclusion

While Haliburton's location is not ideal for year-round solar energy production due to its significant seasonal variations, it still offers substantial potential, especially during spring and summer. With proper planning and mitigation strategies, solar PV systems can be a viable renewable energy option for this area, contributing to a greener energy mix despite the challenges posed by the local climate and environment.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

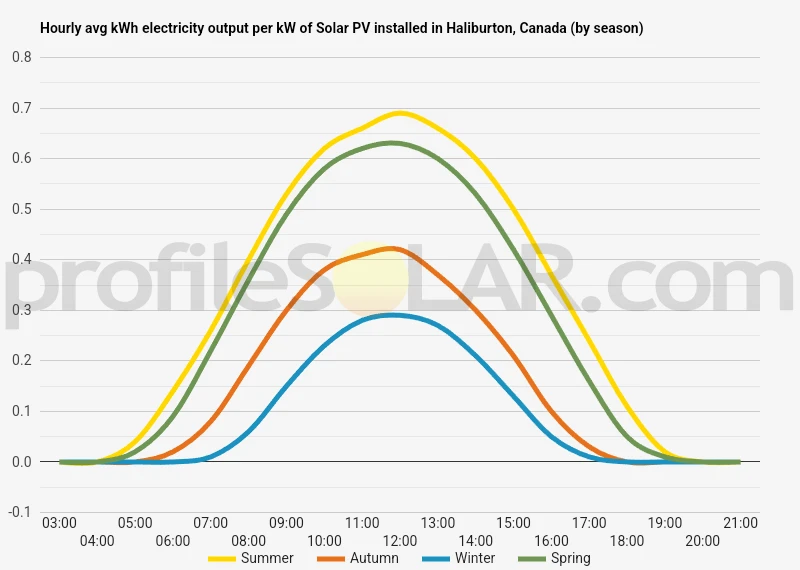

Solar output per kW of installed solar PV by season in Haliburton

Seasonal solar PV output for Latitude: 45.048, Longitude: -78.5139 (Haliburton, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.84kWh/day in Summer.

Average 2.82kWh/day in Autumn.

Average 1.70kWh/day in Winter.

Average 5.07kWh/day in Spring.

Ideally tilt fixed solar panels 39° South in Haliburton, Canada

To maximize your solar PV system's energy output in Haliburton, Canada (Lat/Long 45.048, -78.5139) throughout the year, you should tilt your panels at an angle of 39° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 45.048, Longitude: -78.5139, the ideal angle to tilt panels is 39° South

Seasonally adjusted solar panel tilt angles for Haliburton, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Haliburton, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 39° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Haliburton, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Haliburton, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Haliburton, Canada

The area around Haliburton, Canada, is characterized by a diverse and picturesque landscape typical of the Canadian Shield region. This terrain is a result of ancient glacial activity, which has shaped the land over millions of years.

The topography of Haliburton and its surroundings features a mix of rolling hills, rocky outcrops, and numerous lakes and rivers. The area is part of the Haliburton Highlands, which are known for their rugged beauty and varied elevation. The landscape is dotted with dense forests, primarily composed of mixed hardwood and coniferous trees, creating a lush green canopy during the warmer months.

Throughout the region, you'll find many small to medium-sized lakes, including the larger Haliburton Lake and Kashagawigamog Lake. These bodies of water are interconnected by a network of streams and rivers, contributing to the area's reputation as a popular cottage and recreational destination.

The terrain in and around Haliburton is generally uneven, with frequent changes in elevation. While there are some relatively flat areas, particularly near lakeshores and in river valleys, much of the land consists of gentle to moderate slopes. This varied topography is a defining characteristic of the region and contributes to its scenic appeal.

Regarding areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, there are a few considerations to keep in mind. Ideal locations for solar farms typically require relatively flat, open spaces with minimal shading from trees or other obstructions. Given the predominantly forested and hilly nature of the Haliburton area, finding suitable large-scale sites may be challenging.

However, some potential areas for solar PV development could include:

1. Cleared farmland or pastures in the surrounding rural areas, particularly those with a southern exposure.
2. Former industrial sites or brownfields that offer large, open spaces.
3. Areas where logging or other activities have created sizeable clearings, provided they meet environmental regulations.
4. Gently sloping hillsides facing south, although these may require some land modification.

It's important to note that any large-scale solar PV project in this region would need to carefully consider environmental impacts, local zoning regulations, and the aesthetic concerns of residents and tourists who value the area's natural beauty. Additionally, the region's weather patterns, including significant snowfall in winter, would need to be factored into the design and maintenance plans for any solar installation.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

Some provinces offer grants or low-interest loans for renewable energy projects.

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

Some cities offer additional incentives or property tax reductions for solar installations.

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
