Hillsborough, New Brunswick, Canada is a moderately suitable location for year-round solar energy generation, though it experiences significant seasonal variation typical of northern temperate climates.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 5.82 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring also performs well with 4.97 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline to 2.87 kWh per day per kW, while winter presents the most challenging conditions with only 1.77 kWh per day per kW. This represents more than a three-fold difference between peak summer and winter production. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 40 degrees facing south. This angle maximizes total annual production by accounting for the sun's varying position throughout the seasons.

Environmental and Weather Challenges

Several significant factors can impede solar production at this northern location:

• Heavy snow accumulation during winter months can completely block panels
• Ice formation creates safety hazards and reduces efficiency
• Frequent cloud cover and overcast skies reduce solar irradiance
• Salt air from nearby coastal areas can corrode equipment over time
• Strong winter winds can damage improperly secured installations

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered. Panels should be mounted at steeper angles (like the recommended 40 degrees) to encourage natural snow shedding, while ensuring adequate spacing between panel rows to prevent snow buildup and shading. Anti-corrosion coatings and marine-grade mounting hardware are essential for withstanding salt air exposure. Wind-resistant mounting systems with proper structural engineering help panels survive harsh winter storms. Installing panels with easy access for snow removal, or incorporating heating elements for critical installations, can maintain winter production. Regular maintenance schedules should include cleaning salt residue and inspecting for weather damage. While winter production is naturally limited, these measures help ensure the system captures available energy during the productive spring and summer seasons when solar output is strongest.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

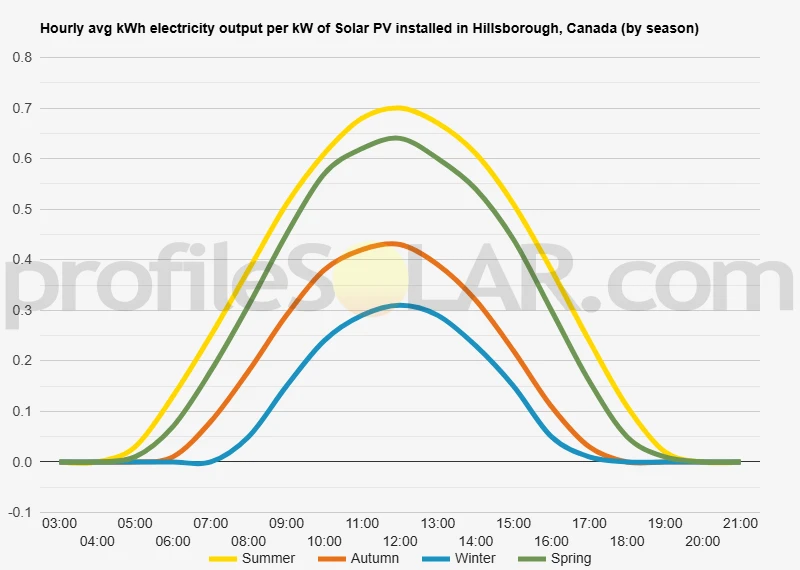

Solar output per kW of installed solar PV by season in Hillsborough

Seasonal solar PV output for Latitude: 45.9212, Longitude: -64.6562 (Hillsborough, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Hillsborough, Canada

To maximize your solar PV system's energy output in Hillsborough, Canada (Lat/Long 45.9212, -64.6562) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hillsborough, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hillsborough, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	49° South in Autumn	60° South in Winter	39° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hillsborough, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hillsborough, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hillsborough, Canada

Topographical Features Around Hillsborough

Hillsborough sits in the heart of Albert County, New Brunswick, positioned along the Petitcodiac River valley in the Maritime Provinces. The landscape surrounding this small community is characterized by gently rolling hills and river terraces that slope gradually toward the Bay of Fundy to the southeast. The terrain consists primarily of sedimentary bedrock overlain with glacial deposits, creating a relatively moderate topography without extreme elevation changes.

The Petitcodiac River meanders through the area, creating natural floodplains and wetlands that contribute to the region's diverse topographical features. To the north and west of Hillsborough, the land rises into the foothills of the Caledonia Highlands, though these elevations remain modest by Canadian standards. The area is part of the broader Maritimes Basin, which means the landscape tends toward gentle undulations rather than steep mountainous terrain.

Agricultural fields dominate much of the surrounding countryside, with mixed forests covering the higher elevations and steeper slopes. The combination of cleared farmland and moderate topography creates numerous open spaces with good southern exposure, which is particularly beneficial for solar energy applications.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Hillsborough would be the elevated plateaus and gentle south-facing slopes that extend north and west of the community. These areas offer several advantages including minimal shading from surrounding terrain, good drainage characteristics, and relatively stable ground conditions for mounting systems.

The agricultural lands on the terraces above the Petitcodiac River floodplain present excellent opportunities for solar development. These locations typically feature cleared land with established access routes, reducing development costs while maintaining the gentle topography that facilitates efficient panel installation and maintenance. The slightly elevated position of these areas also helps avoid potential flooding issues and provides better air circulation around solar arrays.

Areas to the northwest of Hillsborough, where the terrain begins to rise toward the Caledonia Highlands, offer particularly favorable conditions. The gradual slopes in this direction provide natural south-facing orientations while remaining accessible for construction and ongoing maintenance activities. The mixed agricultural and pastoral use of these lands means that large contiguous areas could potentially be developed without significant topographical obstacles.

The eastern approaches toward the Bay of Fundy, while flatter, may be less suitable due to proximity to wetlands and the potential for fog and maritime weather influences. Similarly, areas immediately adjacent to the Petitcodiac River should be avoided due to flood risk and the presence of riparian vegetation that could create shading issues.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
