Ingersoll, Ontario, Canada, situated at latitude 43.0347 and longitude -80.8781, presents a varied landscape for solar energy production throughout the year. This location in the Northern Temperate Zone experiences significant seasonal fluctuations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

The solar energy potential in Ingersoll varies considerably across seasons. Summer stands out as the most productive period, with an impressive daily output of 6.25 kWh per kW of installed solar capacity. Spring follows closely, generating 5.30 kWh/day. However, the colder months see a sharp decline in production, with autumn yielding 2.98 kWh/day and winter dropping to a mere 1.81 kWh/day.

These figures highlight that the ideal times for solar energy generation in Ingersoll are late spring, summer, and early autumn. During these periods, longer daylight hours and higher sun angles contribute to increased solar panel efficiency.

Optimal Panel Positioning

For fixed panel installations in Ingersoll, Ontario, the ideal tilt angle to maximize year-round solar production is 36 degrees facing south. This angle is calculated to optimize energy capture across all seasons, balancing the lower winter sun with the higher summer sun path.

Environmental and Weather Considerations

While Ingersoll's location is generally favorable for solar energy, there are some environmental and weather factors that could impact solar production:

• Snow accumulation in winter can temporarily reduce panel efficiency
• Cloudy days, particularly common in autumn and winter, can decrease solar output

To mitigate these issues, several preventative measures can be taken during solar installation:

• Use panels with anti-soiling coatings to reduce snow adhesion
• Install panels at a steeper angle to promote snow sliding
• Implement a regular cleaning schedule, especially after heavy snowfall
• Consider micro-inverters or power optimizers to minimize the impact of partial shading

By addressing these factors, solar installations in Ingersoll can maintain higher efficiency levels throughout the year, making the most of the available solar resources in this Northern Temperate Zone location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

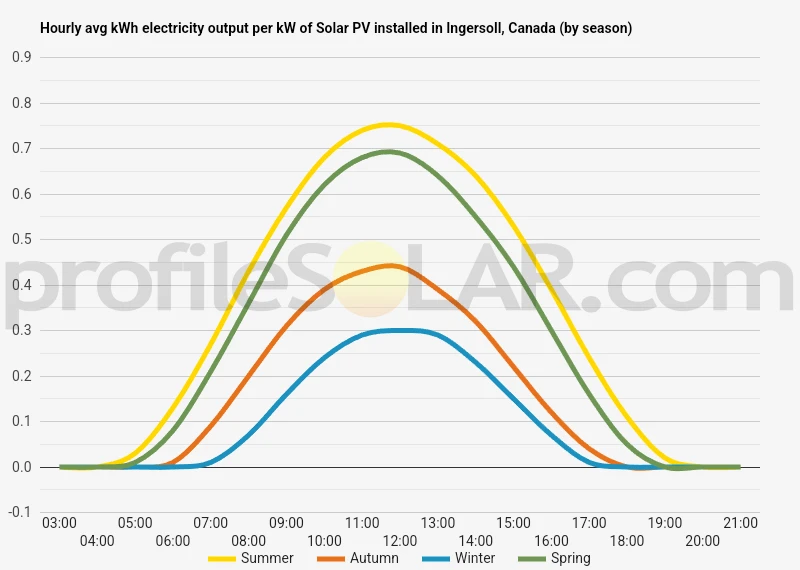

Solar output per kW of installed solar PV by season in Ingersoll

Seasonal solar PV output for Latitude: 43.0347, Longitude: -80.8781 (Ingersoll, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Ingersoll, Canada

To maximize your solar PV system's energy output in Ingersoll, Canada (Lat/Long 43.0347, -80.8781) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ingersoll, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ingersoll, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	46° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ingersoll, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ingersoll, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ingersoll, Canada

The topography around Ingersoll, Canada, is characterized by gently rolling hills and relatively flat terrain, typical of the southwestern Ontario region. This area, situated in Oxford County, is part of the physiographic region known as the Stratford Till Plain. The landscape is primarily composed of agricultural fields, interspersed with small woodlots and meandering streams. The Thames River, a major waterway in the region, flows through Ingersoll, creating a shallow valley that adds some variation to the otherwise modest relief. The surrounding countryside features a mix of open farmland and scattered patches of forest, with elevations generally ranging from about 250 to 300 meters above sea level.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The gently undulating terrain around Ingersoll offers numerous potential sites for solar farms. The most suitable areas would likely be found on the open agricultural lands to the south and east of the town. These locations benefit from relatively flat topography, which minimizes the need for extensive land grading and simplifies the installation process. The absence of significant hills or forests in these areas also reduces the risk of shading, which can impact solar panel efficiency. Additionally, the proximity to existing electrical infrastructure and transportation routes makes these areas attractive for solar development. The rural nature of the region also means that there is less competition for land use compared to more densely populated urban areas. However, it's important to note that while the topography is generally favorable, other factors such as local zoning regulations, environmental considerations, and grid connection capacity would need to be carefully evaluated before determining the final suitability of any specific site for large-scale solar PV development.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
