Kapuskasing, Ontario, Canada presents a challenging location for year-round solar energy generation, with significant seasonal variations that reflect its northern temperate climate at latitude 49.4149, longitude -82.4277.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the most productive period, generating 5.71 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second-best season with 4.64 kWh per day per kW, making these warmer months ideal for solar energy production. However, the colder seasons present significant challenges. Autumn drops to 2.26 kWh per day per kW, while winter plummets to just 1.47 kWh per day per kW - less than a quarter of summer's output. This extreme seasonal variation makes Kapuskasing a less than ideal location for consistent year-round solar energy generation.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle is 42 degrees facing south to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to find the optimal compromise for annual energy output.

Environmental and Weather Challenges

Several significant factors can impede solar production in Kapuskasing's northern climate:

• Snow accumulation: Heavy snowfall can completely block panels for extended periods during winter months
• Ice formation: Freezing rain and ice storms can coat panels, dramatically reducing efficiency
• Cloud cover: The region experiences frequent overcast conditions, particularly during autumn and winter
• Extreme cold: While solar panels can actually perform better in cold temperatures, extreme cold can affect system components and connections

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies can help: Installing panels at the optimal 42-degree tilt angle not only maximizes solar exposure but also helps snow slide off more easily than flatter installations. Choosing panels with smooth, dark surfaces and anti-reflective coatings can help snow and ice melt faster when sunlight returns. Ground-mounted systems should be elevated well above expected snow levels, while roof-mounted systems benefit from easy access for snow removal. Installing heating elements or de-icing systems along panel edges can prevent ice damming, though this adds to system costs and energy consumption. Proper system design should include robust mounting hardware rated for heavy snow loads and high winds. Battery storage becomes particularly valuable at this location to store excess summer production for use during the low-production winter months. Regular maintenance scheduling is crucial, with plans for safe snow and ice removal during winter months. Professional cleaning services may be necessary given the challenging winter conditions and safety concerns of accessing panels during harsh weather.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

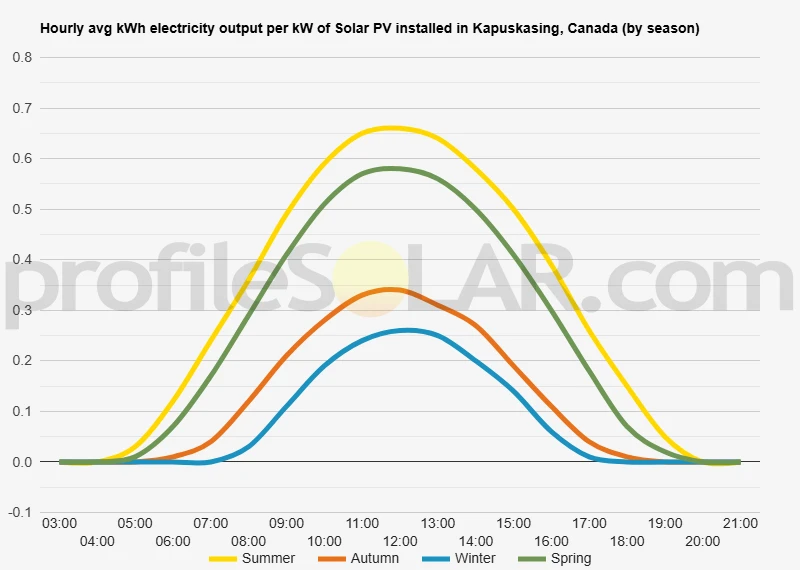

Solar output per kW of installed solar PV by season in Kapuskasing

Seasonal solar PV output for Latitude: 49.4149, Longitude: -82.4277 (Kapuskasing, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Kapuskasing, Canada

To maximize your solar PV system's energy output in Kapuskasing, Canada (Lat/Long 49.4149, -82.4277) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kapuskasing, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kapuskasing, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	53° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kapuskasing, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kapuskasing, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kapuskasing, Canada

Topographical Features of the Kapuskasing Region

The landscape around Kapuskasing, Ontario is characterized by relatively flat to gently rolling terrain typical of the Canadian Shield's southern edge. This region sits within the Clay Belt, a vast area of fertile agricultural land that extends across northeastern Ontario and into Quebec. The elevation around Kapuskasing ranges from approximately 220 to 280 meters above sea level, with only modest variations across the immediate vicinity.

The topography is dominated by expansive flat plains interspersed with low hills and shallow valleys carved by ancient glacial activity. The Kapuskasing River meanders through the area, creating some minor elevation changes along its banks, but these variations are generally subtle. Dense boreal forest covers much of the undeveloped land, consisting primarily of spruce, fir, poplar, and birch trees.

Agricultural fields are scattered throughout the region, particularly south and west of the town, where the land has been cleared for farming operations. These cleared areas reveal the underlying clay soils that give the Clay Belt its name. The terrain lacks significant geological obstacles such as steep slopes, deep ravines, or rocky outcroppings that might complicate large-scale development projects.

Optimal Areas for Large-Scale Solar Development

The agricultural lands southwest and south of Kapuskasing present the most promising opportunities for large-scale solar photovoltaic installations. These areas offer extensive flat or gently sloping terrain that has already been cleared of forest cover, eliminating the need for costly land preparation and tree removal. The open agricultural fields provide unobstructed southern exposure with minimal shading concerns from surrounding vegetation or topographical features.

The relatively stable clay soils in these agricultural zones can adequately support the foundation requirements for solar panel mounting systems, though proper geotechnical assessment would be necessary for any specific site. The flat topography minimizes issues with panel spacing and reduces the complexity of electrical infrastructure layout across large installations.

Areas immediately east of Kapuskasing also show potential, where mixed agricultural and cleared land provides similar advantages. The gentle terrain in this direction offers good accessibility for construction equipment and ongoing maintenance operations. The proximity to existing electrical transmission infrastructure along major transportation corridors enhances the feasibility of connecting large solar installations to the provincial power grid.

Forested areas, while abundant in the region, would require significant clearing operations and would face greater environmental regulatory scrutiny. The costs associated with forest removal and the potential impact on local ecosystems make these locations less attractive for solar development compared to already-cleared agricultural lands.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
