Solar Energy Potential in Kingsville, Ontario, Canada

Kingsville, Ontario, located in the Northern Temperate Zone of Canada, offers varying potential for solar energy generation throughout the year. The location's latitude and longitude (42.0463, -82.7587) play a significant role in determining its solar energy production capabilities. Solar energy output in Kingsville fluctuates considerably across the seasons. Summer proves to be the most productive period, with an average daily output of 6.36 kWh per kW of installed solar capacity. Spring follows closely behind, generating 5.54 kWh/day. Autumn sees a notable decrease in production, with 3.28 kWh/day, while winter experiences the lowest output at 1.73 kWh/day.

Optimal Panel Placement

To maximize year-round solar energy production in Kingsville, Ontario, fixed solar panels should be tilted at a 36-degree angle facing south. This optimal angle takes into account the location's latitude, the Earth's elliptical orbit, and seasonal variations in solar elevation.

Seasonal Considerations

The most ideal times for solar energy generation in Kingsville are during the summer and spring months. These seasons offer longer daylight hours and more direct sunlight, resulting in significantly higher energy production. Autumn and winter, while less productive, still contribute to the overall annual energy output.

Environmental Factors and Mitigation

Kingsville's location in the Northern Temperate Zone presents some challenges for solar energy production. The primary environmental factors that could impede solar production include: 1. Snow accumulation in winter: Heavy snowfall can cover solar panels, reducing their efficiency. Regular panel cleaning and the use of snow-shedding systems can help mitigate this issue. 2. Cloud cover: The region experiences cloudy days, particularly in autumn and winter, which can reduce solar output. Using high-efficiency panels and incorporating energy storage systems can help offset the impact of cloudy periods. To ensure greater energy production, consider these preventative measures when installing solar panels:

• Use anti-reflective coatings on panels to maximize light absorption
• Install a tracking system to follow the sun's path, increasing daily energy capture
• Implement a robust cleaning and maintenance schedule to keep panels operating at peak efficiency
• Consider using bifacial solar panels to capture reflected light, particularly beneficial in snowy conditions

By addressing these environmental factors and implementing appropriate measures, Kingsville residents can optimize their solar energy systems for year-round production, despite seasonal variations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

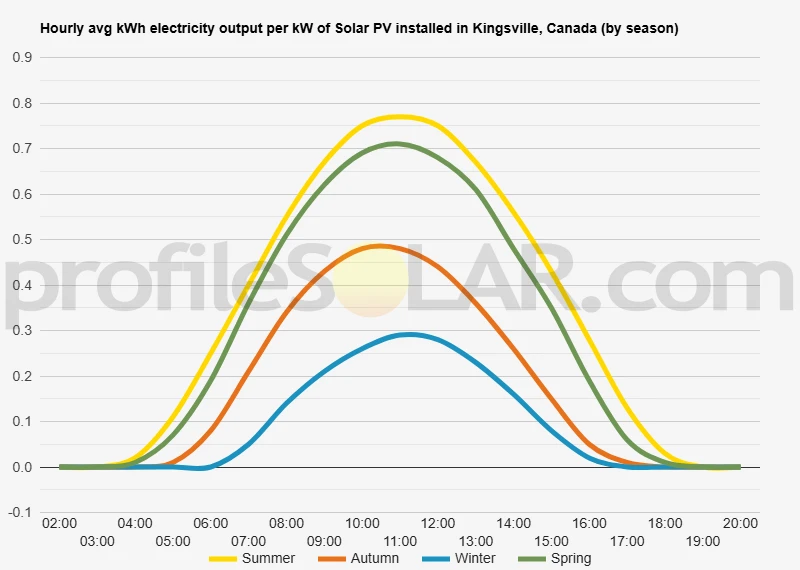

Solar output per kW of installed solar PV by season in Kingsville

Seasonal solar PV output for Latitude: 42.0463, Longitude: -82.7587 (Kingsville, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Kingsville, Canada

To maximize your solar PV system's energy output in Kingsville, Canada (Lat/Long 42.0463, -82.7587) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kingsville, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kingsville, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kingsville, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kingsville, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kingsville, Canada

The area surrounding Kingsville, Canada, located at 42.0463 degrees north latitude and 82.7587 degrees west longitude, is characterized by a relatively flat and low-lying topography. This region, situated in southwestern Ontario near the northern shore of Lake Erie, is part of the broader St. Lawrence Lowlands physiographic region. The landscape around Kingsville is predominantly composed of gently rolling plains and farmland. The terrain is generally level, with only slight variations in elevation. This flat topography is a result of glacial activity during the last ice age, which left behind deposits of till and other sediments, creating a smooth, even surface across much of the area. To the north of Kingsville, the land gradually rises towards the center of Essex County, but the increase in elevation is minimal. The region's highest points are typically no more than 30 to 40 meters above sea level. To the south, the land slopes gently towards Lake Erie, with some areas featuring low bluffs or small cliffs along the shoreline.

Suitability for Large-Scale Solar PV

The topography and geography of the Kingsville area make it well-suited for large-scale solar photovoltaic (PV) installations. Several factors contribute to its potential for solar energy development: Firstly, the flat terrain provides ample open spaces that can accommodate large arrays of solar panels without the need for significant land modification. This reduces installation costs and environmental impact. Secondly, the region experiences relatively high levels of solar radiation compared to other parts of Canada, thanks to its southern location and proximity to Lake Erie. The lake effect also helps to moderate temperatures, potentially improving the efficiency of solar panels. The areas most suited for large-scale solar PV installations would be the agricultural lands to the north and east of Kingsville. These areas offer expansive, unobstructed spaces that receive consistent sunlight throughout the day. The flat farmland provides an ideal setting for solar farms, as it minimizes shading issues and allows for optimal panel orientation. However, it's important to note that the use of productive agricultural land for solar installations may face some resistance due to concerns about food production. As such, brownfield sites, former industrial areas, or less productive farmland might be preferred locations for large-scale solar PV projects in the region. In conclusion, while the entire area around Kingsville offers favorable conditions for solar energy development, the most suitable locations would likely be found in the open, flat agricultural lands north and east of the town, balancing solar potential with land use considerations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
