Ladysmith, British Columbia, Canada, situated at latitude 48.9828 and longitude -123.8254, presents a mixed picture for year-round solar energy generation. This location in the Northern Temperate Zone experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

The solar energy production at Ladysmith varies dramatically across the seasons. Summer stands out as the most productive period, with an impressive 7.15 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second-best season, generating 5.30 kWh daily. However, autumn and winter see a sharp decline in output, with 2.42 kWh and 1.34 kWh per day, respectively.

These figures highlight that Ladysmith's solar potential is heavily skewed towards the warmer months. The long summer days in this northern location contribute significantly to the high summer output. Conversely, the short winter days and typically overcast conditions during the colder months result in substantially reduced solar generation.

Optimal Panel Positioning

To maximize year-round solar production in Ladysmith, British Columbia, fixed solar panels should be tilted at a 40-degree angle facing south. This angle is calculated to optimize the total annual energy yield, taking into account the varying solar elevation angles throughout the year and the location's specific solar irradiance data.

Environmental and Weather Considerations

Several factors could potentially impede solar production in Ladysmith:

1. Cloud cover: The Pacific Northwest region, including Vancouver Island where Ladysmith is located, is known for its frequent cloud cover, especially during autumn and winter. This can significantly reduce solar output.
2. Rain: Ladysmith experiences considerable rainfall, particularly from October to March, which can affect panel efficiency.
3. Snow: While not as severe as in other parts of Canada, occasional snowfall can temporarily cover panels and reduce output.

To mitigate these challenges, consider the following preventative measures:

• Install panels at the optimal angle to promote self-cleaning and snow shedding
• Use high-efficiency panels designed to perform well in low-light conditions
• Implement a regular cleaning and maintenance schedule to ensure optimal performance
• Consider a ground-mounted system for easier access during winter months

While Ladysmith's location presents some challenges for year-round solar energy production, proper system design and maintenance can help maximize the available solar resources, particularly during the highly productive summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

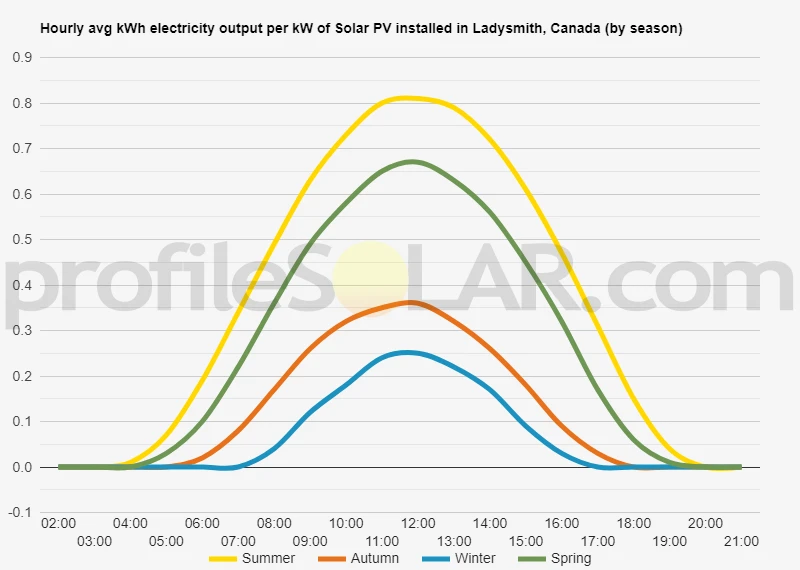

Solar output per kW of installed solar PV by season in Ladysmith

Seasonal solar PV output for Latitude: 48.9828, Longitude: -123.8254 (Ladysmith, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 7.15kWh/day in Summer.

Average 2.42kWh/day in Autumn.

Average 1.34kWh/day in Winter.

Average 5.30kWh/day in Spring.

Ideally tilt fixed solar panels 40° South in Ladysmith, Canada

To maximize your solar PV system's energy output in Ladysmith, Canada (Lat/Long 48.9828, -123.8254) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 48.9828, Longitude: -123.8254, the ideal angle to tilt panels is 40° South

Seasonally adjusted solar panel tilt angles for Ladysmith, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ladysmith, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ladysmith, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ladysmith, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ladysmith, Canada

The topography around Ladysmith, Canada, located on Vancouver Island in British Columbia, is characterized by a mix of coastal lowlands and hilly terrain. The town itself is situated on the eastern coast of the island, nestled between the Strait of Georgia and the island's interior mountains.

The immediate area surrounding Ladysmith features gently rolling hills and small valleys, with elevations gradually increasing as you move inland. The coastline is marked by numerous bays and inlets, creating a picturesque and varied landscape. To the west of Ladysmith, the terrain becomes more rugged and mountainous, with forested slopes and higher elevations forming part of the Vancouver Island Ranges.

In terms of large-scale solar PV installations, the most suitable areas nearby would likely be found in the more open, flatter regions to the south and southeast of Ladysmith. The Cowichan Valley, located a short distance south of the town, offers some potential sites with its mix of agricultural land and clearings. These areas generally have fewer trees and obstructions that could block sunlight, making them more favorable for solar energy production.

However, it's important to note that the region's climate, characterized by frequent cloud cover and rainfall, particularly in the winter months, may pose challenges for solar energy generation. The most ideal locations would be those that receive the most sunlight throughout the year, have minimal shading from surrounding terrain or vegetation, and offer easy access to existing power infrastructure.

Additionally, some of the cleared areas on the gentler slopes of nearby hills might also be considered for solar installations, as they could potentially receive good sun exposure. However, any development would need to carefully balance environmental concerns, land use regulations, and the preservation of the region's natural beauty.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

Some provinces offer grants or low-interest loans for renewable energy projects.

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

Some cities offer additional incentives or property tax reductions for solar installations.

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
