Maple Creek, Saskatchewan, Canada presents a moderately challenging location for year-round solar energy generation, with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Northern Temperate Zone location varies dramatically throughout the year. Summer provides the strongest performance at 6.63 kWh per day per kW of installed capacity, making it an excellent season for solar generation. Spring also offers good production levels at 5.14 kWh per day per kW, providing a solid shoulder season for energy collection. However, the location faces substantial challenges during colder months. Autumn drops to 3.16 kWh per day per kW, while winter plummets to just 1.86 kWh per day per kW - representing only about 28% of summer production levels. This extreme seasonal variation means that winter energy needs would require significant battery storage or grid supplementation.

Optimal Installation Configuration

For maximum year-round energy production at Maple Creek, Saskatchewan, solar panels should be installed at a fixed tilt angle of 43 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting for actual solar potential at this latitude.

Environmental and Weather Challenges

Several significant local factors can impede solar production at this Canadian prairie location:

• Heavy snow accumulation during long winters can completely block panels
• Ice formation creates additional barriers to sunlight penetration
• Frequent cloud cover and overcast skies reduce solar irradiance
• Strong prairie winds can deposit dust, debris, and snow on panel surfaces
• Extreme temperature fluctuations can affect panel efficiency and equipment longevity

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Install panels with steeper tilt angles (like the recommended 43 degrees) to promote natural snow shedding
• Ensure adequate spacing between panel rows to prevent snow buildup and shading
• Use mounting systems designed for high wind and snow loads typical of prairie environments
• Install panels with smooth surfaces and anti-reflective coatings that resist ice formation
• Plan for regular winter maintenance access to clear snow and ice when necessary
• Consider cold-weather rated equipment and wiring designed for extreme temperature variations

While Maple Creek can generate substantial solar energy during summer and spring months, the location requires careful planning and robust installation practices to handle harsh winter conditions and maximize year-round performance.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

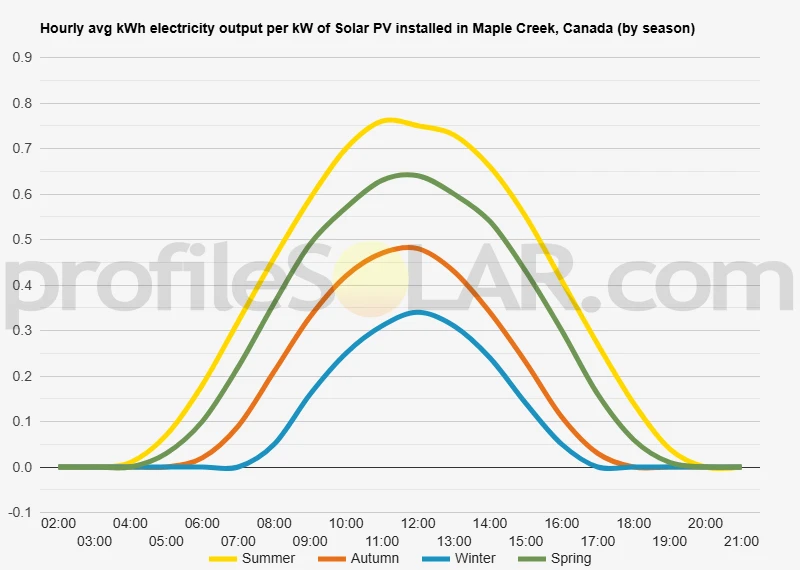

Solar output per kW of installed solar PV by season in Maple Creek

Seasonal solar PV output for Latitude: 49.9072, Longitude: -109.4931 (Maple Creek, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Maple Creek, Canada

To maximize your solar PV system's energy output in Maple Creek, Canada (Lat/Long 49.9072, -109.4931) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Maple Creek, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Maple Creek, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	53° South in Autumn	63° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Maple Creek, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Maple Creek, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Maple Creek, Canada

Topographical Features of the Maple Creek Region

Maple Creek sits in the heart of the Great Plains of southwestern Saskatchewan, where the landscape is characterized by gently rolling prairie terrain. The region features broad, sweeping grasslands with subtle elevation changes that create a naturally undulating countryside. The topography here is part of the larger mixed grassland ecoregion, where the land gradually transitions from the higher elevations of the Cypress Hills to the south toward the flatter agricultural plains extending northward.

The area around Maple Creek displays typical prairie characteristics with wide valleys carved by ancient glacial activity and seasonal waterways. The Maple Creek itself meanders through the landscape, creating shallow valley systems that add gentle variation to an otherwise expansive flatland environment. These valleys are typically broad and shallow rather than steep or deeply incised, maintaining the region's overall accessibility and openness.

To the immediate south, the terrain begins its gradual rise toward the Cypress Hills, which represent a significant topographical feature in this otherwise relatively flat region. This transition zone creates interesting microtopography with slightly more pronounced hills and valleys, though still maintaining the generally gentle character typical of prairie landscapes.

Optimal Areas for Large-Scale Solar Development

The expansive flat to gently rolling terrain surrounding Maple Creek presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie on the broad plateau sections north and east of the community, where the land maintains consistent gentle slopes and minimal topographical obstacles. These areas offer the advantage of requiring minimal site preparation while providing stable, well-drained ground conditions.

The prairie benchlands extending westward from Maple Creek also present prime development potential. These elevated flat areas provide excellent drainage characteristics and are typically removed from active agricultural operations, making them available for alternative land uses. The consistent elevation and minimal shading from topographical features make these locations particularly attractive for solar development.

Areas along the broader valley floors, particularly those associated with seasonal drainage patterns, offer additional opportunities where the terrain remains relatively flat but provides natural boundaries for project development. These locations benefit from being slightly lower in elevation while maintaining the gentle slopes necessary for effective solar panel positioning and maintenance access.

The transition zones leading toward the Cypress Hills, while slightly more varied in elevation, still contain numerous suitable sites where the topography remains manageable for large-scale installation. These areas often provide the additional benefit of being situated on well-drained slopes that face favorable directions for solar collection while maintaining accessibility for construction and ongoing maintenance operations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
