Meaford, Ontario, Canada presents a moderately challenging location for year-round solar PV energy generation, with significant seasonal variations that are typical of its Northern Temperate Zone climate at coordinates 44.6067, -80.5764.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 6.10 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best season with 5.21 kWh per day per kW, offering excellent energy production as daylight hours increase and solar angles improve. Autumn sees a notable decline to 2.87 kWh per day per kW as the sun's angle decreases and weather patterns change. Winter presents the most challenging conditions with only 1.68 kWh per day per kW, representing less than 28% of summer production levels.

Optimal Installation Configuration

For maximum year-round energy production at Meaford, Ontario, solar panels should be installed at a fixed tilt angle of 38 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's varying elevation throughout the year and weighting these angles based on solar irradiance data.

Local Environmental Challenges

Several environmental and weather factors at this location can significantly impact solar energy production:

• Heavy snow accumulation during winter months can completely block solar panels
• Ice formation creates both shading and potential structural stress on panel systems
• Lake-effect weather patterns from nearby Georgian Bay can increase cloud cover and precipitation
• High humidity levels may promote faster accumulation of dirt and debris on panel surfaces

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered. Panels should be mounted with adequate spacing from roof surfaces to promote air circulation and natural snow shedding. The recommended 38-degree tilt angle actually helps with snow removal, as steeper angles encourage snow to slide off more readily. Installing panels with smooth, high-quality glass surfaces reduces snow and ice adhesion. Heating elements or snow removal systems may be cost-effective for larger installations, though the energy trade-off should be carefully calculated given the low winter production rates. Regular cleaning schedules become particularly important due to the humid climate, and accessible mounting systems should be prioritized to facilitate maintenance. Robust structural support is essential to handle ice loading, and electrical systems should include cold-weather rated components to maintain performance during temperature extremes. While Meaford's location presents seasonal challenges typical of northern climates, proper installation techniques can help maximize the substantial energy production available during the peak spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

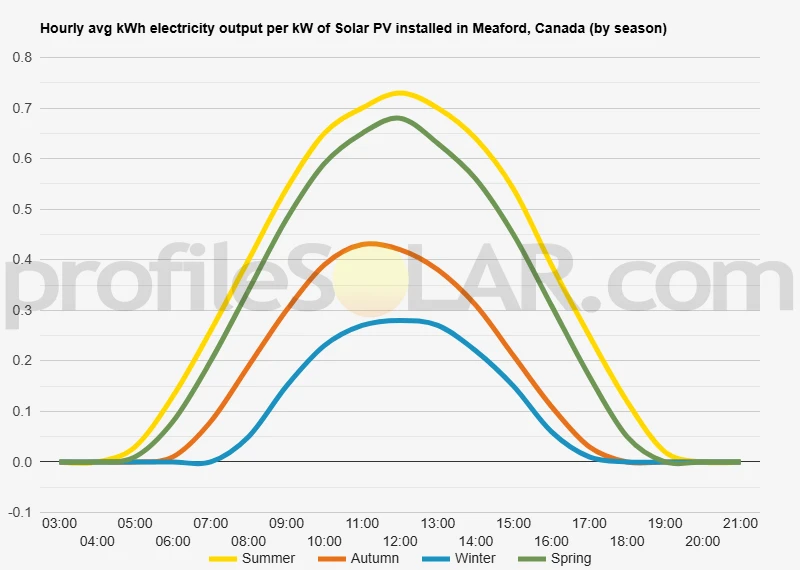

Solar output per kW of installed solar PV by season in Meaford

Seasonal solar PV output for Latitude: 44.6067, Longitude: -80.5764 (Meaford, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in Meaford, Canada

To maximize your solar PV system's energy output in Meaford, Canada (Lat/Long 44.6067, -80.5764) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Meaford, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Meaford, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	48° South in Autumn	58° South in Winter	37° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Meaford, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Meaford, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Meaford, Canada

Topographical Features Around Meaford

Meaford sits along the southern shore of Georgian Bay in Ontario, positioned within the distinctive landscape of the Niagara Escarpment region. The town itself occupies relatively flat terrain near the waterfront, but the surrounding area features dramatically varied topography that creates both opportunities and challenges for large-scale development projects.

The most prominent geographical feature in the region is the Niagara Escarpment, a UNESCO World Biosphere Reserve that runs through the area in a roughly east-west direction. This ancient limestone cliff face rises approximately 200 meters above the surrounding lowlands, creating steep slopes and rocky outcroppings that dominate the southern portions of the municipal area. The escarpment's dramatic elevation changes and forested slopes make these areas generally unsuitable for large-scale solar installations.

North of the escarpment and extending toward Georgian Bay, the landscape transitions into gently rolling agricultural land interspersed with woodlots and small watercourses. This area features predominantly clay and sandy loam soils that support productive farming operations, with field sizes typically ranging from moderate to large. The terrain in these agricultural zones exhibits gentle slopes that rarely exceed five degrees, making them potentially suitable for solar development from a topographical perspective.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Meaford lie in the agricultural belt between the town and the base of the Niagara Escarpment. This zone offers several advantages including relatively flat terrain, minimal tree cover, and existing cleared land that would require less preparation for solar panel installation.

The areas immediately southwest and southeast of Meaford present particularly favorable conditions. These locations feature large, open fields with gentle south-facing slopes that would optimize solar panel orientation. The terrain in these areas consists primarily of former lake bottom sediments, creating stable ground conditions with good drainage characteristics essential for solar infrastructure.

East of Meaford, toward the communities of Thornbury and Clarksburg, additional suitable areas exist where the landscape remains relatively flat and agricultural use has created large open spaces. However, development in these areas would need to consider the higher population density and existing residential development patterns.

The areas immediately adjacent to Georgian Bay, while topographically suitable due to their flat nature, may face additional considerations related to shoreline regulations and environmental sensitivity. The transition zone between the agricultural lands and the escarpment base offers some potential, though developers would need to carefully evaluate slope angles and soil stability on a site-specific basis.

Areas to avoid for large-scale solar development include the steep slopes of the Niagara Escarpment itself, heavily forested regions, and the numerous small valleys and ravines that cut through the landscape. These locations present significant challenges for construction access, panel installation, and ongoing maintenance operations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
