Solar Energy Potential in Mine Centre, Canada

Mine Centre, located in Ontario, Canada, experiences varying levels of solar energy potential throughout the year. This location in the Northern Temperate Zone sees significant seasonal fluctuations in solar electricity output. Summer proves to be the most productive season for solar energy generation in Mine Centre, with an average daily output of 6.29 kWh per kW of installed solar capacity. Spring follows closely behind, yielding 5.33 kWh per day. These seasons offer the best opportunities for maximizing solar energy production due to longer daylight hours and more direct sunlight. Autumn sees a considerable decrease in solar output, dropping to 2.74 kWh per day. Winter presents the greatest challenge for solar energy generation, with daily production falling to just 1.78 kWh. This significant reduction is due to shorter days, lower sun angles, and potentially increased cloud cover during the colder months.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Mine Centre, fixed solar panels should be installed at a tilt angle of 42 degrees facing south. This optimal angle takes into account the location's latitude and seasonal variations in sun position, ensuring the best possible exposure to sunlight throughout the year.

Environmental and Weather Considerations

Several factors can impact solar energy production in Mine Centre: 1. Snow accumulation: The region experiences significant snowfall during winter months, which can cover solar panels and reduce their efficiency. Regular panel cleaning and the use of snow-shedding systems can help mitigate this issue. 2. Cloud cover: Mine Centre has an average of 158 cloudy days per year, which can decrease solar output. Utilizing high-efficiency panels and microinverters can help maximize energy production even under less-than-ideal conditions. 3. Temperature extremes: While cold temperatures can actually improve solar panel efficiency, extreme cold can potentially damage equipment. Choosing panels and components rated for harsh winter conditions is essential for long-term performance and durability. To address these challenges, installing panels at a steeper angle can help shed snow more easily. Additionally, using bifacial panels can take advantage of reflected light from snow-covered surfaces, potentially increasing winter energy production. Implementing a robust monitoring system can also help quickly identify and address any issues affecting solar output. While Mine Centre's location presents some challenges for year-round solar energy production, proper system design and maintenance can still make solar PV a viable renewable energy option for this area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

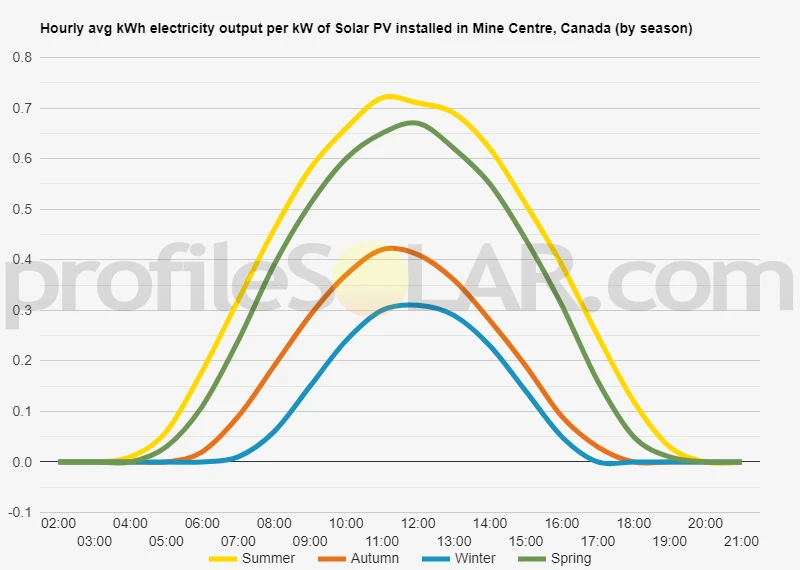

Solar output per kW of installed solar PV by season in Mine Centre

Seasonal solar PV output for Latitude: 48.7766, Longitude: -92.6149 (Mine Centre, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Mine Centre, Canada

To maximize your solar PV system's energy output in Mine Centre, Canada (Lat/Long 48.7766, -92.6149) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mine Centre, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mine Centre, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	52° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mine Centre, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mine Centre, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mine Centre, Canada

The area around Mine Centre, Canada, located at latitude 48.7766 and longitude -92.6149, is characterized by a diverse and rugged topography typical of the Canadian Shield. This region is part of the Rainy River District in northwestern Ontario, known for its varied landscape of forests, lakes, and rocky outcrops.

The terrain in this area is generally undulating, with numerous small hills and valleys. The landscape is dotted with countless lakes, ponds, and wetlands, remnants of the last ice age when glaciers carved out the land. The bedrock is often exposed, creating rocky outcrops and cliffs in some areas. Dense boreal forests cover much of the land, consisting primarily of coniferous trees like spruce and pine, interspersed with deciduous species such as birch and poplar.

The topography around Mine Centre is influenced by its location within the Canadian Shield, one of the world's oldest geological formations. This ancient bedrock creates a landscape of low to moderate elevation changes, with occasional steep slopes and ridges. The area's elevation typically ranges from about 340 to 400 meters above sea level, with some higher points reaching up to 450 meters.

Regarding areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, there are several factors to consider. Ideal locations for solar farms typically require relatively flat or gently sloping land with good sun exposure. In the context of Mine Centre's topography, the following areas might be more suitable:

1. Cleared areas or former logging sites: These open spaces would have fewer obstructions to sunlight and may require less site preparation.
2. South-facing slopes: Gentle hills with a southern exposure would receive more direct sunlight throughout the day, increasing solar panel efficiency.
3. Areas near existing power infrastructure: While not directly related to topography, proximity to power lines or substations would be advantageous for connecting to the grid.
4. Elevated plateaus: If present, these areas might offer good sun exposure and potentially fewer issues with morning or evening shading from surrounding terrain.

However, it's important to note that the dense forest cover and numerous water bodies in the region may limit the availability of large, continuous areas suitable for solar farms. Any development would need to carefully consider environmental impacts, including forest clearing and potential effects on local ecosystems. Additionally, detailed site-specific surveys would be necessary to determine the most appropriate locations for solar PV installations in this topographically complex area.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
