Miramichi, New Brunswick, Canada, located in the Northern Temperate Zone at coordinates 47.1942, -65.9381, presents a mixed picture for year-round solar energy generation, with significant seasonal variations that make it moderately suitable for solar PV installations.

Seasonal Solar Performance

The location shows strong seasonal contrasts in solar energy production. Summer delivers the highest output at 5.95 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 4.72 kWh per day per kW, providing solid energy production during the transitional months. Autumn sees a notable decline to 2.60 kWh per day per kW, while winter presents the most challenging conditions with only 1.58 kWh per day per kW. This represents nearly a four-fold difference between peak summer and winter production, which is typical for northern temperate locations but requires careful planning for year-round energy needs.

Optimal Installation Configuration

For fixed panel installations at Miramichi, New Brunswick, the ideal tilt angle is 40 degrees facing south to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles throughout the year, determining optimal panel positioning, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit.

Local Environmental Challenges

Several environmental and weather factors in Miramichi can significantly impact solar energy production and require specific mitigation strategies:

• Snow accumulation: Heavy winter snowfall can completely block solar panels, eliminating energy production for extended periods
• Ice formation: Freezing rain and ice storms common in maritime climates can coat panels and reduce efficiency
• Coastal weather patterns: Being near the Atlantic coast, Miramichi experiences frequent fog, overcast conditions, and maritime storms that reduce solar irradiance
• Salt air corrosion: Proximity to the ocean introduces salt-laden air that can corrode mounting hardware and electrical connections over time

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented. Installing panels at the optimal 40-degree tilt helps snow slide off naturally, while using marine-grade mounting hardware and electrical components provides better resistance to salt air corrosion. Regular maintenance scheduling becomes crucial, particularly for snow removal during winter months and cleaning salt residue from panels and connections. Installing monitoring systems allows for quick identification of performance issues caused by weather-related obstructions. Consider designing systems with higher capacity factors to compensate for seasonal variations, and ensure adequate battery storage or grid-tie arrangements to manage the significant difference between summer abundance and winter scarcity of solar energy production.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

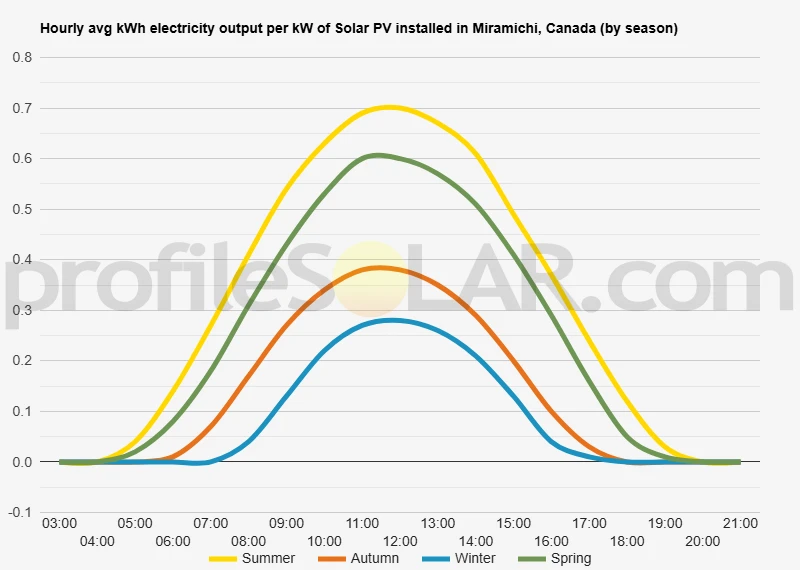

Solar output per kW of installed solar PV by season in Miramichi

Seasonal solar PV output for Latitude: 47.1942, Longitude: -65.9381 (Miramichi, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Miramichi, Canada

To maximize your solar PV system's energy output in Miramichi, Canada (Lat/Long 47.1942, -65.9381) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Miramichi, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Miramichi, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	51° South in Autumn	61° South in Winter	39° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Miramichi, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Miramichi, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Miramichi, Canada

Topography of the Miramichi Region

The Miramichi area of New Brunswick sits within the gently rolling landscape characteristic of the Maritime provinces. This region features relatively low elevation terrain, with most areas ranging from sea level along the Miramichi River and its tributaries up to modest hills that rarely exceed 200 meters in height. The topography is dominated by the extensive Miramichi River system, which creates broad valleys and floodplains that stretch inland from the Miramichi Bay. The landscape around Miramichi consists primarily of mixed forest cover interspersed with cleared agricultural lands, residential areas, and industrial zones. The terrain is generally flat to gently undulating, shaped by glacial activity during the last ice age. This glacial influence left behind a mixture of sandy soils, clay deposits, and areas of exposed bedrock, creating a varied but relatively subdued topographical profile. Moving inland from the river system, the land gradually rises into low hills and ridges that form part of the broader Appalachian mountain system's northernmost extensions. These elevations are modest and create a series of gentle slopes and plateaus rather than steep mountainous terrain. The area is well-drained by numerous streams and small rivers that flow into the main Miramichi River system.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Miramichi would be the cleared agricultural lands and open fields that dot the river valleys and lower elevation areas. These locations offer the dual advantages of relatively flat terrain that minimizes grading and construction costs, along with existing cleared land that reduces environmental impact and development expenses. The gently sloping hillsides facing south and southwest present excellent opportunities for solar development, as these orientations maximize exposure to direct sunlight throughout the day. Many of these slopes have been previously cleared for agriculture or forestry operations, making them readily accessible for solar installation while avoiding the need for extensive forest clearing. Former agricultural areas and abandoned farmland in the region represent particularly attractive sites for solar development. These locations typically feature good road access, proximity to existing electrical infrastructure, and soil conditions that can support solar mounting systems without extensive site preparation. The relatively stable clay and sandy soils common in much of the Miramichi valley provide adequate foundation conditions for solar arrays. Areas near existing electrical transmission lines and substations would be especially valuable for large-scale solar development, as they minimize the infrastructure investment required to connect solar facilities to the electrical grid. The industrial zones around Miramichi often have this type of electrical infrastructure already in place, along with suitable flat or gently sloping terrain. The elevated plateaus and ridgelines in the area, while requiring more careful site planning due to their exposure to wind, can offer excellent solar potential when properly oriented. These locations are often above the tree line or have been previously cleared, providing unobstructed access to sunlight without the shading concerns that might affect lower-lying areas surrounded by forest.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
