The location of Mission, British Columbia, Canada, situated at latitude 49.2528 and longitude -122.3574, presents a mixed picture for year-round solar energy generation via photovoltaic (PV) systems. This Northern Temperate Zone location experiences significant seasonal variations in solar energy production, which impact the overall efficiency of solar installations.

Seasonal Solar Production

Solar energy generation in Mission varies dramatically across the seasons. Summer stands out as the most productive period, with an impressive daily output of 6.67 kWh per kW of installed solar capacity. Spring follows as the second-most productive season, yielding 4.67 kWh per day. However, the colder months see a substantial drop in energy production, with autumn generating 2.08 kWh per day and winter producing a mere 1.21 kWh daily.

These figures highlight the stark contrast between the warm and cold seasons, with summer producing more than five times the energy of winter. This disparity underscores the challenges of relying solely on solar power throughout the year in Mission.

Optimal Panel Positioning

To maximize year-round solar energy production in Mission, British Columbia, fixed solar panels should be installed at a tilt angle of 40 degrees facing south. This orientation helps optimize the panels' exposure to sunlight throughout the year, balancing the low winter sun angle with the higher summer sun position.

Environmental and Weather Considerations

Several factors can impede solar production in Mission:

1. Cloud cover: The region experiences significant cloud cover, particularly during fall and winter months, reducing solar irradiance.
2. Rainfall: Mission receives substantial rainfall, which can temporarily reduce panel efficiency.
3. Snow accumulation: Winter snowfall can cover panels, blocking sunlight and decreasing energy production.

To mitigate these challenges, consider the following preventative measures:

• Install panels at a steeper angle to promote snow sliding off
• Use high-efficiency panels designed for low-light conditions
• Implement regular cleaning and maintenance schedules
• Consider a ground-mounted system for easier access and cleaning

While Mission's location presents some challenges for year-round solar energy production, proper system design and maintenance can help maximize energy generation, particularly during the more productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

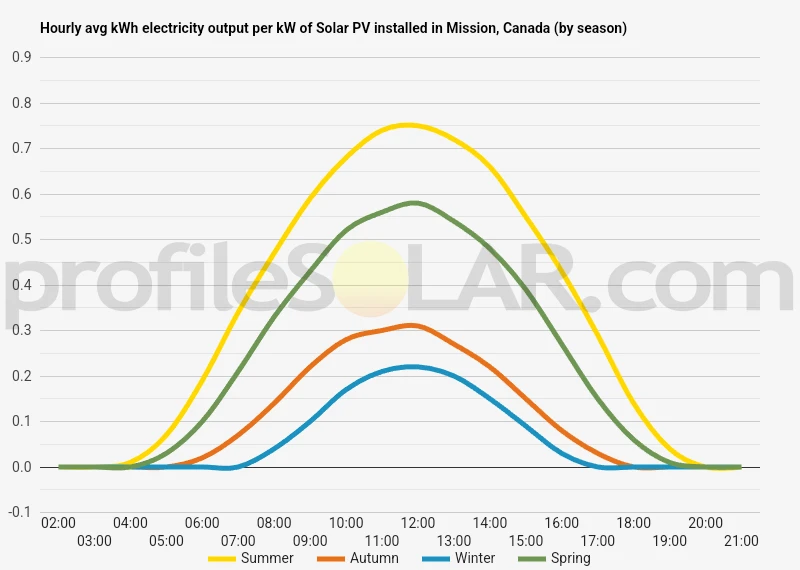

Solar output per kW of installed solar PV by season in Mission

Seasonal solar PV output for Latitude: 49.2528, Longitude: -122.3574 (Mission, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 6.67kWh/day in Summer.

Average 2.08kWh/day in Autumn.

Average 1.21kWh/day in Winter.

Average 4.67kWh/day in Spring.

Ideally tilt fixed solar panels 40° South in Mission, Canada

To maximize your solar PV system's energy output in Mission, Canada (Lat/Long 49.2528, -122.3574) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 49.2528, Longitude: -122.3574, the ideal angle to tilt panels is 40° South

Seasonally adjusted solar panel tilt angles for Mission, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mission, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mission, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mission, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mission, Canada

The topography around Mission, Canada, located at latitude 49.2528 and longitude -122.3574, is characterized by a diverse landscape. Mission is situated in the Lower Mainland region of British Columbia, nestled between the Coast Mountains to the north and the Fraser River to the south.

The area features a mix of flat river valleys and rolling hills, with some steeper mountainous terrain as you move further north. The city itself is built on a series of terraces that rise from the Fraser River, creating a gentle slope from south to north. The southern part of Mission, closest to the river, is relatively flat and low-lying, while the northern sections become more elevated and hilly.

To the east and west of Mission, you'll find a combination of agricultural lands in the flatter areas near the river, transitioning to more forested and rugged terrain as you move away from the valley floor. The landscape is dotted with numerous creeks and small rivers that flow southward into the Fraser River, creating some localized variations in the topography.

When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, there are a few factors to consider. The ideal locations would have relatively flat or gently sloping terrain, good sun exposure, and minimal shading from surrounding mountains or forests.

Based on these criteria, the most suitable areas for large-scale solar PV near Mission would likely be:

1. The agricultural lands in the Fraser Valley to the south and southeast of Mission. These areas are generally flat, open, and receive good sunlight throughout the day.
2. Some of the more gently sloping hillsides to the north and northeast of Mission, provided they have a southern exposure and are not heavily forested.
3. Former industrial or commercial sites within Mission or nearby communities that offer large, flat areas with minimal shading.

It's important to note that while these areas may be topographically suitable, other factors such as land ownership, zoning regulations, and environmental considerations would also need to be taken into account when planning any large-scale solar PV projects in the region.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

Some provinces offer grants or low-interest loans for renewable energy projects.

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

Some cities offer additional incentives or property tax reductions for solar installations.

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
