New Hamburg, Ontario, Canada, located at latitude 43.4001 and longitude -80.6497 in the Northern Temperate Zone, presents a moderately favorable location for year-round solar photovoltaic energy generation, though with significant seasonal variations typical of its continental climate.

Seasonal Solar Production Patterns

The solar energy output at this location shows dramatic seasonal swings. Summer delivers the strongest performance at 6.26 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best season with 5.30 kWh per day per kW, offering excellent production as daylight hours increase and temperatures remain moderate. Autumn sees a notable decline to 2.97 kWh per day per kW as the sun angle decreases and cloud cover typically increases. Winter presents the greatest challenge, dropping to just 1.81 kWh per day per kW of installed capacity, reflecting the harsh reality of northern temperate zone solar generation during the coldest months.

Optimal Panel Configuration

For maximum year-round energy production at New Hamburg, Ontario, solar panels should be installed at a fixed tilt angle of 37 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's varying elevation throughout the year and weighting for actual solar irradiance potential at this latitude.

Local Environmental Challenges

Several environmental and weather factors at this location can significantly impact solar production and require careful consideration during installation:

• Snow accumulation: Winter snow can completely block panels, eliminating production for extended periods
• Ice formation: Freezing rain and ice storms common to this region can coat panels and reduce efficiency
• Temperature effects: Extreme cold can actually improve panel efficiency, but hot summers may reduce it
• Seasonal cloud cover: Increased cloudiness during autumn and winter months further reduces already limited production

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective:

• Steeper tilt angles: While 37 degrees is optimal for annual production, slightly steeper angles can help snow slide off more easily
• Anti-reflective coatings: Specialized panel surfaces can reduce ice adhesion and improve light transmission
• Proper spacing: Adequate clearance around panels allows for snow removal access and prevents shading from accumulated snow
• Heating elements: Some installations include low-power heating strips along panel edges to prevent ice formation
• Quality mounting systems: Robust mounting designed for snow loads and wind typical of the region

Overall, while New Hamburg experiences excellent solar production during spring and summer months, the winter performance limitations and weather-related challenges require thoughtful system design and potentially higher installed capacity to meet year-round energy needs.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

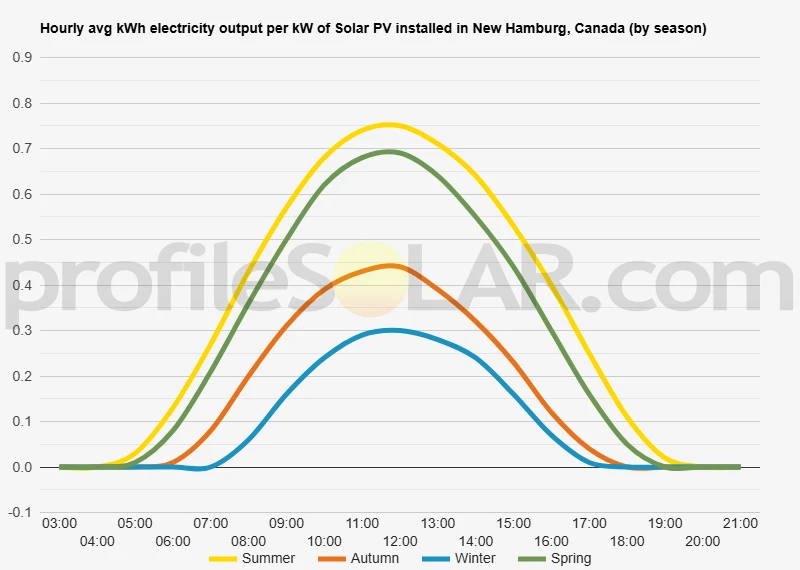

Solar output per kW of installed solar PV by season in New Hamburg

Seasonal solar PV output for Latitude: 43.4001, Longitude: -80.6497 (New Hamburg, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in New Hamburg, Canada

To maximize your solar PV system's energy output in New Hamburg, Canada (Lat/Long 43.4001, -80.6497) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for New Hamburg, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in New Hamburg, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	46° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in New Hamburg, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in New Hamburg, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around New Hamburg, Canada

New Hamburg sits in the heart of southwestern Ontario's gently rolling agricultural landscape, approximately 20 kilometers west of Kitchener-Waterloo. The topography in this region is characterized by relatively flat to gently undulating terrain, with elevations typically ranging between 300 and 400 meters above sea level. This area forms part of the broader Waterloo Region, which was shaped by glacial activity during the last ice age, leaving behind fertile soils and a predominantly level landscape that has made it ideal for farming.

The immediate surroundings of New Hamburg feature a mix of agricultural fields, woodlots, and small residential areas. The terrain slopes very gradually, with no significant hills or steep inclines that would create major obstacles for large-scale development projects. The Nith River meanders through the area, creating some minor topographical variation, but the overall landscape remains quite manageable for construction and infrastructure development.

Optimal Areas for Solar Development

The most suitable locations for large-scale solar photovoltaic installations around New Hamburg would be the expansive agricultural fields that dominate the landscape to the north, east, and south of the community. These areas offer several key advantages including relatively flat terrain that minimizes grading requirements, good accessibility via existing rural road networks, and proximity to electrical transmission infrastructure.

The farmland stretching eastward toward Baden and northward toward Wellesley presents particularly attractive opportunities. These areas feature large, open fields with minimal tree coverage and excellent southern exposure. The gentle southward slopes in many of these agricultural areas would actually enhance solar panel performance by optimizing the angle of solar collection throughout the day.

Areas immediately west of New Hamburg, while also agriculturally productive, tend to have slightly more rolling terrain and greater tree coverage along property boundaries. However, many of these locations would still be viable for solar development with appropriate site preparation. The key consideration in this western direction would be ensuring adequate spacing between installations and existing woodlots to minimize shading impacts.

Infrastructure Considerations

The region benefits from well-established rural road networks that would facilitate construction access and ongoing maintenance of solar installations. Highway 7/8 runs nearby to the north, providing excellent transportation links, while numerous concession roads create a grid pattern that offers multiple access points to potential development sites.

The relatively stable geology of the area, consisting primarily of glacial till and clay deposits, provides good foundation conditions for solar mounting systems. Drainage is generally adequate across most of the agricultural areas, though some lower-lying fields near waterways might require additional consideration during wet seasons.

The proximity to existing electrical infrastructure, including distribution lines serving the rural agricultural community and transmission corridors connecting to larger urban centers, makes this region particularly attractive for utility-scale solar development. The flat topography simplifies the routing of electrical connections between solar arrays and existing grid infrastructure.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
