Solar PV Analysis of New Westminster, Canada
New Westminster, British Columbia, Canada (latitude: 49.1906, longitude: -122.9344) is a suitable location for solar PV energy generation due to its position in the Northern Temperate Zone. The average kWh per day per kW of installed solar power varies across seasons: it generates 6.67 kWh in summer, 4.67 kWh in spring, 2.08 kWh in autumn, and 1.21 kWh in winter. The higher production during summer months can be attributed to increased sunlight hours at this latitude.
However, weather conditions such as rain or snow may impact solar power generation during certain times of the year; therefore, it is crucial to take these factors into account when planning for solar energy production at this location.
For optimal performance of a fixed panel installation at this site, panels should be tilted at an angle of 40 degrees facing southward to maximize exposure to sunlight throughout the year.
It's important to note that local environmental factors and topography could potentially hinder solar production at this location if they are significant enough – such as excessive shading from nearby buildings or trees or frequent cloud cover obstructing sunlight penetration on the panels.
To ensure greater energy production and mitigate these potential issues when installing solar systems here:
1) Conduct thorough site assessments before installation – identify any obstructions that may cast shadows on panels and consider ways to minimize their impact.
2) Regularly clean and maintain your system – removing accumulated dirt or debris from your panels can help improve efficiency.
3) Monitor weather patterns – understanding seasonal fluctuations can help you better plan for any potential dips in energy production due to adverse weather conditions.
By considering these preventative measures during installation and ongoing maintenance processes, you can optimize your system's performance despite potential challenges posed by local environmental factors unique to New Westminster's climate and geography.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Canada by location

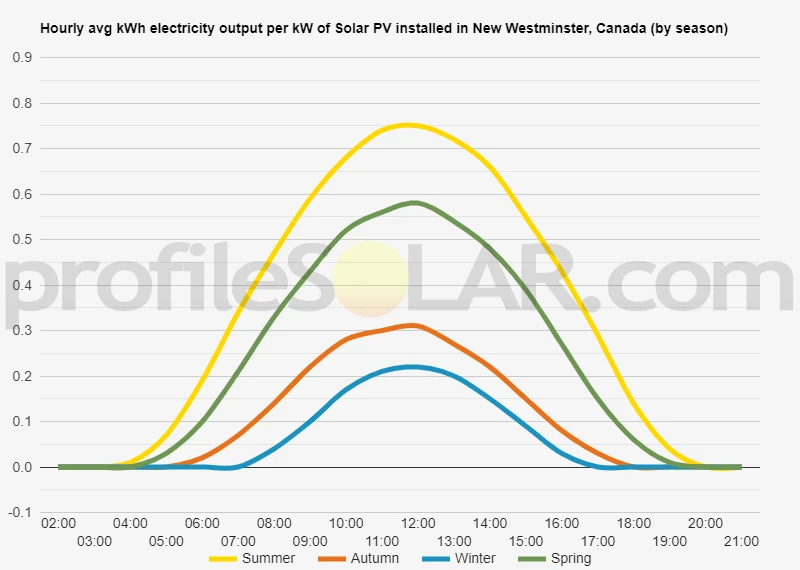

Solar output per kW of installed solar PV by season in New Westminster
Seasonal solar PV output for Latitude: 49.1906, Longitude: -122.9344 (New Westminster, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 40° South in New Westminster, Canada
To maximize your solar PV system's energy output in New Westminster, Canada (Lat/Long 49.1906, -122.9344) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for New Westminster, Canada
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in New Westminster, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 32° South in Summer | 52° South in Autumn | 63° South in Winter | 41° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in New Westminster, Canada
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in New Westminster, Canada.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around New Westminster, Canada
The topography around New Westminster, Canada is generally flat with some rolling hills. Areas to the south and east of the city are most suited for large-scale solar PV installations due to their flat terrain and ample sunlight. Additionally, these areas have very little tree cover which would otherwise shade the solar panels and reduce their efficiency.
Canada solar PV Stats as a country
Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Canada?
There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:
1. Federal Tax Incentives:- Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.
- Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
- Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
- British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
- Nova Scotia: Solar Electricity for Community Buildings Program.
Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.
4. Grants and Loans:Some provinces offer grants or low-interest loans for renewable energy projects.
5. Carbon Pricing:The federal carbon pricing system can make solar more competitive compared to fossil fuels.
6. Municipal Incentives:Some cities offer additional incentives or property tax reductions for solar installations.
7. Reduced Operating Costs:While not a direct incentive, businesses can significantly reduce their long-term energy costs.
Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
