Nipigon, Canada presents significant challenges for year-round solar energy generation due to its northern location in the Northern Temperate Zone. The dramatic seasonal variation in solar output makes this location far from ideal for consistent solar power production throughout the year.

Seasonal Solar Performance

The solar energy output at Nipigon varies dramatically across the seasons. Summer provides the best conditions with 6.00kWh per day per kW of installed solar capacity, making it a reasonably productive time for solar generation. Spring follows as the second-best season with 4.83kWh per day per kW, offering good solar potential as daylight hours increase and the sun climbs higher in the sky. Autumn sees a significant drop in production to 2.45kWh per day per kW as the sun angle decreases and weather conditions deteriorate. Winter presents the most challenging conditions with only 1.49kWh per day per kW, representing less than 25% of summer production levels.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal tilt angle is 41 degrees facing south to maximize total year-round solar production. This angle is calculated to optimize energy capture across all seasons while accounting for the sun's varying position throughout the year.

Environmental and Weather Challenges

Several significant local factors can impede solar production at Nipigon:

• Heavy snow accumulation during the long winter months can completely block solar panels
• Ice formation on panel surfaces reduces light transmission and energy output
• Frequent cloud cover and overcast skies, particularly common in northern Ontario's climate
• Extreme cold temperatures can affect equipment performance and battery efficiency
• Strong winds and ice storms that can damage mounting systems

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels at steeper angles (potentially beyond the optimal 41 degrees) to encourage snow shedding
• Use mounting systems that allow for easy manual snow removal or invest in heated panel systems
• Choose high-quality panels rated for extreme cold weather conditions
• Install robust mounting systems designed to withstand heavy snow loads and ice storms
• Consider battery storage systems with cold-weather protection to store summer excess for winter use
• Implement regular maintenance schedules for snow and ice removal during winter months

Overall Assessment

While Nipigon can generate reasonable solar energy during summer and spring months, the location is not ideal for year-round solar production. The extreme seasonal variation means that any solar installation would need to be significantly oversized for summer production to compensate for the minimal winter output, or rely heavily on alternative energy sources during the colder months. The challenging weather conditions also require additional investment in specialized equipment and maintenance to ensure reliable operation.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

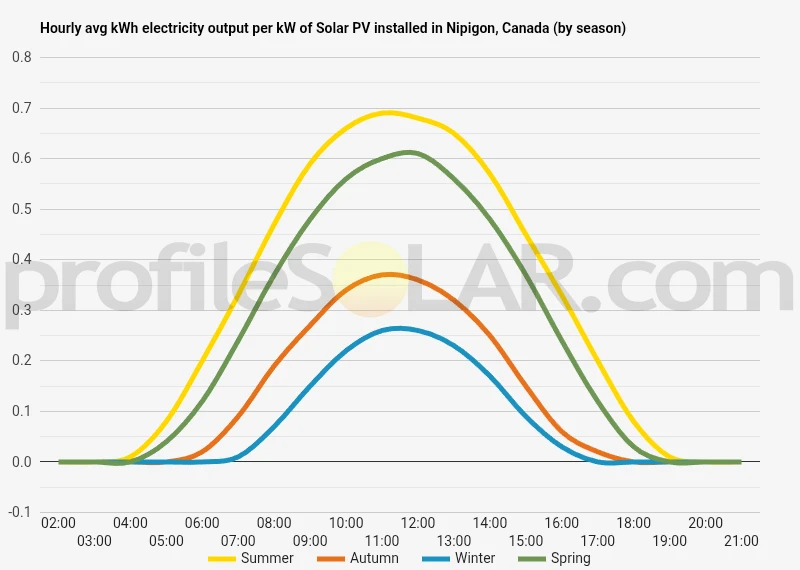

Solar output per kW of installed solar PV by season in Nipigon

Seasonal solar PV output for Latitude: 49.0153, Longitude: -88.2518 (Nipigon, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Nipigon, Canada

To maximize your solar PV system's energy output in Nipigon, Canada (Lat/Long 49.0153, -88.2518) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nipigon, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nipigon, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	52° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nipigon, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nipigon, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nipigon, Canada

Topographical Features Around Nipigon

The landscape surrounding Nipigon, Ontario presents a classic example of the Canadian Shield terrain that characterizes much of northwestern Ontario. This ancient geological formation creates a distinctive topography marked by exposed bedrock, rolling hills, and numerous water bodies. The area sits at an elevation of approximately 200 meters above sea level, positioned along the northern shore of Lake Superior, which significantly influences the local geography.

The terrain around Nipigon features a mix of forested uplands and wetland areas, with the Canadian Shield's characteristic granite and gneiss bedrock frequently visible at the surface. The landscape is punctuated by numerous lakes, rivers, and streams, including the notable Nipigon River system. Dense boreal forest covers much of the region, consisting primarily of spruce, fir, pine, and birch trees. The topography shows evidence of glacial activity, with smoothed rock outcrops, scattered boulders, and areas of thin soil cover over bedrock.

The immediate vicinity of Nipigon includes both flat to gently rolling areas and more rugged terrain with steeper slopes and rocky outcrops. Wetlands and marshy areas are common, particularly in lower-lying regions where drainage is poor. The proximity to Lake Superior creates some localized variations in elevation as the land gradually slopes toward the massive freshwater lake.

Optimal Areas for Large-Scale Solar Development

For large-scale solar photovoltaic installations around Nipigon, the most suitable locations would be the relatively flat to gently sloping areas with minimal tree cover and adequate soil depth for foundation work. The best candidates are likely to be found in cleared agricultural areas, abandoned farmland, or previously disturbed industrial sites where the natural forest cover has already been removed.

Areas with southern-facing slopes would be particularly advantageous for solar installations, as they can maximize exposure to sunlight throughout the day. The region's numerous clearings and open spaces, whether natural or human-made, present opportunities for development without the significant expense of forest clearing. Former logging areas that have not yet regenerated dense forest cover could also provide suitable sites.

The proximity to existing electrical infrastructure, including transmission lines serving the local community and industrial facilities, would be another crucial factor in site selection. Areas near Highway 11 or other major transportation routes would offer advantages for construction access and ongoing maintenance operations.

Sites with good drainage characteristics would be essential, given the region's significant precipitation and the presence of numerous wetland areas. Elevated locations with bedrock relatively close to the surface might actually prove advantageous for solar installations, as they typically offer better drainage and more stable foundations, despite potentially higher initial construction costs for rock anchoring systems.

The challenge in this region would be finding sufficiently large contiguous areas of suitable terrain, as the natural topography tends to create a patchwork of different land types. However, strategic site selection focusing on the flatter, well-drained areas with existing clearings could identify viable locations for substantial solar development projects.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
