North Bay, Ontario, Canada, situated in the Northern Temperate Zone, presents a mixed landscape for solar energy generation throughout the year. The city experiences significant seasonal variations in solar potential, which directly impacts the effectiveness of solar photovoltaic (PV) systems.

Seasonal Solar Production

Summer stands out as the prime season for solar energy production in North Bay, Ontario, with an impressive average of 5.84 kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind, generating 5.07 kWh daily. These seasons offer extended daylight hours and more direct sunlight, making them ideal for maximizing solar output.

In contrast, autumn and winter present challenges for solar energy generation. Autumn sees a significant drop to 2.69 kWh per day, while winter production plummets to a mere 1.75 kWh daily. This stark reduction is due to shorter days, lower sun angles, and increased cloud cover typical of these seasons in North Bay.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in North Bay, Ontario, fixed solar panels should be installed at a tilt angle of 40 degrees facing south. This optimal angle helps capture the most sunlight throughout the year, balancing the high summer sun with the lower winter sun angle.

Environmental and Weather Considerations

Several factors can impede solar production in North Bay:

• Snow accumulation in winter can significantly reduce panel efficiency
• Frequent cloud cover, especially in autumn and winter, can diminish solar output

To mitigate these issues, consider installing panels at a steeper angle to promote snow sliding off. Additionally, using high-efficiency panels and incorporating snow removal techniques can help maintain production during winter months. Regular cleaning and maintenance are crucial to ensure optimal performance year-round.

While North Bay's location presents challenges for consistent solar energy production throughout the year, proper installation techniques and maintenance can still make solar PV systems a viable renewable energy option for the area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

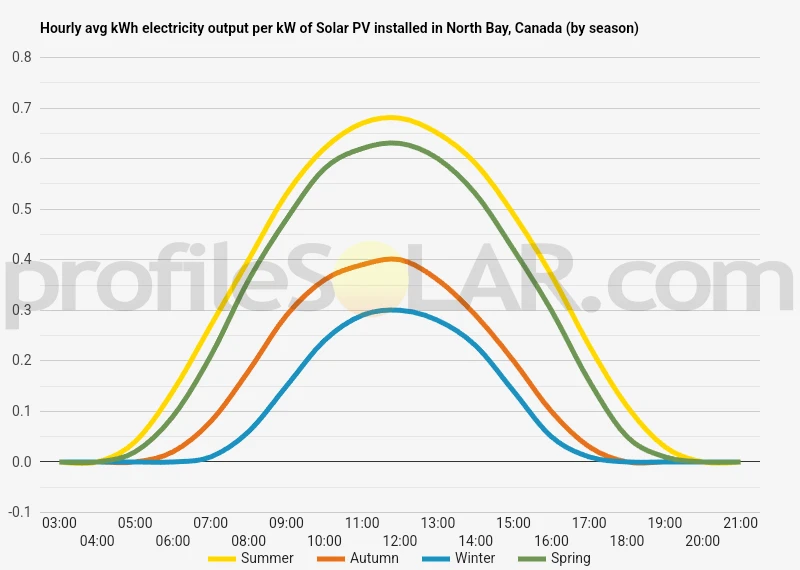

Solar output per kW of installed solar PV by season in North Bay

Seasonal solar PV output for Latitude: 46.2801, Longitude: -79.4502 (North Bay, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in North Bay, Canada

To maximize your solar PV system's energy output in North Bay, Canada (Lat/Long 46.2801, -79.4502) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for North Bay, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in North Bay, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	50° South in Autumn	60° South in Winter	38° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in North Bay, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in North Bay, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around North Bay, Canada

The topography around North Bay, Canada, located at 46.2801 degrees north latitude and 79.4502 degrees west longitude, is characterized by a diverse landscape shaped by glacial activity during the last ice age. The city itself is situated on the shore of Lake Nipissing, a large freshwater lake that dominates the southern part of the region. To the north and east of North Bay, the terrain becomes more rugged and hilly, transitioning into the Canadian Shield, a vast area of exposed Precambrian rock. The area surrounding North Bay features a mix of forested hills, rocky outcrops, and numerous small lakes and rivers. The landscape is dotted with glacial deposits, including moraines and eskers, which create a rolling, undulating terrain. The elevation in the region generally increases as you move away from Lake Nipissing, with some hills reaching heights of 300 to 400 meters above sea level.

Potential Areas for Large-Scale Solar PV

When considering areas near North Bay that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. Ideal locations would have relatively flat or gently sloping terrain, good sun exposure, and minimal shading from surrounding features. One promising area for solar PV development could be the agricultural lands to the west and southwest of North Bay. These areas tend to have more open, cleared spaces with fewer obstructions to sunlight. The relatively flat terrain of former farmlands could provide suitable sites for large solar arrays without requiring extensive land modification. Another potential location for solar PV installations could be found in the cleared areas around the Jack Garland Airport, located north of the city. The open spaces surrounding airports often offer favorable conditions for solar farms, with minimal shading and good sun exposure. It's important to note that while the Canadian Shield region to the north and east of North Bay has ample open space, the rugged terrain and dense forest cover may present challenges for large-scale solar installations. However, there may be opportunities on cleared hilltops or in areas where mining or other industrial activities have created open spaces. Any large-scale solar PV project in the North Bay area would need to carefully consider environmental impacts, local regulations, and grid connection possibilities. Additionally, the region's climate, including significant snowfall in winter months, would need to be factored into the design and maintenance plans for solar installations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
