Solar PV Analysis of North Vancouver, Canada
North Vancouver, British Columbia, Canada (latitude: 49.3164, longitude: -123.0572) is a suitable location for generating solar power throughout the year due to its seasonal energy production potential per kW of installed solar panels. In this region, Summer yields the highest output with an average of 6.67 kWh/day per kW, followed by Spring at 4.67 kWh/day per kW. Autumn and Winter have lower outputs of 2.08 kWh/day per kW and 1.21 kWh/day per kW respectively.
The reason for these variations in energy production is that North Vancouver lies within the Northern Temperate Zone, which experiences longer daylight hours during Summer months compared to Winter months due to its higher latitude position on Earth's surface. This allows for increased energy generation during Summer and Spring as opposed to Autumn and Winter when there are fewer daylight hours available for power generation.
While specific weather conditions in North Vancouver such as cloudy days or heavy snowfall could potentially impact solar power generation, overall this location remains well-suited for solar PV installations given its latitude position within the Northern Temperate Zone and corresponding seasonal kWh per kW outputs.
Furthermore, North Vancouver generally has a milder climate compared to other locations at similar latitudes around the world, which can be advantageous for solar power generation efficiency.
For optimal energy production from a fixed panel installation in this location, it is recommended that solar panels be tilted at an angle of 41 degrees facing South. This orientation maximizes exposure to sunlight throughout the year while minimizing potential shading or obstruction issues caused by local topography or environmental factors.
In conclusion, North Vancouver offers favorable conditions for generating solar power year-round with appropriate panel installation measures taken into account regarding tilt angle and potential local factors affecting sunlight exposure.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Canada by location

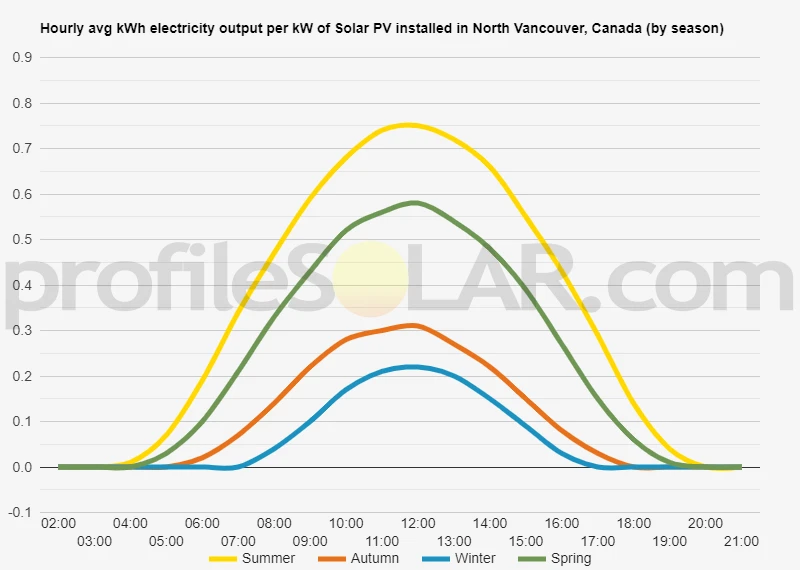

Solar output per kW of installed solar PV by season in North Vancouver
Seasonal solar PV output for Latitude: 49.3164, Longitude: -123.0572 (North Vancouver, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 41° South in North Vancouver, Canada
To maximize your solar PV system's energy output in North Vancouver, Canada (Lat/Long 49.3164, -123.0572) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for North Vancouver, Canada
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in North Vancouver, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 33° South in Summer | 52° South in Autumn | 63° South in Winter | 41° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in North Vancouver, Canada
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in North Vancouver, Canada.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around North Vancouver, Canada
The topography around North Vancouver, Canada is generally hilly and mountainous. The city is surrounded by the Coast Mountains to the north, east and west, and Burrard Inlet to the south. Nearby areas that would be most suited for large-scale solar PV installations are flat or gently sloping terrain with direct access to sunlight throughout the day. Areas such as Burnaby Mountain, Mount Seymour Provincial Park, Grouse Mountain, Cypress Provincial Park and Indian Arm could provide ideal locations for large-scale solar PV projects.
Canada solar PV Stats as a country
Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Canada?
There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:
1. Federal Tax Incentives:- Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.
- Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
- Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
- British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
- Nova Scotia: Solar Electricity for Community Buildings Program.
Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.
4. Grants and Loans:Some provinces offer grants or low-interest loans for renewable energy projects.
5. Carbon Pricing:The federal carbon pricing system can make solar more competitive compared to fossil fuels.
6. Municipal Incentives:Some cities offer additional incentives or property tax reductions for solar installations.
7. Reduced Operating Costs:While not a direct incentive, businesses can significantly reduce their long-term energy costs.
Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
