Norwood, Ontario, Canada offers moderate solar energy potential for year-round electricity generation, though with significant seasonal variations typical of its Northern Temperate Zone location at latitude 44.3832, longitude -77.9889.

Seasonal Solar Performance

The solar energy output varies dramatically throughout the year at this location. Summer provides the highest production at 5.89 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.18 kWh per day per kW, offering nearly comparable performance to summer months. Autumn sees a notable decline to 2.94 kWh per day per kW, while winter presents the most challenging conditions with only 1.72 kWh per day per kW of production. This winter output represents less than 30% of summer generation, highlighting the seasonal challenges of solar energy in this northern climate.

Optimal Installation Setup

For fixed panel installations at Norwood, Ontario, the ideal tilt angle is 38 degrees facing south to maximize total year-round solar production. This angle is calculated based on the sun's path throughout the year and helps optimize energy capture across all seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors can significantly impact solar energy production in the Norwood area:

• Snow accumulation: Heavy winter snowfall can completely block solar panels, eliminating energy production until cleared
• Ice formation: Freezing rain and ice storms can coat panels and reduce efficiency
• Cloud cover: Frequent overcast conditions, particularly in autumn and winter, reduce solar irradiance
• Atmospheric moisture: High humidity and fog can scatter sunlight and decrease panel efficiency

Preventative Measures for Better Performance

Several installation strategies can help mitigate these local challenges: Installing panels at the recommended 38-degree tilt helps snow slide off more easily compared to flatter installations. Adding heating elements or snow guards can prevent dangerous ice dams while allowing controlled snow removal. Choosing panels with anti-reflective coatings helps capture more light during cloudy conditions. Regular maintenance becomes crucial, including scheduled cleaning and snow removal protocols. Installing monitoring systems allows for quick identification of performance issues. Proper spacing between panel rows prevents shading when snow builds up on lower panels.

Overall Assessment

While Norwood's location presents seasonal challenges typical of northern climates, the strong summer and spring performance can make solar installations viable with proper planning. The key to success lies in designing systems that account for winter limitations while maximizing production during peak months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

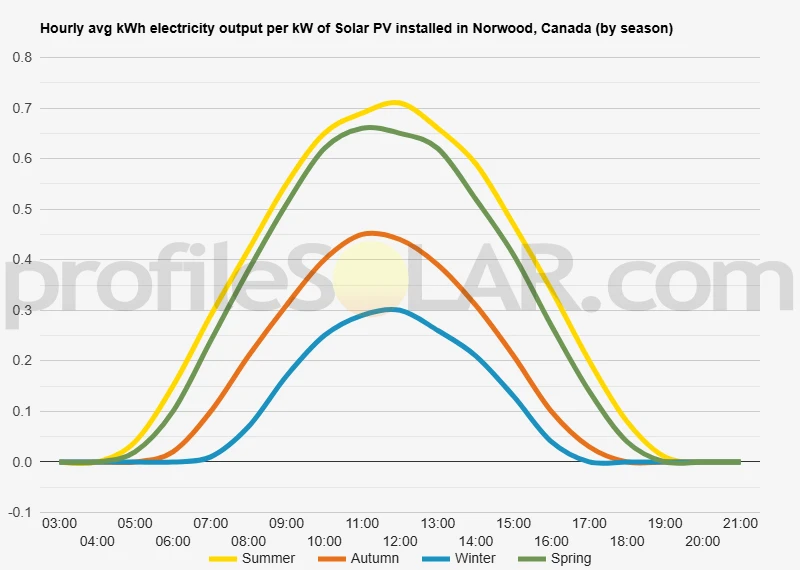

Solar output per kW of installed solar PV by season in Norwood

Seasonal solar PV output for Latitude: 44.3832, Longitude: -77.9889 (Norwood, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in Norwood, Canada

To maximize your solar PV system's energy output in Norwood, Canada (Lat/Long 44.3832, -77.9889) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Norwood, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Norwood, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	48° South in Autumn	58° South in Winter	37° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Norwood, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Norwood, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Norwood, Canada

Topography Around Norwood, Canada

Norwood sits in the gently rolling landscape of south-central Ontario, positioned within the Kawartha Lakes region approximately 30 kilometers northeast of Peterborough. The terrain here is characterized by relatively modest elevation changes, with the community nestled at roughly 250 meters above sea level. This area forms part of the Canadian Shield's southern edge, where ancient granite bedrock lies beneath a layer of glacial deposits left behind during the last ice age.

The immediate surroundings feature a mix of agricultural fields, scattered woodlots, and numerous small lakes that dot the landscape. The topography consists primarily of gentle hills and shallow valleys, with elevation differences typically ranging between 200 and 350 meters across the broader region. These undulations create a pleasant pastoral setting without presenting significant obstacles to development or land use.

Several small waterways meander through the area, including Rice Lake to the south and various creeks that feed into the Trent-Severn Waterway system. The presence of these water bodies, combined with the region's glacial history, has created pockets of fertile soil interspersed with areas of rockier ground closer to the surface.

Optimal Areas for Large-Scale Solar Development

The agricultural lands stretching south and southwest of Norwood present the most promising opportunities for large-scale solar photovoltaic installations. These areas feature relatively flat to gently sloping terrain with minimal tree cover, providing excellent access to unobstructed sky exposure throughout the day. The fields in this direction benefit from southern-facing slopes that naturally optimize solar collection angles.

The open farmland extending toward Rice Lake offers particularly suitable conditions, with large contiguous parcels of land that could accommodate substantial solar arrays. This agricultural zone typically features well-drained soils and gentle topography that would minimize grading requirements and construction costs. The existing rural road network in this area would also facilitate access for construction and maintenance activities.

Areas to the east and northeast of Norwood, while still relatively open, tend to have more frequent woodlots and slightly more varied topography. However, cleared agricultural parcels in these directions could still serve as viable locations for solar development, particularly those with good southern exposure and minimal shading from adjacent forest stands.

The terrain immediately north and northwest of the community becomes progressively more wooded and irregular, making it less suitable for large-scale solar installations. These areas would require significant clearing and site preparation, making them economically less attractive compared to the readily available agricultural lands to the south.

Transportation infrastructure represents another advantage for solar development in this region, with Highway 7 providing good access from the south and various county roads offering connectivity to potential development sites. The relatively stable soil conditions and gentle grades would support the installation of tracking systems if desired, though the modest topographical variations also provide natural opportunities for fixed-tilt installations oriented toward optimal solar exposure.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
