Orangeville, Ontario, Canada presents a moderately favorable location for year-round solar photovoltaic energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer delivers the strongest performance at 6.26 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best period with 5.30 kWh per day per kW, offering excellent energy production during the longer daylight months. Autumn sees a notable decline to 2.97 kWh per day per kW, while winter presents the most challenging conditions with only 1.81 kWh per day per kW. This represents more than a three-fold difference between peak summer and winter production, highlighting the seasonal nature of solar energy at this latitude. For optimal year-round energy capture from a fixed panel installation at Orangeville, Ontario, panels should be tilted at 37 degrees facing south. This angle maximizes total annual solar output by balancing the sun's varying position throughout the seasons.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production in Orangeville:

• Snow accumulation during winter months can completely block solar panels
• Ice formation creates both shading and potential structural stress
• Frequent cloud cover during autumn and winter reduces solar irradiance
• Temperature fluctuations can cause thermal stress on equipment

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective:

• Install panels at steeper angles (45-50 degrees) to encourage natural snow shedding
• Use mounting systems with adequate structural support for snow loads
• Ensure easy access for manual snow removal when necessary
• Select high-quality panels rated for extreme temperature variations
• Install proper drainage systems to prevent ice dam formation

Regular maintenance becomes crucial during winter months, including periodic snow removal and inspection for ice damage. Proper system design accounting for local weather patterns can help maintain reasonable energy production even during the challenging winter season.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

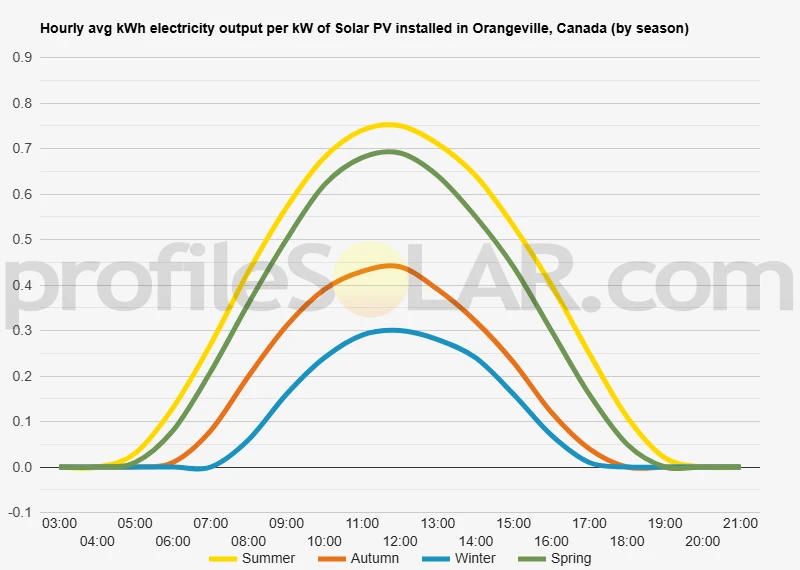

Solar output per kW of installed solar PV by season in Orangeville

Seasonal solar PV output for Latitude: 43.9702, Longitude: -80.016 (Orangeville, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Orangeville, Canada

To maximize your solar PV system's energy output in Orangeville, Canada (Lat/Long 43.9702, -80.016) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Orangeville, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Orangeville, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	47° South in Autumn	58° South in Winter	37° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Orangeville, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Orangeville, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Orangeville, Canada

Topography Around Orangeville

Orangeville sits in the heart of south-central Ontario, positioned on the eastern edge of the Dufferin County plateau. The landscape here is characterized by gently rolling hills that are part of the Oak Ridges Moraine system, which extends across much of southern Ontario. This glacially-formed terrain creates a varied topography with elevation changes that typically range from moderate slopes to relatively flat agricultural areas.

The town itself rests at approximately 400 meters above sea level, making it one of the higher elevated communities in this part of Ontario. The surrounding countryside features a mix of farmland, woodlots, and small creek valleys that drain toward the Credit River system. The terrain generally slopes away from the moraine ridge, creating natural drainage patterns that have shaped the local landscape over thousands of years.

To the west and southwest of Orangeville, the land becomes increasingly flat as it transitions into the broader agricultural plains of southwestern Ontario. This area features large, open fields with minimal tree cover and gentle gradients that make it ideal for farming operations. The soil composition in these areas is primarily clay and loam, deposited during the last ice age, which has created stable ground conditions.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Orangeville would be found in the flatter agricultural areas to the west and southwest of the town. These regions offer several key advantages for solar development, including minimal topographical obstacles, reduced shading from natural features, and existing agricultural land use that can be adapted or integrated with solar infrastructure.

The areas along Highway 9 corridor, extending westward toward Shelburne, present particularly favorable conditions. This region features expansive open fields with south-facing slopes that would maximize solar exposure throughout the day. The relatively flat terrain in this zone would minimize grading and site preparation costs while providing optimal panel orientation opportunities.

South of Orangeville, toward the communities of Inglewood and Caledon, the landscape offers another promising zone for solar development. While slightly more undulating than the western areas, this region still maintains the open agricultural character necessary for large installations. The existing road infrastructure and proximity to electrical transmission lines make these areas particularly attractive from a development perspective.

The areas immediately north and east of Orangeville are less suitable for large-scale solar projects due to increased forest cover, more pronounced topographical variations, and smaller field sizes. The Oak Ridges Moraine's more rugged terrain in these directions creates natural obstacles that would complicate large solar installations and potentially reduce their efficiency through increased shading and irregular panel layouts.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
