Peace River, Alberta, Canada, located at latitude 56.2477 and longitude -117.2892, presents a challenging environment for year-round solar energy generation via photovoltaic (PV) systems. The location experiences significant seasonal variations in solar energy production, which greatly impact the overall efficiency of solar installations.

Seasonal Solar Energy Production

The solar energy output at Peace River varies dramatically across the four meteorological seasons:

• Summer: 6.07 kWh/day per kW installed
• Spring: 4.98 kWh/day per kW installed
• Autumn: 2.22 kWh/day per kW installed
• Winter: 1.07 kWh/day per kW installed

This data clearly shows that summer and spring are the most productive seasons for solar energy generation in Peace River, Alberta, while autumn and winter face significant challenges.

Optimal Panel Tilt Angle

For fixed panel installations in Peace River, Alberta, the ideal tilt angle to maximize year-round solar production is 48 degrees facing south. This angle helps optimize energy capture throughout the year, considering the location's latitude and seasonal sun angles.

Challenges and Considerations

Several environmental and weather factors can impede solar production in Peace River: 1. Long, dark winters: The location's northern latitude results in very short days during winter, severely limiting solar energy production. 2. Snow and ice accumulation: Peace River experiences significant snowfall, which can cover solar panels and reduce their efficiency. Regular panel cleaning and snow removal are essential. 3. Cold temperatures: While solar panels can actually perform more efficiently in cold weather, extreme cold can potentially damage system components.

Preventative Measures

To mitigate these challenges and ensure greater energy production, consider the following measures when installing solar in Peace River: 1. Use high-efficiency, cold-weather rated solar panels and components designed to withstand extreme temperatures. 2. Install panels at a steeper angle (48 degrees as recommended) to promote snow shedding and maximize winter sun exposure. 3. Implement a regular maintenance schedule for snow and ice removal from panels. 4. Consider a dual-axis tracking system to maximize solar exposure throughout the year, especially during the limited daylight hours of winter.

In conclusion, while Peace River faces significant challenges for year-round solar energy production, particularly during the winter months, proper system design and maintenance can help maximize energy generation during the more favorable seasons of spring and summer.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

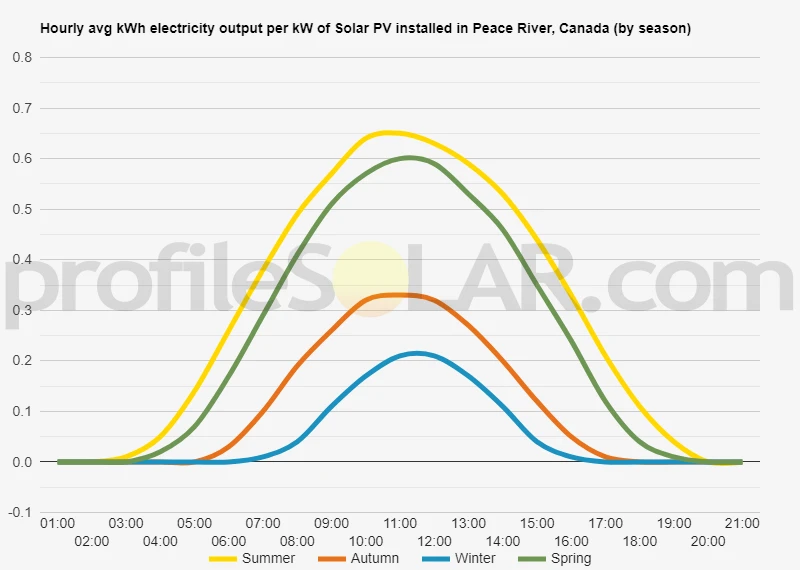

Solar output per kW of installed solar PV by season in Peace River

Seasonal solar PV output for Latitude: 56.2477, Longitude: -117.2892 (Peace River, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 48° South in Peace River, Canada

To maximize your solar PV system's energy output in Peace River, Canada (Lat/Long 56.2477, -117.2892) throughout the year, you should tilt your panels at an angle of 48° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Peace River, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Peace River, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 48° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
40° South in Summer	58° South in Autumn	69° South in Winter	48° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Peace River, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Peace River, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Peace River, Canada

The topography around Peace River, Canada, is characterized by a diverse landscape that includes rolling hills, river valleys, and expansive plateaus. The town itself is situated in a deep valley carved out by the Peace River, which has shaped the surrounding terrain over thousands of years.

The area features a mix of forested regions and open prairies, with elevations varying significantly across the region. The river valley where Peace River is located sits at a lower elevation, while the surrounding uplands rise to form a plateau that extends for miles in all directions. This plateau is generally flat to gently rolling, with occasional steep escarpments where it drops down to the river valley.

To the west of Peace River, the land gradually rises towards the foothills of the Rocky Mountains, creating a more rugged and varied topography. To the east, the landscape becomes increasingly flat as it transitions into the vast prairie regions of Alberta.

When considering areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, the following factors should be taken into account:

1. The plateau regions surrounding Peace River offer the most promising locations for solar farms. These areas provide relatively flat terrain, which is ideal for the installation and maintenance of solar panels.
2. South-facing slopes on the rolling hills would be particularly advantageous, as they receive more direct sunlight throughout the day, maximizing energy production.
3. Open prairie areas to the east of Peace River could also be suitable, as they offer vast, unobstructed spaces with good sun exposure.
4. It's important to avoid low-lying areas near the river or in valleys, as these locations may experience more fog and reduced sunlight due to shadowing from surrounding hills.

While the region around Peace River does receive less sunlight compared to more southern latitudes, advances in solar technology have made it increasingly viable for solar energy production even in northern areas. The long summer days in this region can partially compensate for the shorter winter days, making large-scale solar PV projects feasible with proper planning and site selection.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
