Pitt Meadows, British Columbia, Canada, located at 49.2245° North, -122.691° East, presents a varied landscape for solar energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal fluctuations in solar energy production.

Seasonal Solar Production

Solar panels in Pitt Meadows perform best during summer months, generating approximately 6.63 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, yielding about 4.61 kWh daily per kilowatt installed. Production drops considerably in autumn to 2.02 kWh/day, with winter showing the lowest output at just 1.16 kWh/day per kilowatt of installed capacity.

This pattern creates a nearly 6-fold difference between the best and worst production seasons, highlighting the strongly seasonal nature of solar generation in this location. Summer and spring together represent the optimal period for solar energy harvesting, accounting for significantly more production than the autumn and winter months combined.

Optimal Panel Installation

For fixed solar panel installations in Pitt Meadows, British Columbia, the ideal tilt angle is 40 degrees facing South. This angle optimizes year-round energy capture, balancing the lower winter sun angles with higher summer sun positions to maximize total annual production.

Environmental Challenges

Several local factors may impact solar production in Pitt Meadows:

• Frequent rainfall and overcast conditions in the Pacific Northwest, particularly from late fall through early spring
• Potential snow accumulation during winter months that can temporarily cover panels
• Morning fog in this low-lying area adjacent to rivers
• Possible wildfire smoke during summer months in recent years, which can significantly reduce solar radiation

Preventative Measures

To maximize solar production despite these challenges, consider implementing these solutions:

• Install panels at the recommended 40-degree tilt to promote natural snow shedding and optimize year-round production
• Use high-efficiency panels that perform better in low-light and diffuse light conditions common during cloudy days
• Consider automated cleaning systems or regular maintenance schedules to remove accumulated debris, especially after wildfire season
• Install micro-inverters or power optimizers to minimize production losses when parts of the array may be shaded or affected by environmental factors
• Plan for seasonal production variations in system sizing, potentially oversizing the array to ensure adequate winter production

With proper system design and maintenance, solar power remains viable in Pitt Meadows despite the seasonal variations, with excellent production potential during the spring and summer months that can help offset the reduced winter output.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

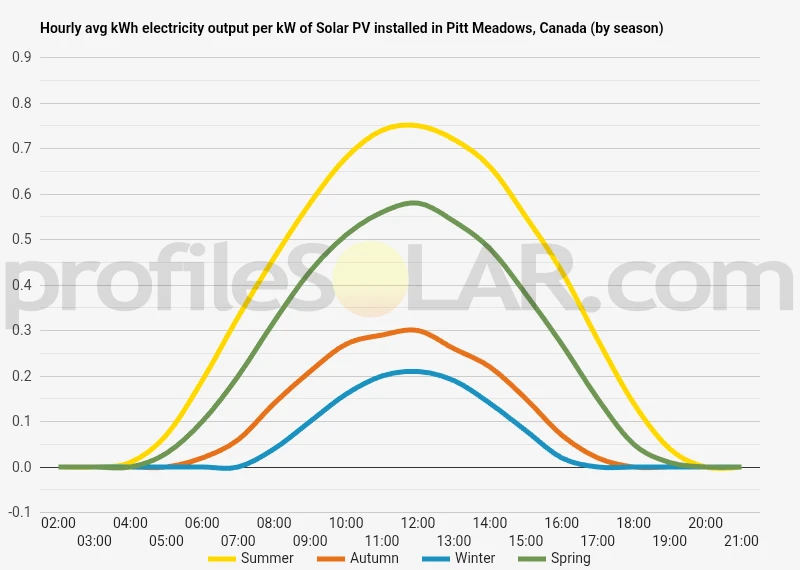

Solar output per kW of installed solar PV by season in Pitt Meadows

Seasonal solar PV output for Latitude: 49.2245, Longitude: -122.691 (Pitt Meadows, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Pitt Meadows, Canada

To maximize your solar PV system's energy output in Pitt Meadows, Canada (Lat/Long 49.2245, -122.691) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pitt Meadows, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pitt Meadows, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	51° South in Autumn	63° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pitt Meadows, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pitt Meadows, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pitt Meadows, Canada

The topography surrounding Pitt Meadows, British Columbia presents a diverse landscape characterized by flat lowlands, rivers, and mountain views. Located in the Lower Mainland region of southwestern British Columbia, Pitt Meadows sits within the Fraser River Valley, positioned between the Pitt River to the east and the Fraser River to the south. The immediate area of Pitt Meadows itself is predominantly flat, consisting of fertile agricultural lands and wetlands that were formed by centuries of alluvial deposits from the Fraser and Pitt Rivers. This flatness is a defining characteristic of the community, with much of the land sitting at or near sea level. These low-lying areas were historically marshlands that have been drained and diked for agricultural use, creating the "meadows" that give the community its name.

Surrounding Terrain Features

Moving outward from the central flatlands, the landscape transitions dramatically. To the north rise the Coast Mountains, creating a stunning backdrop with peaks that can exceed 1,500 meters in elevation. The most prominent nearby mountain is Golden Ears, which dominates the northern skyline. These mountains create significant topographical variation within a relatively short distance from the community center. To the east, beyond the Pitt River, the terrain begins to rise into the foothills of the Coast Mountains. The western boundary is marked by the transition to neighboring Maple Ridge, where the land gradually begins to rise. South of Pitt Meadows, across the Fraser River, the landscape returns to the flat delta lands of Surrey and Langley.

Potential Areas for Solar PV Development

When considering large-scale solar photovoltaic (PV) installations, several areas near Pitt Meadows offer promising potential. The flat agricultural lands within Pitt Meadows itself provide open spaces with minimal shadowing from topographical features. These areas benefit from good solar exposure, particularly in the southern portions of the municipality where there are fewer tall structures or natural features that might cast shadows. The slightly elevated areas to the northeast, where the land begins to rise toward the foothills, may offer enhanced solar exposure with reduced risk of flooding compared to the lowest-lying areas. These transitional zones between the flat valley floor and the steeper mountain slopes could provide ideal locations for solar installations, balancing accessibility with favorable orientation toward the sun. Areas to the east along the Pitt River, particularly where there are cleared lands at slightly higher elevations, might also be suitable. These locations would benefit from reduced morning fog that sometimes settles in the lowest valley areas, potentially increasing overall solar radiation capture. It's worth noting that while the mountainous areas to the north receive abundant sunlight at certain times, their steep slopes, forest cover, and difficult access make them generally less practical for large-scale solar development compared to the more accessible flatlands. The agricultural character of the region does create some competition for land use, as these fertile soils are valuable for food production. However, certain marginal agricultural lands or dual-use approaches (agrivoltaics) could provide opportunities for solar development while maintaining some agricultural productivity.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
