Port Alberni, located on Vancouver Island in British Columbia, Canada, presents a mixed picture for year-round solar energy generation. This Northern Temperate Zone location experiences significant seasonal variations in solar potential, which impacts the effectiveness of solar PV systems throughout the year.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Port Alberni, with an impressive daily output of 6.86 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 4.82 kWh/day. However, the performance drops considerably during autumn and winter, with outputs of 2.11 kWh/day and 1.24 kWh/day, respectively.

These figures highlight the stark contrast between the warm and cold seasons, with summer producing more than five times the energy of winter. This variation is primarily due to the location's northern latitude, which results in longer days and higher sun angles during summer months, and shorter days with lower sun angles in winter.

Optimal Panel Installation

To maximize year-round solar production in Port Alberni, fixed solar panels should be installed at a tilt angle of 41 degrees facing south. This angle is calculated to optimize the overall annual energy yield, balancing the seasonal variations in sun position and daylight hours.

Environmental and Weather Factors

Several environmental and weather factors can impact solar production in Port Alberni:

1. Rainfall: The region experiences significant rainfall, particularly in autumn and winter, which can reduce solar efficiency.
2. Cloud cover: Frequent overcast conditions, especially during cooler months, can diminish solar energy generation.
3. Coastal fog: Being close to the coast, Port Alberni can experience fog, potentially limiting solar exposure.

To mitigate these factors, consider the following preventative measures:

• Use high-efficiency panels designed to perform well in low-light conditions
• Implement regular cleaning schedules to remove rain residue and coastal salt spray
• Install micro-inverters or power optimizers to minimize the impact of partial shading
• Consider a slight increase in system size to compensate for reduced winter production

While Port Alberni's location presents challenges for year-round solar energy production, particularly in winter, the strong summer performance can still make solar PV systems a viable option. Proper system design and maintenance can help maximize energy generation despite the seasonal and environmental factors at play.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

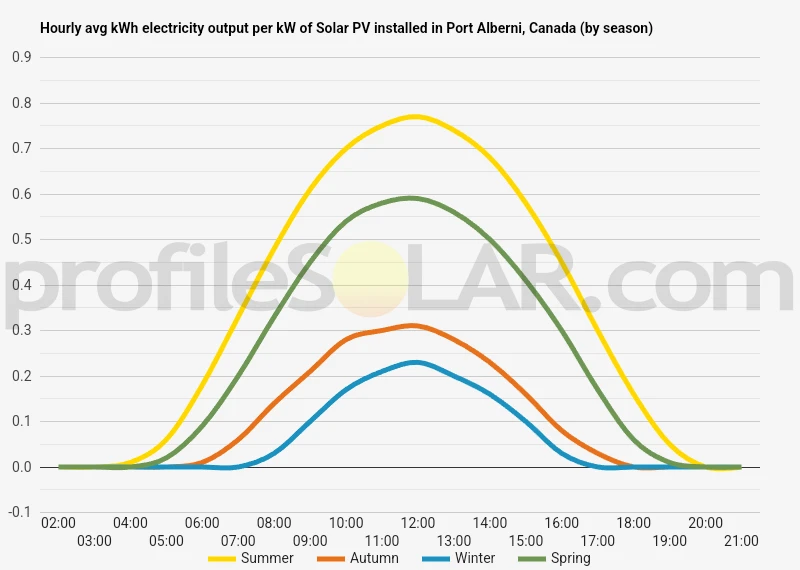

Solar output per kW of installed solar PV by season in Port Alberni

Seasonal solar PV output for Latitude: 49.2403, Longitude: -124.8026 (Port Alberni, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 6.86kWh/day in Summer.

Average 2.11kWh/day in Autumn.

Average 1.24kWh/day in Winter.

Average 4.82kWh/day in Spring.

Ideally tilt fixed solar panels 41° South in Port Alberni, Canada

To maximize your solar PV system's energy output in Port Alberni, Canada (Lat/Long 49.2403, -124.8026) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 49.2403, Longitude: -124.8026, the ideal angle to tilt panels is 41° South

Seasonally adjusted solar panel tilt angles for Port Alberni, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Port Alberni, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Port Alberni, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Port Alberni, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Port Alberni, Canada

Port Alberni, located on Vancouver Island in British Columbia, Canada, is nestled in a unique and varied topographical setting. The city sits at the head of the Alberni Inlet, a long, narrow arm of the sea that stretches inland from the Pacific Ocean. This location places Port Alberni in a valley surrounded by mountainous terrain.

The Alberni Valley is characterized by its relatively flat bottom, where the city itself is situated. This area is flanked by steep, forested hillsides that rise dramatically on either side. To the east and west, the landscape quickly transitions into the rugged Vancouver Island Ranges, with peaks reaching heights of over 1,500 meters (nearly 5,000 feet). These mountains are part of the larger Insular Mountains system that forms the spine of Vancouver Island.

The Somass River flows through the valley, fed by nearby Sproat Lake and Great Central Lake, before emptying into the Alberni Inlet. This river system has played a crucial role in shaping the local topography, creating fertile floodplains and alluvial deposits in the valley bottom.

Regarding areas suitable for large-scale solar PV (photovoltaic) installations, the topography presents some challenges but also opportunities. The valley floor, while relatively flat and accessible, may not be ideal due to potential shading from the surrounding mountains and the valuable agricultural land it contains. However, there are several areas that could be considered:

1. South-facing slopes: The hillsides and lower mountain slopes that face south would receive more direct sunlight throughout the day, making them potentially suitable for solar installations. These areas would need to be carefully selected to balance solar potential with environmental impact and accessibility.
2. Cleared uplands: Any relatively flat or gently sloping areas at higher elevations that have been previously cleared (such as former logging sites) could be good candidates for solar farms. These locations would likely have less shading from surrounding terrain and vegetation.
3. Repurposed industrial sites: Port Alberni has a history of industry, particularly in forestry. Any large, flat areas that were once used for industrial purposes but are now vacant could be repurposed for solar energy production.
4. Floating solar: Given the presence of large bodies of water like Sproat Lake and Great Central Lake, floating solar panel installations could be considered. This approach would minimize land use conflicts and potentially benefit from the cooling effect of the water on the panels.

It's important to note that while the topography around Port Alberni offers some potential for solar PV development, the region's climate, characterized by significant rainfall and cloud cover, may impact the overall efficiency and viability of large-scale solar projects. Any development would need to carefully consider these factors along with the unique topographical features of the area.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

Some provinces offer grants or low-interest loans for renewable energy projects.

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

Some cities offer additional incentives or property tax reductions for solar installations.

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
