Port Dover, Ontario, Canada presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations typical of its Northern Temperate Zone position.

Seasonal Solar Performance

The solar energy output at Port Dover shows dramatic seasonal swings that reflect the challenges of northern latitude solar installations. Summer delivers the strongest performance at 6.37 kWh per day per kW of installed capacity, making it the prime solar generation season. Spring follows as the second-best period with 5.49 kWh per day per kW, offering excellent conditions as daylight hours increase and weather improves. Autumn sees a notable decline to 3.20 kWh per day per kW as conditions deteriorate toward winter. Winter presents the most challenging period, dropping to just 1.77 kWh per day per kW - less than 30% of summer production levels.

Optimal Installation Configuration

For maximum year-round energy production at Port Dover, Ontario, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's varying elevation throughout the year and weighting for actual solar irradiance conditions at this latitude.

Environmental and Weather Challenges

Several local factors can significantly impact solar production at Port Dover and require careful consideration during installation:

• Snow accumulation: Winter snow buildup can completely block panels, eliminating energy production for extended periods
• Ice formation: Freezing rain and ice storms common to the Great Lakes region can coat panels and reduce efficiency
• Lake-effect weather: Port Dover's proximity to Lake Erie creates increased cloud cover and precipitation that can reduce solar irradiance
• High humidity: The lakeside location generates moisture that can cause condensation and reduce panel efficiency

Installation Strategies for Maximum Production

To combat these environmental challenges and optimize energy generation, several preventative measures should be implemented: The 36-degree tilt angle not only maximizes annual production but also helps with natural snow shedding, as steeper angles allow gravity to clear accumulated snow more effectively. Installing panels with adequate spacing between rows prevents snow from one panel casting shadows on lower panels during winter months. Selecting panels with anti-reflective coatings and hydrophobic surfaces helps minimize the impact of moisture and condensation while improving light absorption. Regular maintenance scheduling becomes crucial, particularly for removing snow and ice buildup during winter months when even small obstructions can dramatically reduce the already limited solar production. Proper drainage systems around ground-mounted installations prevent water pooling that could create humidity issues or ice formation. For roof-mounted systems, ensuring adequate ventilation behind panels helps prevent condensation and maintains optimal operating temperatures. Despite these challenges, Port Dover's strong spring and summer performance, combined with proper installation techniques and maintenance practices, can still deliver reasonable annual solar energy production for this northern latitude location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

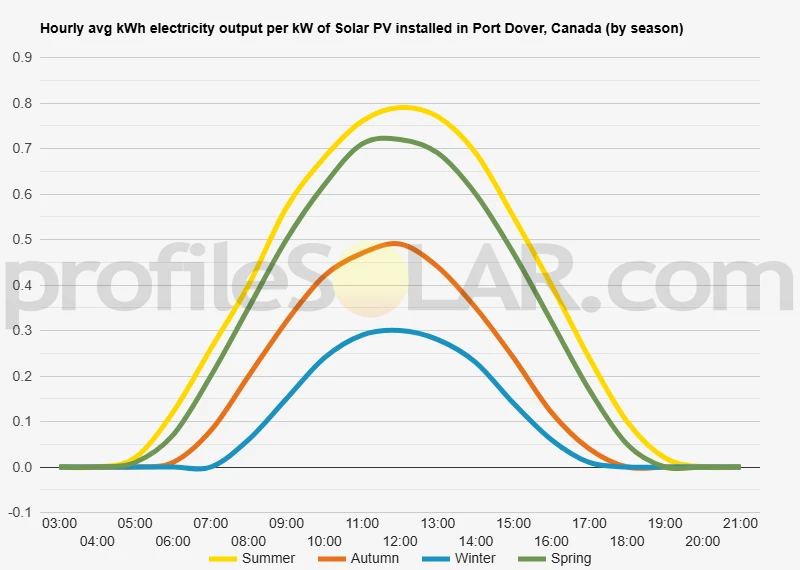

Solar output per kW of installed solar PV by season in Port Dover

Seasonal solar PV output for Latitude: 42.7791, Longitude: -80.2053 (Port Dover, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Port Dover, Canada

To maximize your solar PV system's energy output in Port Dover, Canada (Lat/Long 42.7791, -80.2053) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Port Dover, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Port Dover, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	46° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Port Dover, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Port Dover, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Port Dover, Canada

Topographical Features Around Port Dover

Port Dover sits along the northern shore of Lake Erie in southwestern Ontario, positioned within the relatively flat landscape characteristic of the Great Lakes region. The town occupies a gentle coastal plain that extends inland from the lake, with elevations typically ranging from the lake level at approximately 174 meters above sea level to modest heights of around 200-250 meters as the terrain gradually rises moving northward away from the shoreline.

The immediate coastal area features low bluffs and sandy beaches, with the land rising very gradually as it moves inland. The topography is predominantly characterized by gently rolling agricultural plains that have been shaped by glacial activity during the last ice age. These glacial deposits created a landscape of fertile soils with minimal steep slopes or significant elevation changes, making the region ideal for farming operations that dominate the surrounding countryside.

The broader regional topography extends across Norfolk County and into adjacent areas, maintaining this relatively uniform, low-relief character. Small creeks and drainage channels cut shallow valleys through the landscape, but these features create only minor interruptions to the otherwise consistent terrain. The area lacks significant hills, ridges, or other prominent topographical features that might create substantial shadows or wind barriers.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling agricultural lands extending north and northwest of Port Dover present excellent opportunities for large-scale solar photovoltaic installations. These areas offer expansive open fields with minimal topographical constraints, allowing for efficient panel placement and maintenance access. The agricultural plains between Port Dover and communities like Simcoe provide particularly suitable terrain, with large continuous parcels of relatively level land that could accommodate substantial solar arrays.

Areas located approximately 5 to 15 kilometers inland from the immediate lakeshore tend to be optimal, as they maintain the favorable flat topography while being situated away from the more developed coastal zone. The farmland in these areas typically features gentle slopes of less than 5 degrees, which is ideal for solar panel installation and allows for proper drainage while minimizing grading requirements.

The elevated agricultural plateaus to the north of Port Dover, while still maintaining modest elevations, offer additional advantages for solar development. These slightly higher areas often have good drainage characteristics and are well-removed from flood-prone zones near the lake and local waterways. The consistent southwestern Ontario agricultural landscape in this region provides numerous potential sites where large solar installations could be developed with minimal environmental disruption to the existing farming operations.

Transportation infrastructure in the area, including access to major roads and electrical transmission networks, makes many of these agricultural areas practical for development. The relatively uniform topography throughout the region means that most locations within a 20-kilometer radius of Port Dover could potentially support large-scale solar development, with site selection often depending more on land availability and grid connection opportunities than on topographical limitations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
