Solar Energy Potential in Port Elgin, Ontario, Canada

Port Elgin, Ontario, located in the Northern Temperate Zone of Canada, offers varying potential for solar energy generation throughout the year. The location experiences significant seasonal fluctuations in solar output, which impacts the overall efficiency of solar PV systems. During the summer months, Port Elgin sees its peak solar energy production, with an impressive 6.29 kWh per day for each kilowatt of installed solar capacity. This makes summer the ideal time for solar energy generation in the area. Spring follows closely behind, with a daily output of 5.21 kWh per kW installed. However, the colder months present challenges for solar energy production. Autumn sees a significant drop to 2.92 kWh per day, while winter experiences the lowest output at just 1.47 kWh per day per kW installed. This substantial seasonal variation means that solar energy systems in Port Elgin will be most productive from late spring through early fall.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Port Elgin, Ontario, it's crucial to install panels at the optimal angle. For fixed panel installations, the ideal tilt angle is 37 degrees facing south. This angle has been calculated to balance the seasonal variations and capture the most sunlight throughout the year.

Environmental and Weather Considerations

Several factors can impact solar energy production in Port Elgin: 1. Snow accumulation: Winter snowfall can cover panels, reducing efficiency. Regular snow removal and installing panels at a steeper angle can help mitigate this issue. 2. Cloud cover: The region experiences significant cloud cover, especially in winter. Using high-efficiency panels and microinverters can help maximize production during overcast conditions. 3. Temperature fluctuations: Extreme cold can affect panel efficiency, while high summer temperatures can cause slight performance drops. Choosing temperature-resistant panels and ensuring proper ventilation can address these concerns. 4. Shorter winter days: The reduced daylight hours in winter significantly impact production. While unavoidable, this reinforces the importance of maximizing summer production. By considering these factors and implementing appropriate preventative measures, solar PV systems in Port Elgin can be optimized to harness the available solar energy effectively, despite the challenges posed by its northern location and seasonal variations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

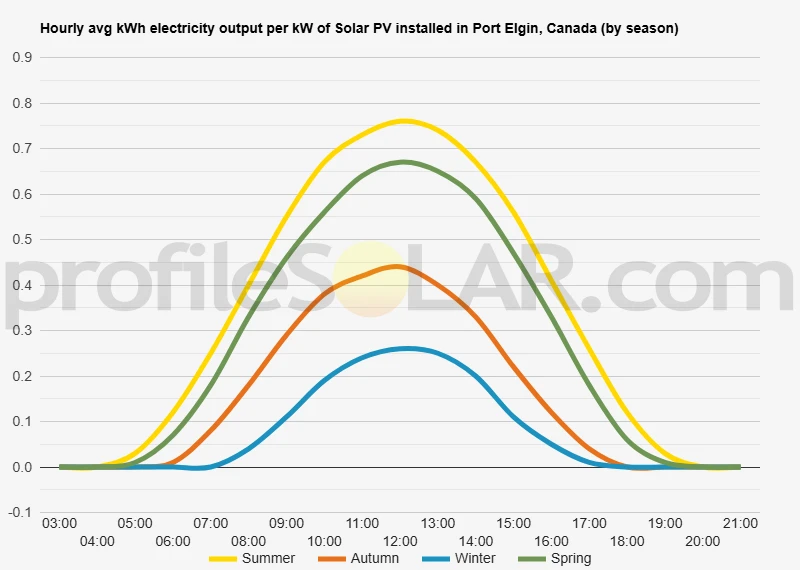

Solar output per kW of installed solar PV by season in Port Elgin

Seasonal solar PV output for Latitude: 44.4312, Longitude: -81.386 (Port Elgin, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Port Elgin, Canada

To maximize your solar PV system's energy output in Port Elgin, Canada (Lat/Long 44.4312, -81.386) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Port Elgin, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Port Elgin, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	47° South in Autumn	58° South in Winter	37° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Port Elgin, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Port Elgin, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Port Elgin, Canada

Port Elgin, located in Bruce County, Ontario, Canada, sits on the eastern shore of Lake Huron. The topography of the area surrounding Port Elgin is characterized by a mix of gently rolling hills, flat plains, and coastal features typical of the Great Lakes region. The immediate vicinity of Port Elgin consists of relatively flat terrain, gradually sloping towards Lake Huron. As you move inland from the shore, the landscape becomes more varied, with subtle rises and dips in elevation. The area is part of the Bruce Peninsula, which is known for its limestone cliffs and rocky shorelines, though these dramatic features are more prominent further north. To the east and southeast of Port Elgin, the land gradually rises as it transitions into the western edge of the Niagara Escarpment. This geological formation creates a series of low hills and ridges that run roughly parallel to the shoreline. These areas tend to have more varied topography compared to the coastal plain near Port Elgin itself.

Potential for Large-Scale Solar PV

When considering areas near Port Elgin for large-scale solar PV installations, several factors come into play. The most suitable locations would typically be found inland, away from the immediate coastal area, where there is less potential for lake-effect weather patterns that could reduce solar efficiency. The gently rolling terrain to the east and southeast of Port Elgin offers promising sites for solar farms. These areas often have open fields and agricultural land that could potentially be repurposed for solar energy production. The slight elevations in these regions can provide good exposure to sunlight throughout the day, maximizing energy generation potential. Areas to the south of Port Elgin, extending towards communities like Kincardine, also present opportunities for solar development. This region features a mix of flat and mildly undulating terrain, with many open spaces that could accommodate large solar arrays. It's important to note that while the topography around Port Elgin is generally favorable for solar PV, other factors such as local zoning regulations, grid connectivity, and environmental considerations would also play crucial roles in determining the most suitable locations for large-scale solar installations. Additionally, the presence of the Bruce Nuclear Generating Station to the south may influence energy infrastructure decisions in the region.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
