Solar Energy Potential in Port Lambton, Canada

Port Lambton, Canada, located in the Northern Temperate Zone, offers varying potential for solar PV energy generation throughout the year. This small community situated at the southern tip of Ontario experiences distinct seasonal fluctuations in solar production capacity. The solar energy output at this location follows a predictable seasonal pattern. During summer months, solar panels can generate an impressive 6.34kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.49kWh/day, while autumn sees a moderate 3.22kWh/day. Winter represents the most challenging period for solar generation, with output dropping to just 1.67kWh/day per installed kilowatt.

Optimal Panel Installation

For residents of Port Lambton considering a fixed solar panel installation, the ideal tilt angle to maximize year-round energy production is 36 degrees facing South. This specific angle has been calculated to optimize solar capture across all seasons, accounting for the Earth's elliptical orbit and the location's position in the Northern Hemisphere.

Environmental and Weather Considerations

Several environmental factors may impact solar production in Port Lambton. The region experiences significant snowfall during winter months, which can cover panels and dramatically reduce output during the already low-production winter season. Installing panels at the recommended 36-degree angle helps facilitate natural snow shedding, though periodic clearing may still be necessary during heavy accumulation. Cloud cover presents another challenge, particularly during the fall and winter months when the Great Lakes influence weather patterns. This contributes to the lower production figures seen during these seasons. Port Lambton's proximity to Lake St. Clair and the St. Clair River may also lead to increased humidity and occasional fog, which can temporarily reduce panel efficiency. However, these effects are typically short-lived and don't significantly impact annual production.

Preventative Measures

To maximize solar production in Port Lambton, consider these preventative measures:

• Install panels with anti-reflective coatings to improve light absorption during cloudy conditions
• Use micro-inverters or power optimizers to minimize the impact when portions of the array are shaded or snow-covered
• Implement a regular maintenance schedule for panel cleaning, particularly after winter storms
• Consider a ground-mounted system if roof angles don't allow for the optimal 36-degree tilt
• Use high-efficiency panels rated for cold weather performance to maximize winter output

Despite the seasonal variations, Port Lambton's location still provides viable solar energy potential, particularly from spring through fall. With proper system design accounting for local conditions, residents can effectively harness solar energy while understanding its seasonal limitations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

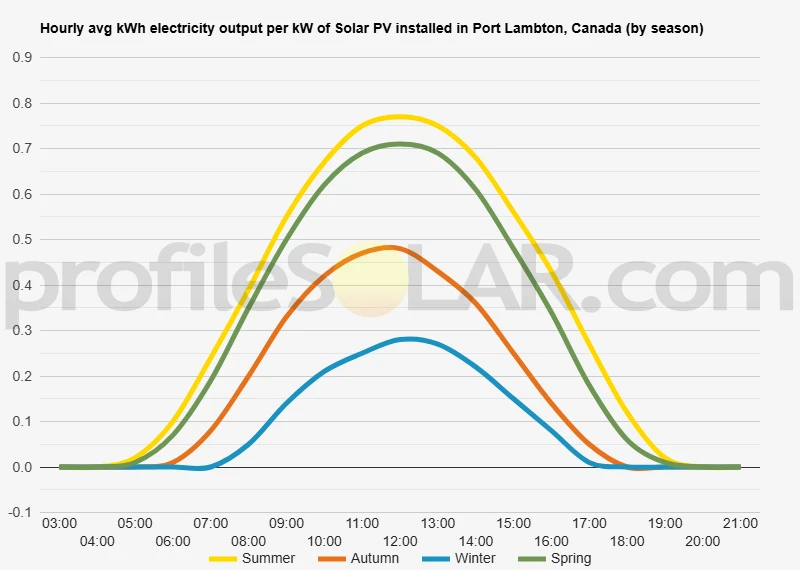

Solar output per kW of installed solar PV by season in Port Lambton

Seasonal solar PV output for Latitude: 42.6561, Longitude: -82.5103 (Port Lambton, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Port Lambton, Canada

To maximize your solar PV system's energy output in Port Lambton, Canada (Lat/Long 42.6561, -82.5103) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Port Lambton, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Port Lambton, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Port Lambton, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Port Lambton, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Port Lambton, Canada

Port Lambton, Canada is situated in southwestern Ontario along the eastern bank of the St. Clair River, which forms part of the Canada-United States border with Michigan. The topography of this area is predominantly characterized by flat, low-lying plains that are part of the broader St. Clair Clay Plains physiographic region. The landscape around Port Lambton features very gentle relief with minimal elevation changes, typically ranging between 175 to 180 meters above sea level. This flat terrain was largely shaped by glacial activity during the last ice age, when retreating glaciers deposited clay-rich sediments and created the level topography that defines the region today. The St. Clair River flows along the western edge of Port Lambton, with the terrain gradually sloping toward the riverbank.

Soil and Land Characteristics

The soils in the Port Lambton area are predominantly clay and clay loam, with some sandy loam areas. These soils developed on the lacustrine (lake-deposited) clay plains left behind by glacial Lake St. Clair. The high clay content makes these soils quite fertile, which has historically supported extensive agricultural activity throughout the region. The flat terrain combined with these rich soils has resulted in a landscape dominated by agricultural fields, with natural vegetation limited primarily to woodlots, wetlands, and riparian areas along waterways.

Drainage and Hydrology

The flat topography poses some natural drainage challenges in the region. Several drainage ditches and small creeks have been constructed or modified throughout the area to manage water flow and prevent flooding of agricultural lands. These waterways generally flow westward toward the St. Clair River. Some low-lying areas near Port Lambton may experience seasonal wetness, particularly during spring thaw or periods of heavy rainfall.

Solar PV Suitability

For large-scale solar photovoltaic (PV) installations, the areas most suited near Port Lambton would be the extensive agricultural lands that extend eastward from the community. These areas offer several advantages for solar development: The flat terrain minimizes site preparation costs and eliminates concerns about slope orientation that might otherwise affect solar panel efficiency. The open agricultural fields provide large, contiguous areas with minimal shading from trees or structures, maximizing potential solar exposure throughout the day. Specifically, the agricultural lands between Port Lambton and the communities of Sombra to the north and Wallaceburg to the southeast offer promising potential for solar development. These areas feature the necessary combination of flat terrain, minimal flooding risk (being slightly elevated above the immediate riverside areas), and existing access to transportation infrastructure via Highway 40 and various county roads. Areas to avoid would include the immediate riverside zones along the St. Clair River, which may have higher water tables or flooding potential, as well as any designated wetland areas or woodlots that would require significant clearing or environmental mitigation. The clay-rich soils, while excellent for agriculture, may require appropriate engineering considerations for the installation of solar mounting systems, particularly regarding seasonal frost heaving and drainage management. The agricultural heritage of the region means that much of the potential solar development would likely occur on lands currently used for farming, necessitating careful consideration of agricultural land preservation policies and community perspectives on land use change.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
