Solar Energy Potential in Port Moody, British Columbia, Canada

Port Moody, British Columbia, Canada, located at 49.3249° North, -122.8628° West in the Northern Temperate Zone, has varying potential for solar power generation throughout the year. The seasonal differences in solar energy production are quite significant at this location. During summer months, Port Moody residents can expect excellent solar performance with approximately 6.63 kWh per day for each kilowatt of installed solar capacity. Spring also offers good generation potential with 4.61 kWh/day per installed kilowatt. However, solar production drops considerably during autumn and winter. Autumn yields about 2.02 kWh/day, while winter performance falls to just 1.16 kWh/day per kilowatt installed. This creates a substantial seasonal disparity, with summer production being nearly six times higher than winter output.

Optimal Panel Installation

For fixed solar panel installations in Port Moody, British Columbia, the ideal tilt angle to maximize year-round energy production is 40 degrees facing South. This angle has been calculated based on Port Moody's specific latitude and seasonal solar patterns to optimize annual energy capture.

Environmental and Weather Considerations

Several environmental factors can impact solar production in Port Moody:

• Frequent rainfall and cloud cover, particularly during fall and winter months, significantly reduce solar generation potential
• Heavy snowfall can temporarily cover panels, blocking sunlight
• Coastal fog, common in the region, can diminish morning solar production
• Air pollution from the greater Vancouver area may occasionally reduce solar irradiance

To mitigate these challenges, solar installations in Port Moody should incorporate:

• Self-cleaning panel technologies or regular maintenance schedules
• Steeper panel angles (around the recommended 40 degrees) to help shed snow more effectively
• Microinverters or power optimizers to minimize production losses when some panels are partially shaded
• Weather-resistant components designed for high-precipitation environments

Despite these challenges, Port Moody's excellent summer and decent spring production make solar viable, especially when systems are properly designed with these local factors in mind. Residents should expect significant seasonal variation in their system's output, with the majority of annual production occurring between April and September.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

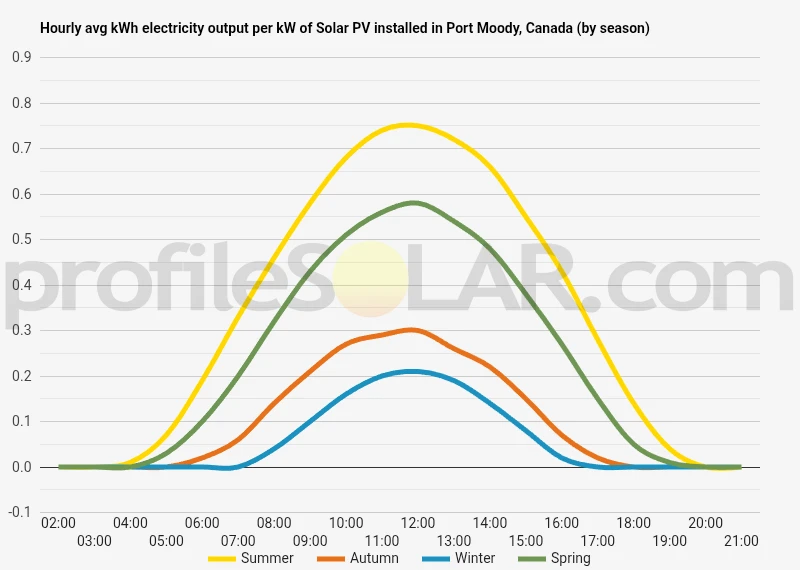

Solar output per kW of installed solar PV by season in Port Moody

Seasonal solar PV output for Latitude: 49.3249, Longitude: -122.8628 (Port Moody, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Port Moody, Canada

To maximize your solar PV system's energy output in Port Moody, Canada (Lat/Long 49.3249, -122.8628) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Port Moody, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Port Moody, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	63° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Port Moody, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Port Moody, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Port Moody, Canada

The topography around Port Moody, British Columbia, is characterized by dramatic geographical features typical of Canada's Pacific Northwest. The city is nestled at the eastern end of Burrard Inlet, surrounded by steep, forested mountains that create a natural amphitheater-like setting. This coastal community is embraced by the Coastal Mountain Range, with elevations rising rapidly from sea level to several hundred meters within a short distance from the shoreline.

Mountain Ranges and Valleys

To the north of Port Moody rises Eagle Mountain and the southern slopes of the larger Coast Mountains, creating a significant north-facing aspect for much of the city. These mountains are densely forested with typical Pacific Northwest vegetation including Western Red Cedar, Douglas Fir, and Western Hemlock. The steep terrain continues eastward, connecting to the even more substantial mountains that form the Indian Arm fjord. South of Port Moody lies Burnaby Mountain, which though not as tall as the northern ranges, still presents a significant topographical feature that influences the local landscape. The area between these mountain ranges creates a narrow valley through which the city has developed, following the contours of Burrard Inlet.

Watersheds and Waterways

The topography includes several watersheds that drain from the surrounding mountains into Burrard Inlet. Notable among these is the drainage system feeding into the Port Moody Arm. Several creeks, including Noons Creek and Mossom Creek, carve valleys through the mountainous terrain before emptying into the inlet. The eastern end of Port Moody connects to the Coquitlam River watershed, where the landscape transitions to the broader floodplain of the Tri-Cities area. This river system has shaped the eastern boundaries of Port Moody's topography, creating some of the flatter terrain in an otherwise predominantly hilly region.

Potential Areas for Solar PV Development

Given the challenging topography around Port Moody, with its predominance of steep, north-facing slopes and dense forest cover, large-scale solar PV development faces significant constraints within the immediate vicinity. However, several nearby areas present more favorable conditions: The flatter areas to the east, extending into Coquitlam and Port Coquitlam, offer more suitable terrain for large-scale solar installations. These areas feature less dramatic elevation changes and potentially better solar exposure compared to the steep-sided valley of Port Moody proper. South-facing slopes on the southern edges of the Coast Mountains, particularly where forest has been previously cleared, could provide advantageous orientation for solar collection. However, these areas would require careful assessment for slope stability and access considerations. The broader Fraser Valley to the east and southeast presents the most promising topography for large-scale solar development near Port Moody. As the mountains give way to the flatter agricultural lands of the Fraser Valley, the combination of open space, reduced shading from mountains, and relatively level terrain creates more favorable conditions for solar PV arrays. Industrial areas along the flatter portions of Burrard Inlet, particularly redeveloped brownfield sites or large commercial rooftops, could also accommodate significant solar installations without requiring additional land clearance. It's worth noting that while the immediate Port Moody area has topographical challenges for large-scale solar development, the broader Lower Mainland region offers increasingly suitable terrain as one moves eastward away from the Coast Mountain range and into the Fraser Valley.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
