Prince Rupert, Canada, located at the northwestern British Columbia coast, presents significant challenges for solar PV energy generation throughout the year. This coastal location experiences distinct seasonal variations in solar energy production that make it less than ideal for year-round solar power generation.

Seasonal Solar Production

The solar energy potential at Prince Rupert varies dramatically across seasons. Summer stands out as the most productive period, generating 4.97kWh per day for each kilowatt of installed capacity. Spring follows with a respectable 3.83kWh/day. However, production drops substantially during autumn to just 1.43kWh/day, while winter performance plummets to a minimal 0.85kWh/day per installed kilowatt.

This seasonal pattern creates a stark contrast between the productive warm months and the significantly underperforming cold season. The summer-to-winter ratio exceeds 5:1, indicating that winter production is less than 20% of summer capacity.

Optimal Installation Configuration

For fixed panel installations in Prince Rupert, the ideal angle to maximize year-round solar production is 45 degrees facing South. This tilt angle represents the best compromise between capturing low-angle winter sun and the higher summer sun path, though it cannot fully compensate for the location's challenging solar conditions during darker months.

Environmental and Weather Challenges

Several significant environmental factors impede solar production in Prince Rupert:

• Frequent cloud cover and precipitation, with Prince Rupert being one of Canada's rainiest cities
• Coastal fog that can persist for extended periods
• Snow accumulation during winter months that can cover panels
• Salt spray from the ocean that may damage equipment over time

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Install panels with self-cleaning glass technology and steeper angles to promote snow shedding
• Use marine-grade components with enhanced corrosion resistance
• Implement regular maintenance schedules, particularly after storm events
• Consider micro-inverter or power optimizer technology to minimize the impact of partial shading
• Supplement with other renewable energy sources during low-production months

Given these considerations, Prince Rupert would be best suited for hybrid renewable systems rather than relying solely on solar PV. The substantial summer production could be valuable as part of a diversified energy strategy, but standalone solar installations would struggle to provide consistent year-round power.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

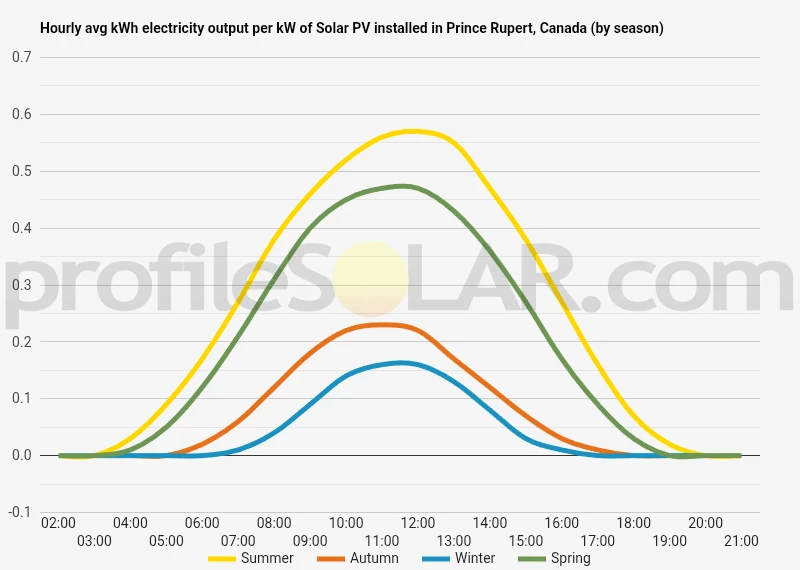

Solar output per kW of installed solar PV by season in Prince Rupert

Seasonal solar PV output for Latitude: 54.3189, Longitude: -130.3248 (Prince Rupert, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Prince Rupert, Canada

To maximize your solar PV system's energy output in Prince Rupert, Canada (Lat/Long 54.3189, -130.3248) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Prince Rupert, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Prince Rupert, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
38° South in Summer	57° South in Autumn	68° South in Winter	46° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Prince Rupert, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Prince Rupert, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Prince Rupert, Canada

Prince Rupert, situated on the northwest coast of British Columbia, Canada, features a dramatic and varied topography characteristic of the Pacific Northwest's coastal regions. The city itself is nestled on Kaien Island, surrounded by the waters of the Prince Rupert Harbour and Chatham Sound. This coastal location is defined by its mountainous terrain, with steep slopes rising from the shoreline to create a rugged, fjord-like landscape. The topography around Prince Rupert is characterized by significant elevation changes within short distances. The city is flanked by coastal mountains that are part of the broader Coast Mountain Range, with peaks in the vicinity reaching heights of several hundred meters. These mountains often have steep, forested slopes that descend abruptly to the water's edge, creating limited flat areas near the coast.

Coastal Features and Islands

The coastline near Prince Rupert is highly irregular, with numerous islands, inlets, and passages. This archipelagic landscape is the result of glacial activity that carved deep channels between resistant rock formations. Kaien Island, where the main urban area is located, is just one of many islands in the vicinity, separated from the mainland by narrow waterways. The surrounding waters include the Skeena River estuary to the east, which has created some alluvial flats and deltas that contrast with the otherwise steep terrain. These limited flat areas are often utilized for infrastructure and development due to the scarcity of level ground in the region.

Forest Cover and Vegetation

The area around Prince Rupert is part of the temperate rainforest biome, with dense coniferous forest covering most of the land that isn't developed or too steep for vegetation to take hold. This thick forest cover adds another layer of complexity to the topography, as it blankets the underlying terrain and can make access to many areas challenging.

Suitability for Solar PV Development

When considering locations for large-scale solar photovoltaic (PV) installations near Prince Rupert, several topographical factors pose significant challenges. The mountainous terrain severely limits the availability of large, flat areas that would be ideal for solar farms. Additionally, the dense forest cover would require substantial clearing, raising environmental concerns. The most suitable areas for solar PV development would likely be:

Cleared Industrial Lands

Some of the most practical locations would be previously developed industrial sites or brownfields near Prince Rupert. These areas often have existing infrastructure connections and have already been cleared of vegetation. The Port of Prince Rupert and surrounding industrial zones might offer some potential sites, though these would likely be limited in size.

South-Facing Slopes

While flat land is scarce, some of the south-facing slopes in the region could potentially be utilized for solar installations, particularly those with less dense forest cover. These sloped installations would require specialized mounting systems but could take advantage of favorable sun angles. Areas along the southern portions of Kaien Island or on the mainland facing Chatham Sound might offer such opportunities.

Nearby Plateaus and Benches

Moving further inland from Prince Rupert, the topography eventually gives way to some higher elevation plateaus and bench lands that might provide more suitable terrain for solar development. These areas, while still challenging due to their remote nature and often continuing forest cover, could offer larger contiguous spaces for development compared to the immediate coastal zone.

Challenges Beyond Topography

It's worth noting that beyond the topographical constraints, Prince Rupert's climate presents additional challenges for solar energy development. The region experiences significant cloud cover throughout much of the year and receives substantial precipitation. These climatic factors, combined with the challenging topography, suggest that large-scale solar PV may face both physical and economic hurdles in this region compared to other renewable energy options like wind or tidal power that might be better suited to the local conditions. In summary, while there are limited areas around Prince Rupert that could potentially support solar PV development from a purely topographical perspective, the combination of mountainous terrain, dense forest cover, and the relatively small amount of flat land creates significant constraints for large-scale installations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
