Qualicum Beach, located on Vancouver Island in British Columbia, Canada, offers a mixed potential for solar energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall effectiveness of solar PV systems.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Qualicum Beach, with an impressive daily output of 6.86 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 4.82 kWh/day. However, the performance drops considerably during autumn and winter, with outputs of 2.11 kWh/day and 1.24 kWh/day, respectively.

These figures highlight the substantial difference between peak and off-peak seasons, with summer producing more than five times the energy of winter. This variation suggests that while solar energy can be a valuable resource in Qualicum Beach, it may require supplementary power sources or energy storage solutions to maintain consistent year-round energy supply.

Optimal Panel Installation

To maximize year-round solar production in Qualicum Beach, fixed solar panels should be installed at a tilt angle of 41 degrees facing south. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the location's latitude and seasonal sun positions.

Environmental Factors and Mitigation

Qualicum Beach's coastal location presents some challenges for solar energy production. The area experiences significant rainfall, particularly during winter months, which can reduce solar efficiency. Additionally, the region is prone to overcast days, further impacting solar output.

To mitigate these factors, consider the following measures:

• Install high-quality, weather-resistant solar panels designed to perform well in wet conditions.
• Implement a regular cleaning schedule to remove any salt spray or debris that may accumulate on the panels.
• Consider using microinverters or power optimizers to minimize the impact of partial shading from clouds.

While Qualicum Beach may not be ideal for year-round solar energy production, the strong performance during summer and spring months makes solar PV a viable option for supplementing energy needs, particularly when combined with other renewable energy sources or grid power.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

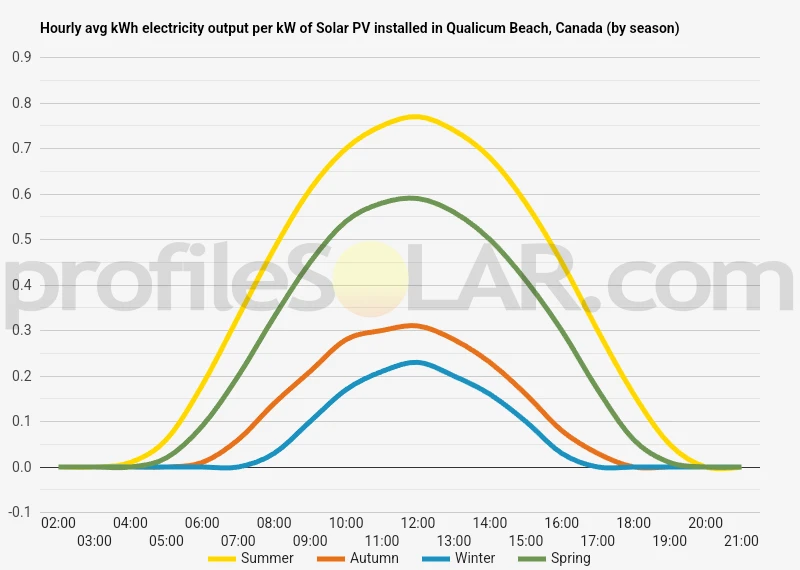

Solar output per kW of installed solar PV by season in Qualicum Beach

Seasonal solar PV output for Latitude: 49.3517, Longitude: -124.4319 (Qualicum Beach, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Qualicum Beach, Canada

To maximize your solar PV system's energy output in Qualicum Beach, Canada (Lat/Long 49.3517, -124.4319) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Qualicum Beach, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Qualicum Beach, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	63° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Qualicum Beach, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Qualicum Beach, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Qualicum Beach, Canada

Qualicum Beach, situated on the eastern coast of Vancouver Island in British Columbia, Canada, boasts a diverse and picturesque topography. The area is characterized by a gentle coastal plain that gradually rises into rolling hills and forested uplands as you move inland. The shoreline features long stretches of sandy beaches and rocky outcrops, with the Strait of Georgia lapping at its edges. To the west of Qualicum Beach, the terrain becomes more rugged and elevated, with the foothills of the Vancouver Island Ranges beginning to emerge. These mountains, part of the larger Insular Mountains system, create a dramatic backdrop to the coastal landscape. The area is dotted with numerous small streams and rivers that flow from the higher elevations down to the coast, carving shallow valleys and creating lush riparian zones. The region surrounding Qualicum Beach is heavily forested, primarily with coniferous trees such as Douglas fir, western red cedar, and western hemlock. These dense forests blanket much of the hilly terrain, creating a verdant tapestry that stretches for miles inland.

Potential Areas for Large-Scale Solar PV

When considering areas near Qualicum Beach for large-scale solar photovoltaic (PV) installations, several factors must be taken into account, including available land, sun exposure, and minimal environmental impact. While the region's topography and dense forest cover present some challenges, there are potential areas that could be suitable for solar development: 1. Agricultural lands: The Qualicum Beach area includes some agricultural zones, particularly to the south and southeast. These open, flat areas could potentially accommodate solar arrays without significant land clearing or topographical modifications. 2. Cleared uplands: Some areas in the hills to the west of Qualicum Beach have been previously logged or cleared. These sites, if not slated for reforestation, might offer suitable locations for solar installations, provided they receive adequate sunlight and have reasonable access. 3. Brownfield sites: Any former industrial or commercial sites in the region that are no longer in use could be repurposed for solar energy production, making efficient use of already-developed land. 4. Large rooftops: While not strictly topographical, the roofs of large commercial or industrial buildings in the area could be utilized for solar PV installations, avoiding the need for additional land use. It's important to note that any large-scale solar development in this region would need to carefully consider environmental impacts, including effects on local ecosystems and wildlife. Additionally, the area's climate, characterized by mild but often cloudy weather, may present challenges for solar energy production efficiency. Detailed site-specific studies would be necessary to determine the most suitable locations for solar PV installations in the Qualicum Beach area.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
