Solar PV Analysis of Richmond, Canada
The location in Richmond, British Columbia, Canada is moderately suitable for generating energy using solar photovoltaic (PV) panels year-round. The most productive time to generate solar energy at this location is during the summer, when you can expect about 6.67 kilowatt-hours per day for each kilowatt of installed solar. This high output is due to longer daylight hours and more direct sunlight.
In contrast, autumn and winter see a significant drop in production due to shorter days and less intense sunlight. You can expect about 2.08 kWh/day in the fall and only 1.21 kWh/day in winter per kW of installed solar.
Spring sees an increase again with around 4.67 kWh/day per kW of installed solar as the days start getting longer and sunlight more direct.
To get the most out of your solar PV system throughout the year at this location, it's recommended that your panels are fixed at a tilt angle of 40 degrees facing southwards. This would maximize their exposure to sunlight over the course of a year.
However, there are several local factors that could affect your system’s performance:
1) Weather: Richmond experiences considerable rainfall throughout much of the year which could reduce your panel’s efficiency by blocking sunlight.
2) Topography: The presence of mountains or tall buildings nearby could cast shadows on your panels reducing their sun exposure.
3) Environmental: Dust or other airborne particles can accumulate on your panels over time reducing their effectiveness.
4) Local wildlife: Birds and small animals may cause damage to your panels or wiring affecting their operation.
To mitigate these issues:
1) Regular cleaning will ensure dust or debris does not block sunlight from reaching your panels.
2) If possible install where there will be minimum shadowing during peak sun hours (10 am – 2 pm).
3) Use durable materials for wiring that are resistant to damage from wildlife.
4) Consider using microinverters rather than central inverters. This way if one panel is underperforming due to shade or dirt, it won’t affect the entire system’s performance.
In summary, while Richmond may not be the most ideal location for solar energy production due to its weather and other local factors, with careful planning and maintenance, a solar PV system can still be a viable source of renewable energy throughout much of the year.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Canada by location

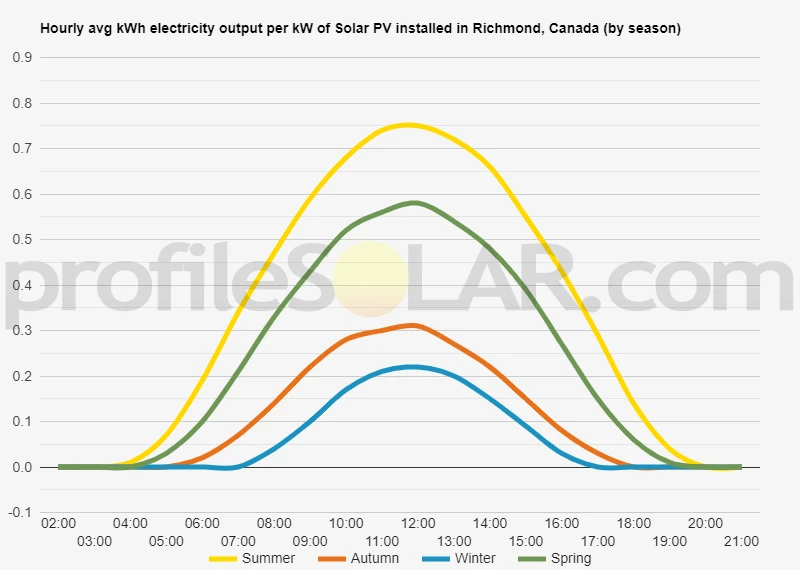

Solar output per kW of installed solar PV by season in Richmond
Seasonal solar PV output for Latitude: 49.1836, Longitude: -123.1164 (Richmond, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 40° South in Richmond, Canada
To maximize your solar PV system's energy output in Richmond, Canada (Lat/Long 49.1836, -123.1164) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Richmond, Canada
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Richmond, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 32° South in Summer | 52° South in Autumn | 63° South in Winter | 41° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Richmond, Canada
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Richmond, Canada.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Richmond, Canada
Richmond, Canada is located in the Lower Mainland region of British Columbia. The city's topography is largely flat, with most areas being at or near sea level. It consists of several islands including Lulu Island, Sea Island and 15 smaller islands. The city is surrounded by the Fraser River to the north and Pacific Ocean to the west.
The flat land makes it suitable for large scale solar PV installations as it allows for easy installation and maximum sunlight exposure without obstruction from hills or mountains.
However, Richmond's suitability for solar energy production also depends on its climate. Being in a coastal temperate rainforest climate zone, Richmond experiences significant cloud cover and rainfall throughout much of the year which could reduce efficiency of a solar PV system.
Nearby areas that might be more suited to large-scale solar PV would be regions with higher amounts of annual sunshine hours and less cloud cover such as interior parts of British Columbia like Kamloops or Okanagan Valley.
Additionally, considering environmental impact and land use compatibility, non-arable lands or rooftops/brownfields in industrial zones could be ideal locations for setting up large-scale solar PV systems within Richmond itself.
It should also be noted that while local topography and climate are important considerations in planning a large-scale photovoltaic project, other factors such as proximity to transmission lines/grid connection points are crucial too.
Canada solar PV Stats as a country
Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Canada?
There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:
1. Federal Tax Incentives:- Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.
- Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
- Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
- British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
- Nova Scotia: Solar Electricity for Community Buildings Program.
Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.
4. Grants and Loans:Some provinces offer grants or low-interest loans for renewable energy projects.
5. Carbon Pricing:The federal carbon pricing system can make solar more competitive compared to fossil fuels.
6. Municipal Incentives:Some cities offer additional incentives or property tax reductions for solar installations.
7. Reduced Operating Costs:While not a direct incentive, businesses can significantly reduce their long-term energy costs.
Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
