Solar Energy Potential in Sayward, British Columbia, Canada

Sayward, British Columbia, Canada, located in the Northern Temperate Zone, presents varied conditions for solar energy generation throughout the year. The solar production potential at this location shows significant seasonal variations that potential solar power system owners should consider.

Seasonal Solar Production

The energy output from solar PV systems in Sayward fluctuates dramatically across the seasons. Summer offers the most favorable conditions with an average daily production of 6.31kWh per kW of installed capacity. Spring follows as the second most productive season, delivering 4.19kWh/day per kW installed. In stark contrast, autumn and winter show much lower production levels. Autumn yields approximately 1.81kWh/day, while winter production drops to just 1.00kWh/day per kW of installed capacity.

Optimal Installation Angle

For fixed solar panel installations in Sayward, British Columbia, the ideal tilt angle to maximize year-round energy production is 41 degrees facing South. This angle has been calculated to optimize annual solar capture based on Sayward's specific geographical position, accounting for the Earth's elliptical orbit and seasonal solar elevation changes.

Environmental and Weather Considerations

Several significant environmental factors could impede solar production in Sayward:

• Heavy precipitation and cloud cover, particularly during fall and winter months, substantially reduce solar radiation reaching panels
• Potential snow accumulation on panels during winter months can block sunlight
• Coastal fog that may roll in from nearby waters, especially in morning hours
• Forest cover and mountains in the region may create shading issues depending on specific installation locations

Preventative Measures

To maximize solar production despite these challenges, consider implementing:

• Self-cleaning panel technologies or regular manual cleaning schedules to remove snow accumulation
• Slightly steeper panel angles than the optimal 41 degrees in areas prone to heavy snowfall to encourage snow sliding off
• Strategic tree trimming or placement to minimize shading
• Micro-inverters or power optimizers to reduce the impact of partial shading
• Weather-resistant equipment rated for coastal environments to prevent salt air corrosion

Conclusion

Sayward's solar potential is heavily concentrated in summer and spring months, with significant drops during fall and winter. This seasonal variability makes it less than ideal for year-round consistent solar production. However, with proper system design focusing on maximizing summer and spring production, and implementing preventative measures against environmental challenges, solar PV can still be a viable supplementary energy source in this location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

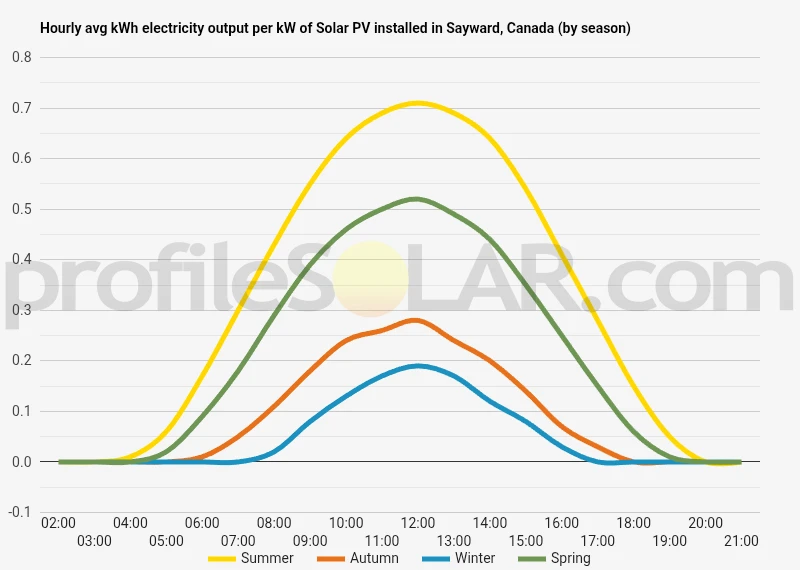

Solar output per kW of installed solar PV by season in Sayward

Seasonal solar PV output for Latitude: 50.381, Longitude: -125.9604 (Sayward, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Sayward, Canada

To maximize your solar PV system's energy output in Sayward, Canada (Lat/Long 50.381, -125.9604) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sayward, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sayward, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	65° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sayward, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sayward, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sayward, Canada

The region surrounding Sayward, situated on the eastern coast of Vancouver Island in British Columbia, Canada, features a dramatic and varied topography characteristic of the Pacific Northwest. Nestled between Johnstone Strait and the mountainous interior of Vancouver Island, Sayward lies within a complex landscape shaped by glacial activity and tectonic forces.

Coastal and Valley Terrain

Sayward sits near the mouth of the Salmon River, in a valley that cuts through the Vancouver Island Ranges. This valley is relatively flat compared to the surrounding terrain, with the river having deposited alluvial soils throughout its floodplain. The immediate coastal areas transition quickly from sea level to rolling hills, creating a narrow band of lowland before the more significant elevations begin.

Mountain Features

The dominant topographical feature around Sayward is the Vancouver Island Ranges, part of the larger Insular Mountains system. These mountains rise steeply from the coastal plains, with numerous peaks exceeding 1,500 meters in elevation within 20-30 kilometers of the coast. The mountains have steep, often forested slopes with numerous valleys carved by rivers and historical glacial movement. The terrain becomes increasingly rugged heading west and south from Sayward.

Potential Solar PV Areas

For large-scale solar photovoltaic development, several areas near Sayward offer potential despite the region's generally mountainous character: The Salmon River Valley presents the most accessible flat terrain in the immediate vicinity of Sayward. Areas of the valley floor that are not subject to flooding or protected as agricultural land could potentially accommodate solar installations. These locations benefit from being relatively clear of mountain shadows during portions of the day. South-facing slopes on the lower elevations of surrounding mountains may offer good solar exposure. Particularly promising are the gentler gradient areas that face south to southwest, as these receive maximum solar radiation in the Northern Hemisphere. However, development on these slopes would require careful engineering to address the gradient challenges. Former logging areas or cleared lands at moderate elevations provide another possibility. Several plateaus and benches exist in the surrounding mountains where the terrain levels out temporarily. These areas often have existing access roads from forestry operations, potentially reducing development costs.

Topographical Limitations

The mountainous nature of the region creates several challenges for large-scale solar development. The steep terrain limits the availability of large, contiguous flat areas needed for major installations. Additionally, the mountains can cast significant shadows, particularly during winter months when the sun angle is lower, potentially reducing generation efficiency. The dense forest cover that characterizes much of the region would necessitate clearing for solar installation, raising both environmental and economic considerations. The region also experiences significant precipitation, which can lead to soil instability on slopes if vegetation is removed.

Conclusion

While the topography around Sayward presents challenges for large-scale solar PV development, certain areas within the Salmon River Valley and on south-facing slopes or plateaus offer potential. Any development would need to carefully balance the topographical limitations with environmental considerations and solar exposure optimization. The most promising locations would likely be previously disturbed areas with good southern exposure and minimal shadowing from the surrounding mountains.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
