Steep Rock, Manitoba, Canada, situated in the Northern Temperate Zone, presents a mixed landscape for solar energy generation throughout the year. The location's potential for solar power production varies significantly across seasons, reflecting the region's diverse climate patterns.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Steep Rock, Manitoba, with an impressive daily output of 6.02 kWh per kW of installed solar capacity. Spring follows closely, generating 5.27 kWh/day. However, the colder months see a substantial decrease in solar efficiency. Autumn yields 2.71 kWh/day, while winter experiences the lowest production at 1.65 kWh/day.

This stark contrast between seasons suggests that Steep Rock's solar potential is heavily concentrated in the warmer months. The long summer days and higher sun angles contribute to peak performance from late spring through early fall, making this the ideal period for solar energy harvesting.

Optimizing Solar Panel Installation

To maximize year-round solar production at this location, fixed solar panels should be tilted at a 44-degree angle facing south. This optimal angle helps capture the most sunlight throughout the year, balancing the lower winter sun with the higher summer sun path.

Environmental and Weather Considerations

Steep Rock's northern location presents some challenges for solar energy production. The region experiences long, cold winters with potential for heavy snowfall, which can significantly reduce panel efficiency. Ice accumulation is another concern that can damage equipment and decrease output.

To mitigate these issues, several preventative measures can be implemented:

• Install panels at a steeper angle to promote snow shedding
• Use snow-resistant panel coatings and frames designed for heavy snow loads
• Implement a regular maintenance schedule for snow and ice removal
• Consider using bifacial panels to capture reflected light from snow, potentially increasing winter production

Additionally, the region may experience periods of overcast weather, particularly in autumn and winter, further reducing solar efficiency. While this cannot be entirely mitigated, using high-efficiency panels and incorporating energy storage solutions can help balance out these fluctuations in production.

In conclusion, while Steep Rock offers excellent solar potential during the warmer months, the significant seasonal variations and harsh winter conditions present challenges. Careful planning and appropriate technology choices can help maximize the location's solar energy potential throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

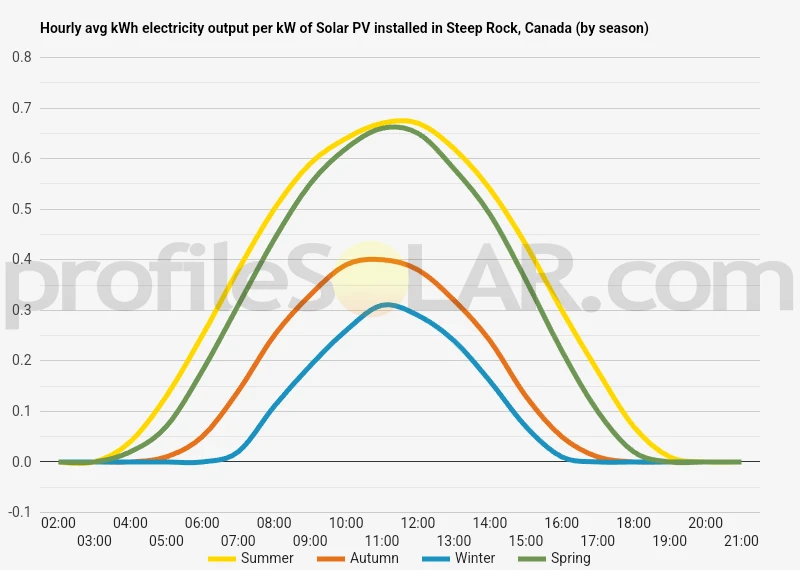

Solar output per kW of installed solar PV by season in Steep Rock

Seasonal solar PV output for Latitude: 51.4309, Longitude: -98.8042 (Steep Rock, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Steep Rock, Canada

To maximize your solar PV system's energy output in Steep Rock, Canada (Lat/Long 51.4309, -98.8042) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Steep Rock, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Steep Rock, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	54° South in Autumn	65° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Steep Rock, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Steep Rock, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Steep Rock, Canada

The topography around Steep Rock, Canada, located at latitude 51.4309 and longitude -98.8042, is characterized by a diverse landscape that reflects the region's glacial history. This area, situated in the province of Manitoba, features a mix of gently rolling hills, flat plains, and numerous small lakes and wetlands. The terrain surrounding Steep Rock is part of the Interlake region, which lies between Lake Manitoba to the west and Lake Winnipeg to the east. The land is generally low-lying, with elevations ranging from about 220 to 280 meters above sea level. The area's most prominent feature is the limestone cliff face along Lake Manitoba's shoreline, from which Steep Rock derives its name.

Topographical Features

The landscape is dotted with aspen parkland, consisting of groves of deciduous trees interspersed with grasslands. Numerous small bodies of water, including ponds and marshes, are scattered throughout the region, creating a mosaic of aquatic and terrestrial habitats. The underlying bedrock is primarily composed of limestone, which has been shaped by glacial activity over thousands of years. The relatively flat terrain is occasionally interrupted by subtle ridges and depressions, remnants of ancient glacial moraines and eskers. These features contribute to the area's unique drainage patterns and soil composition, influencing both natural ecosystems and human land use.

Potential for Solar PV Development

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations for solar farms in this region would possess the following characteristics: Flat or gently sloping terrain: Areas with minimal elevation changes are preferable for easier construction and maintenance of solar panels. The plains and open fields in the region surrounding Steep Rock offer potential sites that meet this criterion. Minimal tree cover: Locations with sparse vegetation, particularly those with fewer tall trees that could cast shadows, are more suitable for solar installations. The grassland portions of the aspen parkland ecosystem provide such open spaces. Proximity to existing infrastructure: Areas close to roads and power transmission lines would be advantageous for connecting solar farms to the grid. The region's agricultural nature means that many areas have basic infrastructure in place. Low flood risk: Higher ground away from wetlands and flood-prone areas would be more suitable for long-term solar installations. The subtle ridges and elevated portions of the landscape could offer appropriate locations. Considering these factors, the most promising areas for large-scale solar PV development near Steep Rock would likely be found on the open agricultural lands to the south and east of the town. These areas generally offer flatter terrain, fewer obstacles, and better access to existing infrastructure, making them potentially suitable for solar farm development, subject to detailed site assessments and environmental impact studies.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
