Steinbach, Manitoba, Canada, situated in the Northern Temperate Zone, presents a mixed landscape for solar energy generation throughout the year. The location's potential for solar power production varies significantly across seasons, reflecting the region's diverse climate patterns.

Seasonal Solar Output

Solar panel efficiency in Steinbach fluctuates dramatically between summer and winter. During the summer months, solar panels can generate an impressive 6.27 kWh per day for each kilowatt of installed capacity. This high output makes summer an ideal time for solar energy production in the area.

Spring follows as the second-most productive season, with panels producing 5.35 kWh per day. As days lengthen and temperatures rise, spring offers excellent conditions for solar energy generation.

Autumn sees a significant drop in solar output, with panels generating 2.84 kWh per day. This decrease is due to shorter days and increased cloud cover typical of the season.

Winter presents the greatest challenge for solar energy production in Steinbach, Manitoba, with panels generating only 1.87 kWh per day. The combination of short days, low sun angle, and potential snow cover contributes to this reduced output.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Steinbach, Manitoba, fixed solar panels should be installed at a tilt angle of 43 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental Considerations

While Steinbach's location is generally favorable for solar energy, there are some environmental factors that could impact solar production:

• Snow accumulation during winter months can significantly reduce panel efficiency
• Occasional severe weather events, such as hailstorms, may pose a risk to solar installations

To mitigate these challenges, consider installing panels at a steeper angle to promote snow shedding and using impact-resistant solar panels to withstand potential hail damage. Regular maintenance, including snow removal when necessary, can help ensure consistent energy production throughout the year.

Despite these challenges, with proper installation and maintenance, Steinbach's location can still provide substantial solar energy generation, particularly during the spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

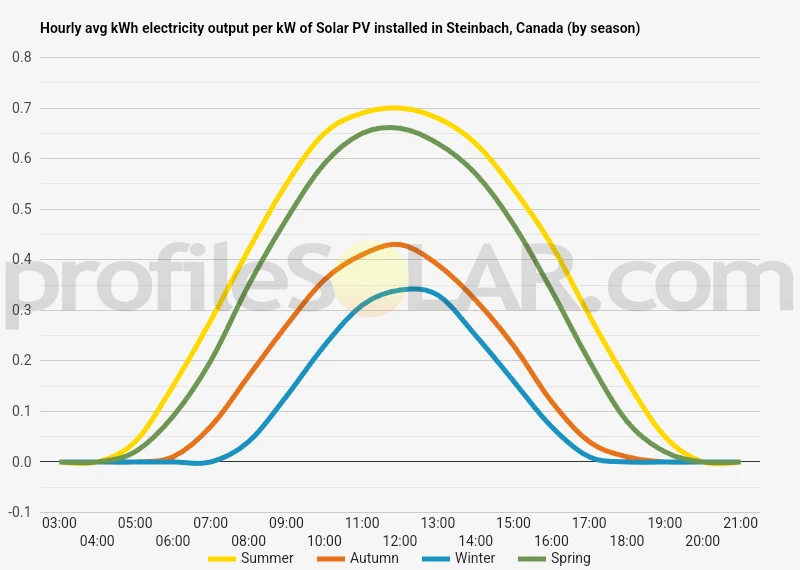

Solar output per kW of installed solar PV by season in Steinbach

Seasonal solar PV output for Latitude: 49.5291, Longitude: -96.6852 (Steinbach, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 6.27kWh/day in Summer.

Average 2.84kWh/day in Autumn.

Average 1.87kWh/day in Winter.

Average 5.35kWh/day in Spring.

Ideally tilt fixed solar panels 43° South in Steinbach, Canada

To maximize your solar PV system's energy output in Steinbach, Canada (Lat/Long 49.5291, -96.6852) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 49.5291, Longitude: -96.6852, the ideal angle to tilt panels is 43° South

Seasonally adjusted solar panel tilt angles for Steinbach, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Steinbach, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Steinbach, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Steinbach, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Steinbach, Canada

The area around Steinbach, Canada, is characterized by relatively flat terrain typical of the Canadian Prairies. This region, located in southeastern Manitoba, is part of what's known as the Interior Plains. The landscape is generally level to gently rolling, with subtle elevation changes across the area.

The topography near Steinbach features wide-open spaces with occasional small hills and shallow depressions. The land is predominantly used for agriculture, with fields stretching out in all directions. You'll find scattered woodlots and small patches of forest, particularly along rivers and streams. The nearby Sandilands Provincial Forest to the southeast introduces some slightly more varied terrain, with sand ridges and small hills covered in mixed forests.

Water features in the area include several small creeks and the Seine River, which flows northwest of Steinbach. These waterways have carved shallow valleys into the otherwise flat landscape. To the west, you'll find larger bodies of water like Lake Winnipeg, though these are some distance from Steinbach itself.

For large-scale solar PV installations, the areas most suited would be the open agricultural lands surrounding Steinbach. These locations offer several advantages:

1. Flat terrain: The level ground makes construction and installation easier and more cost-effective.
2. Minimal shading: With few tall structures or geographical features, there's little to obstruct sunlight.
3. Abundant space: The expansive farmlands provide ample room for large solar arrays.
4. Good solar exposure: The open prairie landscape receives substantial sunlight throughout the year.

Ideal sites would be on non-productive or marginal agricultural land, avoiding prime farmland. Areas to the south and west of Steinbach might be particularly suitable, as they would have good sun exposure throughout the day. However, it's important to consider factors like proximity to electrical infrastructure, local zoning regulations, and environmental impact when selecting specific sites for solar PV development.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

Some provinces offer grants or low-interest loans for renewable energy projects.

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

Some cities offer additional incentives or property tax reductions for solar installations.

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
