Sturgeon Falls, Ontario, Canada, located at latitude 46.3685 and longitude -79.9156 in the Northern Temperate Zone, presents a mixed opportunity for solar PV energy generation throughout the year. The location experiences significant seasonal variations in solar energy production, with substantial differences between summer and winter output.

Seasonal Solar Production

Solar energy generation in Sturgeon Falls shows marked seasonal patterns. Summer is the most productive period, yielding 5.81 kWh per day for each kilowatt of installed capacity. Spring follows closely behind with 5.01 kWh/day. However, production drops considerably during autumn to 2.63 kWh/day, and reaches its lowest point in winter with just 1.68 kWh/day per installed kilowatt.

This pattern creates a roughly 3.5-fold difference between the best and worst seasons, indicating that while solar is viable year-round, its reliability as a consistent energy source varies significantly throughout the year.

Optimal Panel Installation

For fixed-panel installations in Sturgeon Falls, Ontario, the ideal tilt angle to maximize year-round solar production is 40 degrees facing South. This angle optimizes the capture of available sunlight across all seasons, balancing between the lower winter sun angle and higher summer sun position.

Environmental and Weather Considerations

Several environmental factors could affect solar production in Sturgeon Falls:

• Snow accumulation during winter months can significantly reduce panel output if not addressed, particularly given the already low winter production figures
• Frequent cloud cover in the region, especially during fall and winter
• Potential for tree shading in this forested region
• Occasional fog from nearby Lake Nipissing

Preventative Measures

To maximize solar energy production despite these challenges, several preventative measures can be implemented:

• Install panels at the recommended 40-degree tilt, which also helps shed snow more effectively
• Consider snow removal systems or manual clearing procedures for winter months
• Conduct thorough site assessment to avoid tree shading, particularly from the south
• Use high-efficiency panels rated for northern climate performance
• Implement microinverters or power optimizers to minimize the impact of partial shading

While Sturgeon Falls isn't ideal for year-round consistent solar production, proper system design can still yield satisfactory results, particularly when planned with seasonal variations in mind. The substantial summer and spring production can offset the limited winter generation if the system is appropriately sized.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

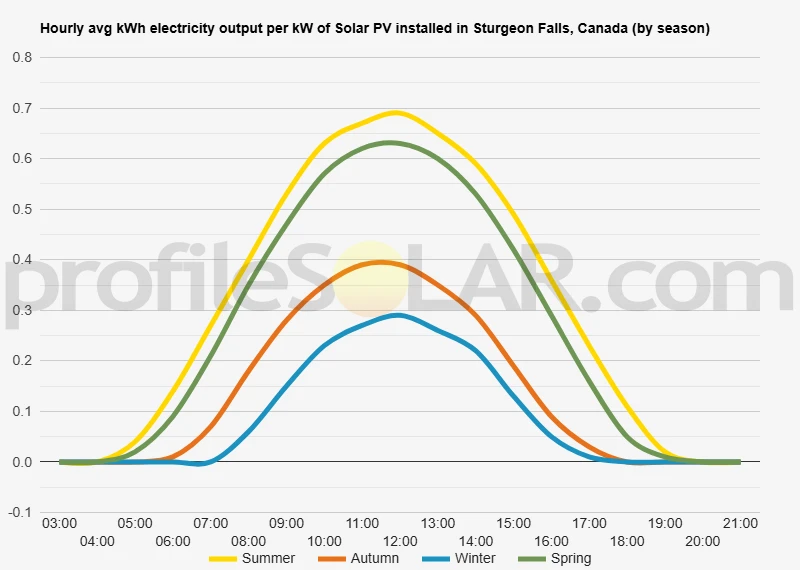

Solar output per kW of installed solar PV by season in Sturgeon Falls

Seasonal solar PV output for Latitude: 46.3685, Longitude: -79.9156 (Sturgeon Falls, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Sturgeon Falls, Canada

To maximize your solar PV system's energy output in Sturgeon Falls, Canada (Lat/Long 46.3685, -79.9156) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sturgeon Falls, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sturgeon Falls, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	50° South in Autumn	60° South in Winter	38° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sturgeon Falls, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sturgeon Falls, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sturgeon Falls, Canada

The area around Sturgeon Falls, Ontario, Canada, is characterized by a diverse and picturesque landscape typical of the Canadian Shield region. Situated at the western edge of Lake Nipissing, Sturgeon Falls exists within a transitional zone between the rugged Canadian Shield and the more gentle Great Lakes-St. Lawrence Lowlands.

Landscape Features

The topography surrounding Sturgeon Falls is moderately varied, with rolling hills, scattered rock outcroppings, and numerous water bodies. The terrain generally slopes gently toward Lake Nipissing, which forms a significant geographical feature to the east of the community. The Sturgeon River runs through the area, creating a natural corridor and valley system that influences the local topography. Elevation in the region typically ranges between 200 and 300 meters above sea level, with modest hills rather than dramatic mountains characterizing the landscape. The Canadian Shield geology is evident in exposed bedrock formations, though these are less pronounced than in areas further north. Mixed forests of coniferous and deciduous trees cover much of the undeveloped land, with pine, spruce, maple, and birch being common species.

Potential Solar PV Sites

For large-scale solar photovoltaic development near Sturgeon Falls, several factors must be considered including terrain, aspect (direction of slope), existing land use, and proximity to transmission infrastructure. The most suitable areas for solar PV development would be: The relatively flat agricultural lands south and southwest of Sturgeon Falls offer promising potential. These areas have undergone historical clearing for agriculture, resulting in open spaces with minimal shading concerns. The gentle topography in this direction would require less grading and site preparation compared to more rugged terrain. Elevated plateaus and cleared ridges to the west and northwest of Sturgeon Falls present another opportunity. These higher elevation sites often receive good solar exposure throughout the day with minimal obstruction from surrounding features. Some of these areas have already been disturbed by forestry or other development activities, potentially reducing environmental concerns about new development. Former industrial sites or brownfields in the broader region could be repurposed for solar development. The area has some history of resource extraction and industrial activity, potentially providing pre-disturbed sites with existing infrastructure connections.

Topographical Challenges

While there are suitable areas, the region does present some challenges for solar development. The Canadian Shield landscape includes numerous small lakes, wetlands, and waterways that fragment potential development areas. Additionally, the mixed forest coverage would require clearing for large installations, raising potential environmental and permitting concerns. Winter conditions in the region include significant snowfall, which can accumulate on solar panels. The moderately varied topography means that some sites may experience shading during winter months when the sun angle is lower. However, sites on south-facing slopes would mitigate this issue somewhat. The proximity to Lake Nipissing influences local climate conditions, occasionally creating fog or localized cloud cover that might temporarily reduce solar exposure in areas closest to the lake shore. Sites further inland from the lake would generally experience less of this effect.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
