Sylvan Lake, located in Alberta, Canada, experiences varying solar energy generation potential throughout the year. This location in the Northern Temperate Zone shows significant seasonal fluctuations in solar photovoltaic (PV) electricity production.

Seasonal Solar Production

Solar panels at Sylvan Lake produce their highest output during summer months, generating approximately 6.34kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.99kWh/day per kW installed.

The colder months show a substantial decrease in energy production. Autumn yields about 2.70kWh/day, while winter experiences the lowest output at just 1.43kWh/day per kW of installed capacity.

This pattern creates a more than four-fold difference between summer and winter production, which is typical for northern locations but requires consideration when sizing a system for year-round needs.

Optimal Panel Installation

For a fixed panel installation at Sylvan Lake, the ideal angle to tilt panels to maximize total year-round production is 45 degrees facing South. This angle represents the best compromise to capture adequate sunlight across all seasons, particularly helping to improve winter production when the sun's path is lower in the sky.

Environmental Challenges

Several environmental factors can impact solar production at this location:

• Snow accumulation presents a significant challenge during winter months, potentially covering panels and reducing or eliminating production. Installing panels at the steeper 45-degree angle helps with natural snow shedding, and occasional manual clearing may be necessary.
• Extended periods of cloud cover during winter and fall can further reduce the already lower seasonal output.
• Extremely cold temperatures, while actually improving panel efficiency, can create issues with other system components like inverters and batteries, requiring proper cold-weather rated equipment.

Preventative measures include using micro-inverters or power optimizers to minimize the impact of partial panel shading, installing snow guards or heating elements for critical systems, and ensuring proper cold-weather rated components throughout the system.

Despite these challenges, a properly designed solar PV system can still provide significant energy contribution at this location, particularly from March through October when production levels are most favorable.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

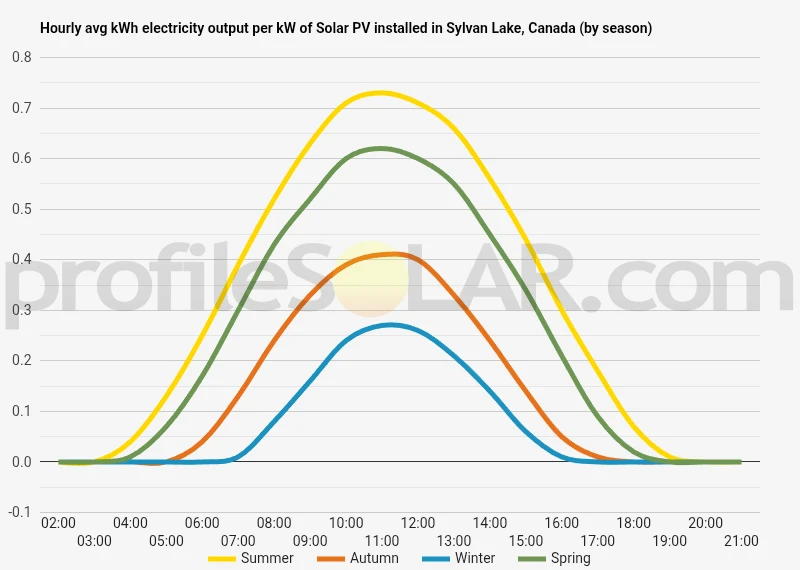

Solar output per kW of installed solar PV by season in Sylvan Lake

Seasonal solar PV output for Latitude: 52.3168, Longitude: -114.0853 (Sylvan Lake, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Sylvan Lake, Canada

To maximize your solar PV system's energy output in Sylvan Lake, Canada (Lat/Long 52.3168, -114.0853) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sylvan Lake, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sylvan Lake, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	55° South in Autumn	66° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sylvan Lake, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sylvan Lake, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sylvan Lake, Canada

Sylvan Lake, situated in central Alberta, Canada, finds itself nestled within a gently rolling landscape characteristic of the province's parkland region. The topography surrounding Sylvan Lake features a pleasant mix of undulating plains and modest hills, creating a transitional zone between Alberta's flat prairies to the east and the more dramatic Rocky Mountains to the west. The lake itself sits at an elevation of approximately 937 meters above sea level, with the surrounding terrain gradually rising and falling in a series of gentle swells. This area represents what geographers call the Alberta Plains, which form part of the larger Interior Plains of North America. The landscape has been shaped by glacial activity during the last ice age, resulting in a terrain dotted with small depressions, shallow valleys, and occasional low ridges.

Immediate Surroundings

In the immediate vicinity of Sylvan Lake, the land exhibits relatively mild elevation changes. The town itself spreads along the lake's northeastern shore, with residential and commercial development following the natural contours of the land. Moving away from the lake in any direction, the countryside opens into a patchwork of agricultural fields, pastures, and scattered woodlots. To the north and east of Sylvan Lake, the terrain maintains its gently rolling character, with broad, open spaces interrupted by occasional stands of aspen and spruce. These areas feature good drainage patterns with subtle slopes that prevent water accumulation while avoiding steep inclines.

Regional Context

Looking at the broader regional context, Sylvan Lake sits approximately 160 kilometers north of Calgary and about 25 kilometers west of Red Deer. The landscape becomes progressively flatter moving eastward toward the true prairie regions, while westward, the terrain gradually gains elevation and becomes more varied as it approaches the foothills of the Rocky Mountains. The Red Deer River valley, located to the east, represents one of the more significant topographical features in the vicinity, carving a broader depression through the otherwise moderately uniform terrain.

Optimal Areas for Solar PV Development

When considering locations near Sylvan Lake for large-scale solar photovoltaic installations, several areas stand out as particularly promising based on topographical considerations: The gently sloping agricultural lands to the east and southeast of Sylvan Lake present excellent opportunities for solar development. These areas benefit from subtle south-facing inclines that maximize solar exposure while offering minimal topographical challenges for construction and maintenance. The relatively open landscape in this direction also means fewer natural obstructions that might create shading issues. The slightly elevated plateaus to the north of Sylvan Lake also merit consideration. While these areas experience marginally cooler temperatures due to their northern aspect, they compensate with expansive, uninterrupted spaces that would allow for efficient panel arrangement and minimal grading requirements. Areas to avoid would include the immediate lakeshore, which has higher value for recreation and residential development, as well as the more heavily wooded sections to the northwest, where clearing would be environmentally disruptive and economically challenging. The agricultural lands between Sylvan Lake and Red Deer represent perhaps the optimal balance of favorable topography, proximity to existing electrical infrastructure, and appropriate land use patterns. These areas feature gentle slopes, good drainage characteristics, and relatively consistent soil conditions that would simplify the engineering requirements for large-scale installations. In summary, the modest, rolling topography surrounding Sylvan Lake provides numerous suitable locations for solar energy development, with the most promising sites being the open agricultural lands to the east and southeast, where the natural contours of the land complement the technical requirements of large-scale solar arrays.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
