Terrace Bay, Ontario, Canada presents significant challenges for year-round solar energy generation, making it a less than ideal location for consistent solar PV production throughout the calendar year.

Seasonal Solar Performance

The solar energy output at this Northern Temperate Zone location varies dramatically between seasons. Summer months deliver the strongest performance at 6.11 kWh per day per kW of installed solar capacity, making this the prime season for solar generation. Spring follows as the second-best period with 4.98 kWh per day per kW, offering good energy production as daylight hours increase. However, the location faces considerable challenges during colder months. Autumn production drops substantially to 2.55 kWh per day per kW, while winter presents the most significant obstacle with only 1.33 kWh per day per kW of output.

Optimal Panel Configuration

For fixed panel installations at Terrace Bay, Ontario, the ideal tilt angle is 41 degrees facing south to maximize total year-round solar production. This angle optimization takes into account the weighted daily solar potential throughout the year and accounts for Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several significant local factors can impede solar production at this northern Canadian location:

• Heavy snow accumulation during extended winter months can completely block solar panels
• Ice formation on panel surfaces reduces light transmission and energy output
• Frequent cloud cover and overcast conditions common in northern climates
• Extreme cold temperatures can affect equipment performance and battery efficiency

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove beneficial:

• Install panels at steeper angles (potentially beyond the 41-degree optimum) to encourage snow shedding
• Implement heating elements or snow removal systems for critical installations
• Use cold-weather rated equipment and batteries designed for extreme temperature fluctuations
• Position panels in locations with maximum southern exposure and minimal shading from trees or structures
• Consider ground-mounted systems that allow easier access for snow removal and maintenance

The dramatic seasonal variation makes Terrace Bay most suitable for solar installations designed to maximize summer production, with backup power systems essential for reliable year-round energy needs.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

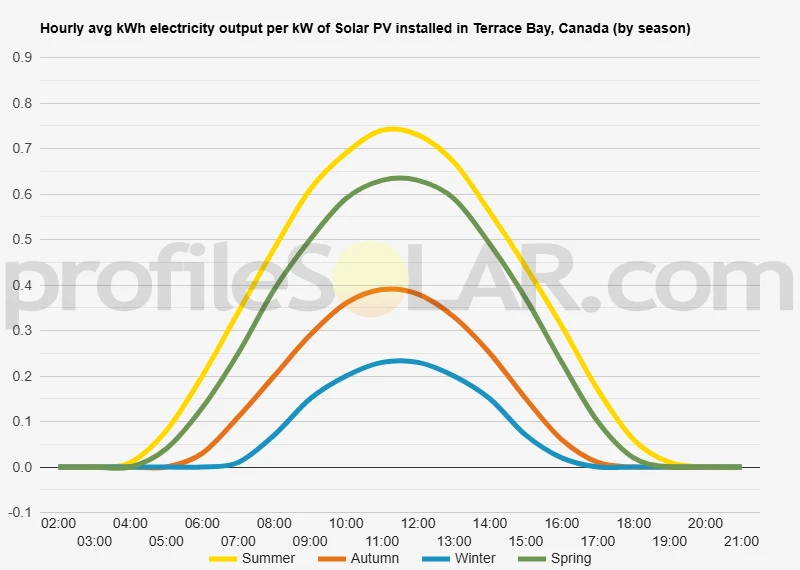

Solar output per kW of installed solar PV by season in Terrace Bay

Seasonal solar PV output for Latitude: 48.7848, Longitude: -87.1057 (Terrace Bay, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Terrace Bay, Canada

To maximize your solar PV system's energy output in Terrace Bay, Canada (Lat/Long 48.7848, -87.1057) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Terrace Bay, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Terrace Bay, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	52° South in Autumn	63° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Terrace Bay, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Terrace Bay, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Terrace Bay, Canada

Topographical Features of Terrace Bay

Terrace Bay sits along the rugged northern shoreline of Lake Superior in northwestern Ontario, where the Canadian Shield meets the world's largest freshwater lake. The community is positioned on relatively flat terrain that extends inland from the lake, with the landscape characterized by the ancient granite and gneiss bedrock typical of the Precambrian Shield. This coastal plain provides a stable foundation, though it is intersected by several small rivers and creeks that flow northward into Lake Superior. The immediate area around Terrace Bay features a series of natural terraces that give the town its name, rising gradually from the lakeshore toward the interior. These step-like formations were carved by ancient glacial activity and subsequent lake level changes over thousands of years. The elevation rises modestly from the shoreline, creating a gently undulating landscape that extends several kilometers inland before encountering more significant topographical changes.

Regional Landscape Characteristics

Moving inland from Terrace Bay, the terrain becomes increasingly varied as the boreal forest takes hold. The landscape is dotted with numerous small lakes, wetlands, and rocky outcroppings that are hallmarks of the Canadian Shield. Rolling hills become more prominent as distance from Lake Superior increases, though these elevations remain relatively modest compared to mountainous regions. The bedrock frequently breaks through the thin soil cover, creating exposed granite surfaces that are common throughout this part of Ontario. The forest cover in the region is predominantly boreal, consisting mainly of black spruce, balsam fir, white birch, and aspen. This vegetation pattern creates a mixed canopy that varies in density depending on soil conditions, drainage, and previous disturbance from logging or natural events. Numerous rivers and streams traverse the landscape, flowing generally northward toward Lake Superior and creating valleys and drainage corridors that break up the otherwise relatively uniform topography.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations near Terrace Bay would be the relatively flat, open areas that extend inland from the immediate shoreline. These zones offer the advantage of minimal grading requirements while avoiding the immediate coastal zone where fog and weather extremes from Lake Superior could impact performance. The natural terraces that characterize the area provide excellent drainage, which is crucial for foundation stability and long-term infrastructure maintenance. Areas that have been previously logged or naturally cleared would be particularly advantageous for solar development, as they would require minimal forest clearing while still providing the necessary open space for panel arrays. The exposed bedrock areas common throughout the region, while requiring careful engineering consideration, could provide exceptionally stable foundations for mounting systems when properly developed. The gentle inland slopes facing south or southwest would be ideal for maximizing solar exposure while maintaining manageable construction conditions. These areas typically feature good road access due to historical logging activities, which would facilitate both construction and ongoing maintenance operations. The well-drained soils and solid bedrock foundation characteristic of the Canadian Shield provide excellent conditions for large-scale infrastructure development. Locations situated away from the immediate wetland areas and major drainage corridors would be preferable to minimize environmental impact while still taking advantage of the region's relatively stable climate patterns. The higher elevation areas inland from the lake would also benefit from reduced fog influence and potentially clearer atmospheric conditions for optimal solar collection.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
