Solar Energy Potential in Terrace, British Columbia, Canada

Terrace, British Columbia, Canada, located at latitude 54.5154 and longitude -128.6042 in the Northern Temperate Zone, presents a challenging environment for year-round solar energy generation. The seasonal variations in solar output are significant, with summer being the most productive period and winter the least.

During the summer months, solar panels in Terrace can generate an impressive 5.16 kWh per day for each kilowatt of installed capacity. This high output is due to long daylight hours and more direct sunlight. Spring follows as the second most productive season, with 3.80 kWh/day, as daylight hours increase and snow cover diminishes.

However, autumn and winter present considerable challenges for solar energy production in Terrace. Autumn sees a sharp decline to 1.43 kWh/day, while winter output drops dramatically to a mere 0.78 kWh/day per installed kilowatt. These low figures are primarily due to shorter daylight hours, lower sun angles, and increased cloud cover.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Terrace, British Columbia, fixed solar panels should be installed at a 45-degree angle facing south. This tilt angle is calculated to capture the most sunlight throughout the year, considering the location's latitude and seasonal sun positions.

Environmental and Weather Factors

Several environmental and weather factors can significantly impact solar energy production in Terrace:

• Heavy snowfall: Terrace experiences substantial snowfall, which can cover solar panels and reduce efficiency.
• Cloud cover: The region is known for frequent overcast conditions, particularly in autumn and winter.
• Short winter days: Being in the Northern Temperate Zone, Terrace has very short days during winter, limiting solar exposure.

Preventative Measures

To mitigate these challenges and ensure greater energy production, consider the following measures when installing solar panels in Terrace:

Install panels at a steeper angle (45 degrees or more) to promote snow sliding off. Use snow-shedding coatings on panels to further reduce snow accumulation. Implement a regular panel cleaning schedule, especially after heavy snowfall. Consider using bifacial solar panels to capture reflected light from snow, potentially increasing winter production. Lastly, integrating a battery storage system can help balance the seasonal variations in energy production, ensuring a more consistent power supply throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

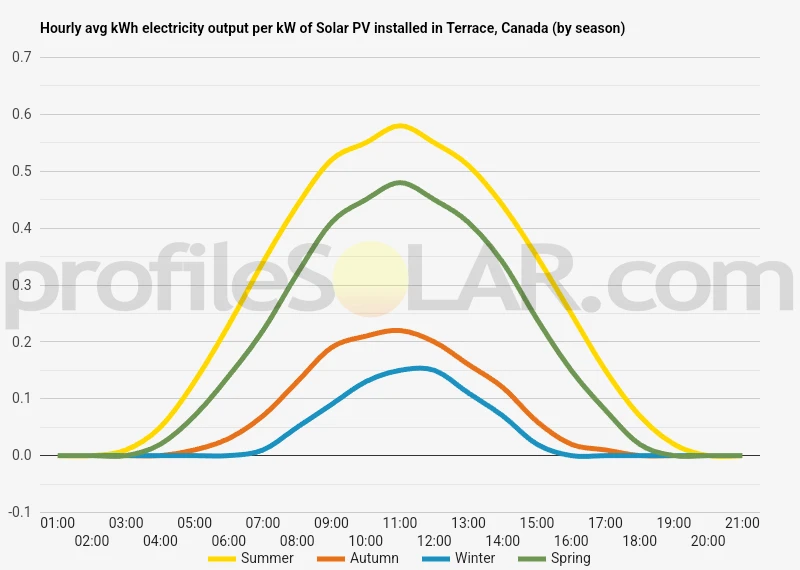

Solar output per kW of installed solar PV by season in Terrace

Seasonal solar PV output for Latitude: 54.5154, Longitude: -128.6042 (Terrace, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.16kWh/day in Summer.

Average 1.43kWh/day in Autumn.

Average 0.78kWh/day in Winter.

Average 3.80kWh/day in Spring.

Ideally tilt fixed solar panels 45° South in Terrace, Canada

To maximize your solar PV system's energy output in Terrace, Canada (Lat/Long 54.5154, -128.6042) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 54.5154, Longitude: -128.6042, the ideal angle to tilt panels is 45° South

Seasonally adjusted solar panel tilt angles for Terrace, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Terrace, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Terrace, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Terrace, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Terrace, Canada

The area around Terrace, Canada, is characterized by diverse and rugged topography typical of northwestern British Columbia. Situated in the Skeena Valley, Terrace is surrounded by impressive mountain ranges and lush forests, creating a picturesque landscape.

The city itself lies on a terrace-like plateau, which gives it its name. This relatively flat area is nestled between the Skeena River to the south and the steep slopes of Terrace Mountain to the north. The terrain rises gradually from the river valley, with the downtown core sitting at an elevation of about 60 meters (200 feet) above sea level.

Moving outward from the city center, the landscape becomes more varied and dramatic. To the east and west, the Skeena Valley stretches along the meandering Skeena River, flanked by rolling hills and mountains. The Coastal Mountains dominate the southern horizon, with snow-capped peaks visible on clear days. To the north, the landscape becomes increasingly mountainous, with rugged peaks and deep valleys characteristic of the Kitimat Ranges.

When considering areas nearby that might be suitable for large-scale solar PV installations, several factors come into play. The mountainous terrain and dense forests surrounding Terrace present challenges for finding expansive, flat areas ideal for solar farms. However, there are some potential locations worth exploring:

1. The terrace-like plateau on which the city sits may offer some suitable areas, particularly on the outskirts where there is less urban development. These relatively flat spaces could accommodate solar panels, though careful consideration would need to be given to avoid conflicts with existing land uses.

2. Some of the gentler slopes and clearings in the surrounding hills might be adaptable for solar installations. While not as ideal as perfectly flat terrain, modern solar panel mounting systems can be engineered to work on mild gradients.

3. The Skeena Valley, particularly areas east and west of Terrace along the river, may have pockets of open, relatively flat land that could be suitable for solar farms. These areas would need to be carefully assessed for flood risk and other environmental considerations.

4. Reclaimed industrial sites or former logging areas in the vicinity could potentially be repurposed for solar energy production, providing they offer sufficient space and suitable topography.

It's important to note that while topography is a crucial factor in siting solar PV installations, other considerations such as solar irradiance, grid connectivity, land ownership, and environmental impact must also be taken into account. Additionally, the region's climate, characterized by significant cloud cover and precipitation, may present challenges for solar energy production, necessitating careful analysis of the potential energy yield before undertaking any large-scale projects.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

Some provinces offer grants or low-interest loans for renewable energy projects.

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

Some cities offer additional incentives or property tax reductions for solar installations.

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
