Teulon, Manitoba, Canada presents a mixed picture for year-round solar energy generation, with significant seasonal variations that are typical of its northern temperate location.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 6.00 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring also offers good production levels at 5.13 kWh per day per kW, creating a solid shoulder season for energy generation. However, the colder months present challenges. Autumn drops to 2.66 kWh per day per kW, while winter reaches its lowest point at just 1.72 kWh per day per kW. This means winter solar output is less than 30% of summer production levels.

Optimal Panel Configuration

For maximum year-round energy production at Teulon, Manitoba, solar panels should be installed at a fixed tilt angle of 43 degrees facing south. This angle is calculated to optimize total annual output by accounting for the sun's changing position throughout the seasons and the varying solar irradiance levels at this latitude.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production in Teulon:

• Snow accumulation: Heavy winter snowfall can completely block solar panels, eliminating energy production until cleared
• Ice formation: Freezing rain and ice storms can create thick ice layers that reduce light transmission
• Extended cloudy periods: Prairie winter weather patterns often bring prolonged overcast conditions
• Extreme cold temperatures: While solar panels actually work more efficiently in cold weather, extreme temperatures can affect system components

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies can help: Installing panels at the recommended 43-degree tilt angle naturally helps snow slide off more easily than flatter installations. The steep angle works with gravity to clear light snow accumulations automatically. Selecting panels with smooth, dark surfaces and anti-reflective coatings can help with ice and snow shedding. Some installers also recommend leaving adequate spacing between panels and roof surfaces to allow for better air circulation and easier maintenance access. Installing heating elements or snow-melting systems around panel edges can help clear persistent ice and snow, though this adds to system costs and complexity. Regular maintenance scheduling during winter months becomes crucial for optimal performance. Proper electrical component selection rated for extreme cold temperatures ensures system reliability during harsh prairie winters. Using microinverters or power optimizers can also help maintain production when some panels are partially covered while others remain clear.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

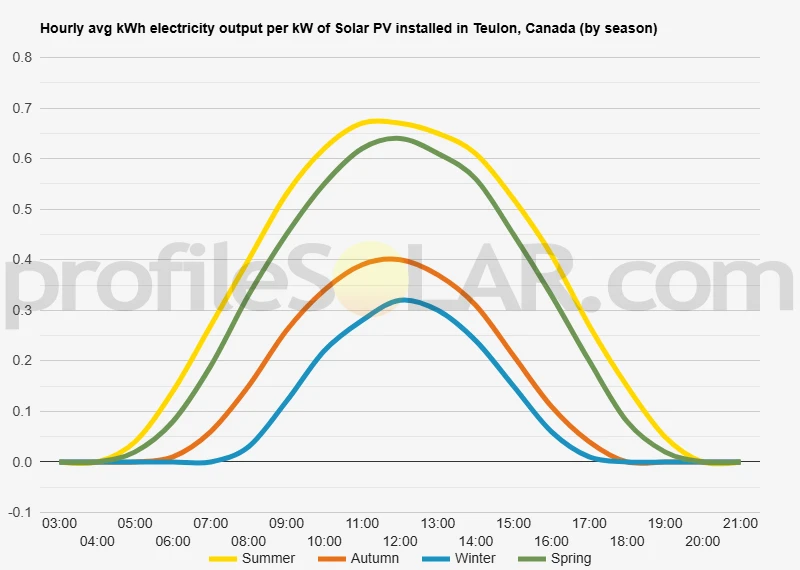

Solar output per kW of installed solar PV by season in Teulon

Seasonal solar PV output for Latitude: 50.3837, Longitude: -97.2726 (Teulon, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Teulon, Canada

To maximize your solar PV system's energy output in Teulon, Canada (Lat/Long 50.3837, -97.2726) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Teulon, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Teulon, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	53° South in Autumn	64° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Teulon, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Teulon, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Teulon, Canada

Topography Around Teulon, Manitoba

The landscape surrounding Teulon in Manitoba is characterized by relatively flat to gently rolling prairie terrain typical of the Canadian prairies. This region sits within the Red River Valley lowlands, which extends across much of southern Manitoba. The topography consists primarily of agricultural land with modest elevation changes, creating an expansive, open environment with few significant geographic barriers. The area features fertile clay and silt soils deposited by ancient glacial Lake Agassiz, resulting in predominantly flat agricultural fields interspersed with small wetlands and drainage ditches. Small creeks and seasonal waterways meander through the landscape, but these water features are generally shallow and do not create significant topographical variations. The terrain gradually rises toward the west, though elevation changes remain modest throughout the region. Scattered farmsteads, woodlots, and small clusters of trees break up the otherwise open prairie landscape. These wooded areas are typically found along waterways or property boundaries and consist mainly of deciduous trees like aspen and oak, along with some evergreen species. The overall impression is one of vast, open spaces with clear sightlines extending for considerable distances in all directions.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling topography around Teulon presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable locations would be the extensive agricultural areas south and west of the community, where the terrain is particularly level and offers minimal shading obstacles. These areas provide the large, contiguous parcels of land necessary for utility-scale solar farms while maintaining good access to existing electrical infrastructure. Areas with southern-facing slopes, even gentle ones, would be particularly advantageous as they naturally optimize solar panel orientation. The agricultural fields extending toward the communities of Stonewall and Warren offer some of the most promising sites, combining favorable topography with proximity to transmission lines and road access for construction and maintenance activities. The relatively treeless nature of much of the surrounding farmland eliminates concerns about shading from vegetation, while the stable soil conditions provide good foundation support for solar mounting systems. Areas closer to existing electrical substations and transmission corridors would be preferable to minimize interconnection costs and infrastructure requirements. Land parcels away from the scattered farmsteads and residential areas would be most suitable, as this would minimize any visual impact concerns while taking advantage of the region's excellent solar resource potential. The consistent, moderate topography throughout the area means that multiple suitable sites exist, providing flexibility in site selection based on land availability and ownership considerations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
