Location estimate

Thorold

Ontario · Canada

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

6.16

kWh/day

Autumn

3.10

kWh/day

Winter

1.81

kWh/day

Spring

5.25

kWh/day

Shared scale: 0–7.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Thorold, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 6.16 6.16 × 1 kWp = 6.16 kWh/day
Autumn 3.10 3.10 × 1 kWp = 3.10 kWh/day
Winter 1.81 1.81 × 1 kWp = 1.81 kWh/day
Spring 5.25 5.25 × 1 kWp = 5.25 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
6.16
Autumn · kWh/day
3.10
Winter · kWh/day
1.81
Spring · kWh/day
5.25

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 37 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
37°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
27°South
Autumn
Sep, Oct, Nov
46°South
Winter
Dec, Jan, Feb
57°South
Spring
Mar, Apr, May
36°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Thorold, Ontario, Canada.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 27 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

27° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 46 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

46° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 57 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

57° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 36 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

36° tilt · South

Illustrative direction; exact azimuth not recorded.

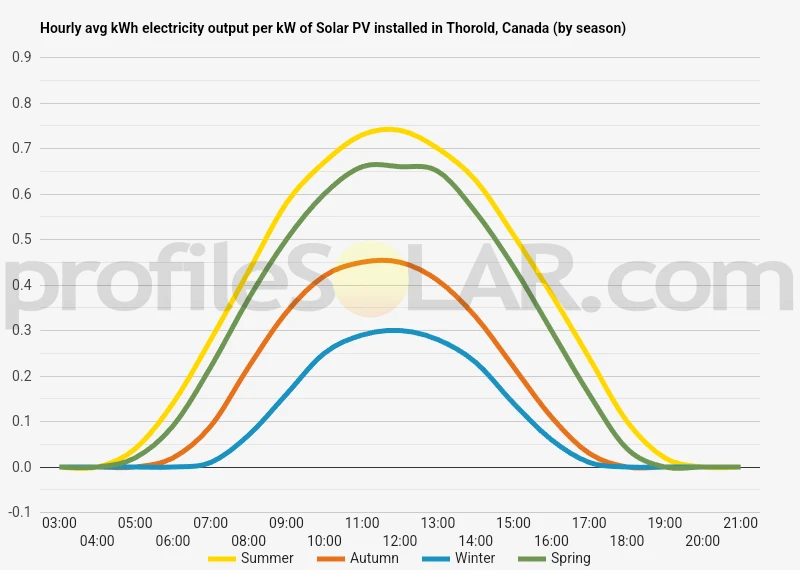

Historical hourly-by-season solar output chart for Thorold, Canada. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Thorold, Canada

Hourly profiles by season — Thorold, Canada · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Thorold, Canada · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Thorold

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 4.37 m

Proportional side viewDesign sun: ≈ 23.44° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 2.78 m
Added margin
≈ 0 m
Gap including margin
≈ 2.78 m
Panel horizontal footprint
≈ 1.6 m
Panel vertical rise
≈ 1.2 m
Pitch before margin
≈ 4.37 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
37°
Added margin
0 m
Latitude from the catalogue
43.112700000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.5972710200945857 m
Panel vertical rise
1.2036300463040965 m
Calculated clear gap
2.776435632095391 m
Pitch before margin
4.373706652189977 m
Gap including margin
2.776435632095391 m
Row pitch including margin
4.373706652189977 m
Design solar elevation
23.437517153186352°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Thorold

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Thorold's solar profile has a strong summer peak and a substantial spring contribution. Estimated average daily electricity yields are 6.16 kWh/day per kW of rated capacity in summer, 5.25 in spring, 3.10 in autumn and 1.81 in winter. The spring figure is much closer to summer than to winter, so the annual contribution extends beyond the peak season. A property's electricity-use assessment should nevertheless retain the lower autumn and winter values, particularly where demand rises during the colder part of the year.

Read the full article

Longer days and a higher solar path give summer a larger generation window. In winter, the shorter window makes the position of any obstruction more consequential. Thorold's combination of escarpment relief, established neighbourhoods and canal infrastructure means that the view from the intended panel position matters. The skyline and nearby trees or buildings should be checked through the seasonal sun path rather than inferred from the general openness of the Niagara landscape. The recorded fixed-panel reference is 37 degrees facing South. It is a broad output-weighted result from simplified solar geometry, useful for comparing arrangements across the year. Existing roof pitch and structure can favour a different buildable layout, while raised rows on a level roof need enough separation to limit shading of the rows behind. A south-facing roof should therefore be compared with other usable roof areas using the actual shade pattern and expected production period. Snow covering a module can interrupt generation. Supports also need to accommodate the applicable snow and wind loads, and safe maintenance access is part of the arrangement. A steeper frame changes loading and row spacing as well as snow shedding, so it should not be selected solely as a winter-output remedy. The recorded seasonal averages do not quantify snow losses or establish a gain from a particular frame or electronic device. Matching controllable electricity use to daytime production can help use the larger spring and summer contribution directly. Where storage is considered, its capacity and losses determine how much surplus can be shifted to later hours. That comparison should still use winter's smaller energy estimate when assessing the system's contribution to winter demand.

Topography around Thorold

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Thorold's setting is defined by the Niagara Escarpment and the successive routes of the Welland Canal. The escarpment is a prominent landform within the city, and the canal crosses it to connect the two Great Lakes. The resulting landscape combines changes in natural relief with engineered lock flights, canal cuts and the built areas that grew around them.

Read the full topography description

The city's canal history records that the early routes passed through central Thorold along the Twelve Mile Creek and Dick's Creek system. The third canal moved east of downtown through the Ten Mile Creek valley, and the present ship canal follows a more direct north–south route across the escarpment. Remains of earlier canals survive alongside the operating corridor. These separate routes explain why open strips and former industrial land can have very different histories and continuing functions. Natural watercourses form another network within this altered landscape. Thorold's official plan recognises rivers and streams as fish habitat, wildlife and vegetation corridors, and components of the surface-water and groundwater system. It also identifies the DeCew Falls intake-protection area. Vegetated stream margins and the direction of runoff therefore matter when comparing a ground-mounted footprint or an access route. For solar planning, the escarpment edge, a settled roof and a former canal-side industrial site present different combinations of horizon, ground conditions and existing use. A disused-looking strip beside a canal may still have transport, heritage or drainage functions. A ground survey and the relevant land-use and water information should establish those relationships before a layout is advanced. The wider relief provides useful context for shade and runoff, but it does not identify northern farmland, southern slopes or canal margins as a preferred development sector.

Technical location reference

Approximate map point used for Thorold, Canada

This coordinate is the calculation reference for Thorold, Canada. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
43.112700000000000000, -79.199500000000000000
Originally displayed coordinate
lat43.1127 / long-79.1995

How the estimate works

How this Thorold estimate was calculated

Here is how I calculated the location estimate for Thorold, Canada.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Thorold Location estimate includes and leaves out

Use the Thorold figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
