Thunder Bay, Ontario, Canada, is a decent location for solar energy production year-round. However, the amount of electricity you can generate varies greatly depending on the season.

In simpler terms, if you have 1kW of installed solar panels at this location, you can expect to produce about 6.24 units (kWh) of electricity every day during summer which is pretty good. In autumn and spring, that number drops down to around 2.70 and 5.05 units respectively per day - still not bad but less than in summer.

Winter is when things get tricky because your panels will only be able to generate about 1.50 units per day due to shorter daylight hours and often overcast skies.

To make sure your solar panels are as efficient as possible throughout the year in Thunder Bay, Ontario, it's best to tilt them at an angle of 41 degrees facing southwards - this helps capture maximum sunlight.

Now let's talk about potential challenges that could affect your solar panel performance in Thunder Bay:

1) Snow: Being a northern city with heavy snowfall during winter months could cover up the panels reducing their efficiency significantly or even stopping power generation completely.
Preventative measure: Install automatic or manual snow removal systems or simply clean off the snow regularly from your panels during winter months.

2) Cloudy weather: Overcast skies reduce sunlight reaching the panel surface thus affecting power output.
Preventative measure: There isn't much one can do here except consider using battery storage systems so excess power generated on sunny days can be stored for use during cloudy periods.

3) Cooler temperatures: While cooler temperatures might actually improve solar cell efficiency somewhat by reducing heat-related losses; extremely low temperatures might pose mechanical stress risks especially if there’s ice formation.
Preventative measure: Use high-quality durable PV modules designed specifically for cold climates that resist ice formation and mechanical stresses better than standard ones.

So while Thunder Bay is not the most ideal location for solar power generation, with proper installation and maintenance, it can still be a viable option. The best times of year to generate solar in this location are during the spring and summer months when daylight hours are longer and there's less likelihood of snowfall or overcast skies.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

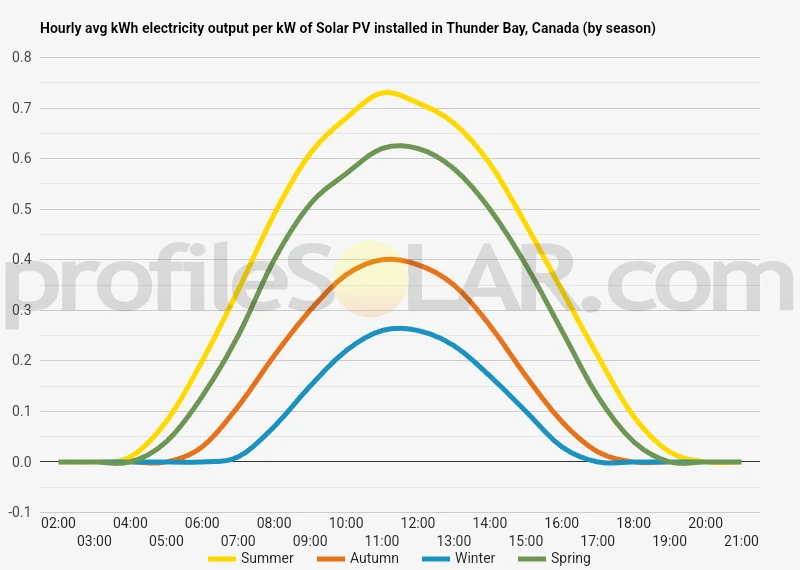

Solar output per kW of installed solar PV by season in Thunder Bay

Seasonal solar PV output for Latitude: 48.3808951, Longitude: -89.2476823 (Thunder Bay, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 6.24kWh/day in Summer.

Average 2.70kWh/day in Autumn.

Average 1.50kWh/day in Winter.

Average 5.05kWh/day in Spring.

Ideally tilt fixed solar panels 41° South in Thunder Bay, Canada

To maximize your solar PV system's energy output in Thunder Bay, Canada (Lat/Long 48.3808951, -89.2476823) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 48.3808951, Longitude: -89.2476823, the ideal angle to tilt panels is 41° South

Seasonally adjusted solar panel tilt angles for Thunder Bay, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Thunder Bay, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Thunder Bay, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Thunder Bay, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Thunder Bay, Canada

Thunder Bay, Canada is located in the province of Ontario and is characterized by a mixed topography. The area around Thunder Bay includes flat plains, rolling hills, and rugged cliffs along the shoreline of Lake Superior. It also features forests and numerous lakes and rivers.

The most suitable areas for large-scale solar PV installations would be the flat plains or gently sloping areas that are clear of obstructions such as trees or buildings. These areas allow for maximum exposure to sunlight throughout the day. The direction of slope should ideally be south-facing to maximize sun exposure in Northern Hemisphere locations like Thunder Bay.

However, it's important to note that while topography plays a significant role in determining suitable sites for solar PV installation, other factors such as local climate conditions (amount of sunshine), land use regulations, proximity to power grids/infrastructure for energy transmission also need consideration.

Given Thunder Bay's northern latitude (48 degrees North), it receives less annual sunlight compared to more southern locations which may affect solar panel efficiency. However, modern solar panels can still generate significant amounts of electricity under these conditions especially during summer months when daylight hours are longer.

A detailed site-specific analysis using GIS (Geographical Information System) technology could provide further insight into identifying potential locations within this region best suited for large-scale Solar PV installations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

Some provinces offer grants or low-interest loans for renewable energy projects.

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

Some cities offer additional incentives or property tax reductions for solar installations.

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
