Trail, Canada, located in the Northern Temperate Zone at coordinates 49.0982, -117.7057, offers varying potential for solar energy generation throughout the year. This small city in British Columbia experiences significant seasonal fluctuations in solar energy production that potential solar adopters should consider.

Seasonal Solar Production

Solar panels in Trail would produce their highest output during summer months, generating approximately 6.74kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.05kWh/day per installed kilowatt. Production drops considerably during autumn to 2.43kWh/day and reaches its lowest point in winter with just 1.26kWh/day per kilowatt of installed capacity.

This pattern creates a substantial difference between summer and winter production, with summer generating more than five times the electricity compared to winter months. The strong performance during spring and summer makes these seasons ideal for solar energy harvesting in Trail.

Optimal Panel Installation

For fixed solar panel installations in Trail, the ideal tilt angle to maximize year-round energy production is 41 degrees facing South. This specific angle has been calculated to optimize annual solar capture based on Trail's latitude and seasonal solar patterns.

Environmental and Weather Considerations

Several significant factors could impact solar production in Trail:

• Snow accumulation during winter months can cover panels and reduce production during already low-yield periods
• The surrounding mountainous topography may create localized shading depending on property location
• Air quality concerns from the local smelter operations could potentially reduce panel efficiency through particulate buildup
• Forest fire smoke during summer months has become increasingly common in the region and can temporarily reduce solar radiation reaching panels

To mitigate these challenges, solar installations in Trail would benefit from steeper panel angles (beyond the optimal annual angle) to help shed snow, regular cleaning schedules to remove industrial particulates, and placement that carefully considers the surrounding mountain shadows. Some installations might also benefit from snow removal systems or adjustable mounting systems that allow for seasonal angle optimization.

Despite these challenges, the strong summer and spring production makes solar viable in Trail, particularly for grid-tied systems that can balance the significant seasonal variations in output.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

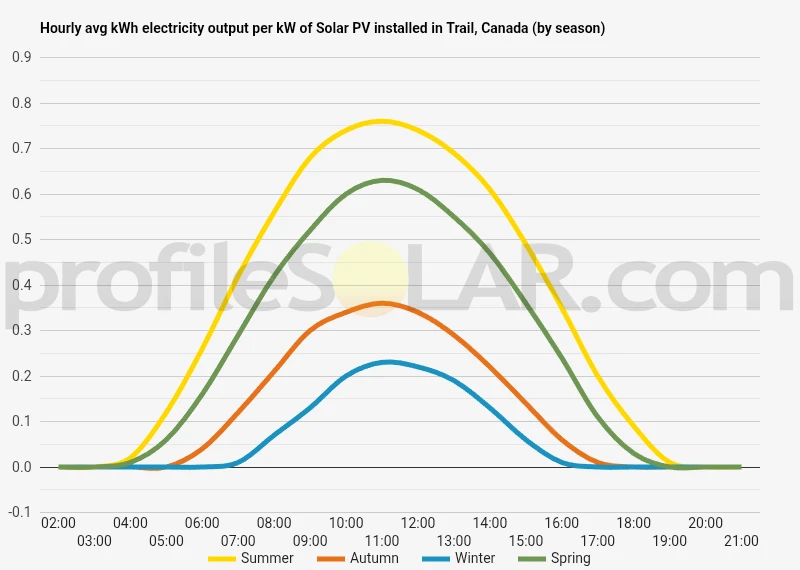

Solar output per kW of installed solar PV by season in Trail

Seasonal solar PV output for Latitude: 49.0982, Longitude: -117.7057 (Trail, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Trail, Canada

To maximize your solar PV system's energy output in Trail, Canada (Lat/Long 49.0982, -117.7057) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Trail, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Trail, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	63° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Trail, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Trail, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Trail, Canada

Trail, Canada, nestled within the picturesque West Kootenay region of British Columbia, features a dramatic topography characterized by steep mountain slopes, deep valleys, and the winding Columbia River. The city itself sits at approximately 440 meters above sea level, surrounded by mountains that rise steeply to elevations exceeding 2,000 meters. This mountainous terrain creates a distinctive basin-like setting for the community, with the Columbia River flowing through the center of the valley.

Mountain Ranges and Valley Systems

The landscape around Trail is dominated by the Selkirk Mountains to the east and the Monashee Mountains to the west, both part of the larger Columbia Mountain system. These ranges feature numerous peaks with significant elevation changes within relatively short horizontal distances. The Columbia River has carved a deep valley through this mountainous terrain, creating the narrow corridor where Trail and neighboring communities have developed. The steep slopes surrounding Trail present both challenges and opportunities. The north-facing slopes tend to receive less direct sunlight due to shadowing effects from the mountains, particularly during winter months when the sun's path is lower in the southern sky. Conversely, south-facing slopes benefit from increased solar exposure throughout the year.

Microclimatic Considerations

The complex topography creates numerous microclimates throughout the region. Valley bottoms experience temperature inversions, particularly during winter, while higher elevations may benefit from clearer skies and reduced fog. The mountains surrounding Trail can act as barriers to weather systems, sometimes creating distinct weather patterns compared to nearby regions.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several topographical factors must be considered. The most suitable areas would generally include: South-facing slopes at moderate elevations provide ideal conditions for solar energy capture. Particularly promising are the benches and terraces on the mountains south of Trail, which receive consistent solar exposure throughout the year. These areas also tend to be above the fog and cloud cover that sometimes settles in the valley bottom. The relatively flat plateaus found at higher elevations to the east and west of Trail could accommodate larger installations. While these areas might require more infrastructure development for access and transmission, they offer expansive spaces with minimal shadowing from adjacent terrain. Some of the reclaimed industrial lands around Trail, particularly those associated with historical mining and smelting operations, present opportunities for solar development. These brownfield sites often have existing access roads and proximity to power transmission infrastructure.

Topographical Challenges

Despite these opportunities, the region's topography presents several challenges for large-scale solar development. The steep slopes throughout much of the area limit the amount of contiguous flat land available for installations. Construction on steeper terrain increases both installation costs and engineering complexity. The narrow valley configuration means that surrounding mountains can cast shadows across potential solar sites during early morning and late afternoon, potentially reducing overall energy production. Careful site selection is necessary to minimize these shadowing effects. Winter conditions in the mountains, including heavy snowfall and potential avalanche risk on steeper slopes, must be factored into any development plans. Sites at higher elevations may require additional structural considerations to handle snow loads.

Optimal Development Zones

Considering all topographical factors, the most favorable areas for large-scale solar PV development near Trail would be the south-facing benches and moderate slopes south of the Columbia River, particularly in the direction of Montrose and Fruitvale. These areas combine favorable solar aspect with reasonable accessibility and proximity to existing infrastructure. Secondary development zones might include some of the higher plateaus to the east, though these would require more substantial infrastructure investments. The combination of complex topography and industrial heritage in the Trail region creates a landscape where careful site selection is essential for successful solar energy development.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
