Tyndall, Manitoba, Canada, located in the Northern Temperate Zone at coordinates 50.0858, -96.6643, presents a mixed picture for year-round solar energy generation via photovoltaic (PV) systems. The location experiences significant seasonal variations in solar output, which impact its overall suitability for solar power production.

Seasonal Solar Performance

Solar energy generation in Tyndall is most effective during the summer months, with an impressive daily output of 6.07 kWh per kW of installed solar capacity. Spring follows as the second-most productive season, yielding 5.20 kWh per day. However, autumn and winter see a substantial drop in energy production, with 2.73 kWh and 1.77 kWh per day, respectively.

These figures indicate that Tyndall is well-suited for solar energy production during the warmer months, particularly from late spring through early fall. The long summer days in this northern location contribute to the high energy yield during this period. However, the significant decrease in output during autumn and winter presents challenges for year-round reliance on solar power.

Optimal Panel Installation

To maximize year-round solar energy production in Tyndall, Manitoba, fixed solar panels should be installed at a tilt angle of 43 degrees facing south. This angle is optimized to capture the most sunlight throughout the year, considering the location's latitude and seasonal sun paths.

Environmental and Weather Considerations

Several factors could potentially impact solar production in Tyndall:

1. Snow accumulation: The region experiences snowy winters, which can cover solar panels and reduce efficiency.
2. Cloud cover: Overcast conditions, particularly common in autumn and winter, can significantly decrease solar output.
3. Temperature extremes: Very cold temperatures in winter can affect panel efficiency, while occasional high summer temperatures might slightly reduce performance.

To mitigate these issues, several preventative measures can be taken during solar installation:

• Use panels with anti-soiling coatings to help shed snow more easily
• Install panels at a steeper angle to promote snow sliding off
• Implement a regular cleaning and maintenance schedule, especially after heavy snowfall
• Choose high-quality, weather-resistant panels designed for extreme temperature variations
• Consider adding a solar tracking system to maximize energy capture, especially during low-light periods

While Tyndall's location presents some challenges for year-round solar energy production, proper system design and maintenance can help optimize performance and make solar a viable energy option for much of the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

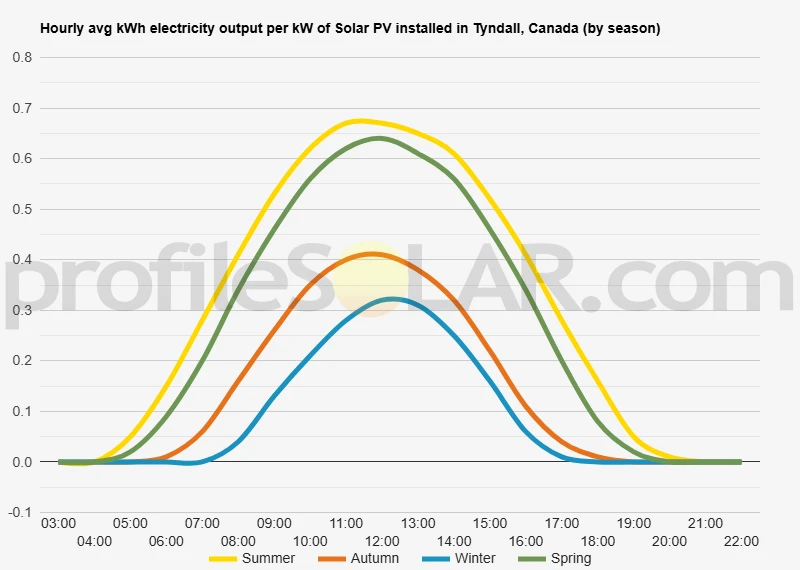

Solar output per kW of installed solar PV by season in Tyndall

Seasonal solar PV output for Latitude: 50.0858, Longitude: -96.6643 (Tyndall, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Tyndall, Canada

To maximize your solar PV system's energy output in Tyndall, Canada (Lat/Long 50.0858, -96.6643) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tyndall, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tyndall, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	53° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tyndall, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tyndall, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tyndall, Canada

The topography around Tyndall, Canada, located at latitude 50.0858 and longitude -96.6643, is characterized by relatively flat terrain typical of the Canadian Prairies. This area is part of the Manitoba Lowlands, a vast region of low-lying plains that were once covered by the ancient glacial Lake Agassiz. The landscape is predominantly flat to gently rolling, with minimal elevation changes across the region. The area surrounding Tyndall is primarily composed of agricultural land, interspersed with small patches of woodland and wetlands. The soil in this region is generally fertile, having been enriched by sediments deposited by the retreating glaciers thousands of years ago. This has made the area well-suited for farming, which is a significant economic activity in the region.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The flat terrain of the region is generally favorable for solar PV development, as it minimizes shading issues and simplifies construction. Areas to the south and east of Tyndall might be particularly well-suited for solar PV installations. These locations tend to have fewer trees and more open agricultural land, which would provide ample space for large arrays of solar panels. The lack of significant geographical features that could cast shadows or obstruct sunlight makes these areas ideal for maximizing solar energy capture throughout the day. However, it's important to note that while the topography is favorable, other factors such as grid connectivity, land ownership, and environmental considerations would also need to be taken into account when planning large-scale solar PV projects in the region. Additionally, the relatively northern latitude of Tyndall means that solar installations would need to be optimized for the specific solar angles and seasonal variations experienced at this location to maximize their efficiency.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
