Solar Energy Potential in Wainfleet, Ontario, Canada

Wainfleet, Ontario, located in the Northern Temperate Zone of Canada, offers varying potential for solar energy generation throughout the year. The location's latitude and longitude (42.931, -79.3741) contribute to significant seasonal fluctuations in solar output. Summer presents the most favorable conditions for solar energy production, with an average daily output of 6.42 kWh per kW of installed solar capacity. This high yield is due to longer daylight hours and the sun's higher position in the sky. Spring follows closely, generating an average of 5.38 kWh per day, making it the second-best season for solar energy harvesting. Autumn sees a noticeable decrease in solar output, with daily production dropping to 3.20 kWh. Winter experiences the lowest solar energy potential, with a daily average of just 1.80 kWh. This significant reduction is primarily due to shorter daylight hours, lower sun angles, and increased cloud cover typical of Canadian winters.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Wainfleet, Ontario, fixed solar panels should be installed at a tilt angle of 36 degrees facing south. This optimal angle has been calculated to balance the varying sun positions throughout the year, ensuring the best possible energy capture across all seasons.

Environmental and Weather Considerations

While Wainfleet's location is generally suitable for solar energy production, there are some environmental and weather factors that could impact efficiency:

• Snow accumulation in winter can significantly reduce panel output if not promptly removed.
• Occasional severe weather events, such as hailstorms or high winds, may pose risks to panel integrity.

To mitigate these challenges, consider the following preventative measures: 1. Install panels at a steeper angle to promote natural snow shedding. 2. Use durable, high-quality panels designed to withstand harsh weather conditions. 3. Implement a regular maintenance schedule, including snow removal in winter. 4. Consider a ground-mounted system for easier access and maintenance. By addressing these factors and optimizing panel placement, Wainfleet residents can effectively harness solar energy throughout the year, with peak production occurring during the spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

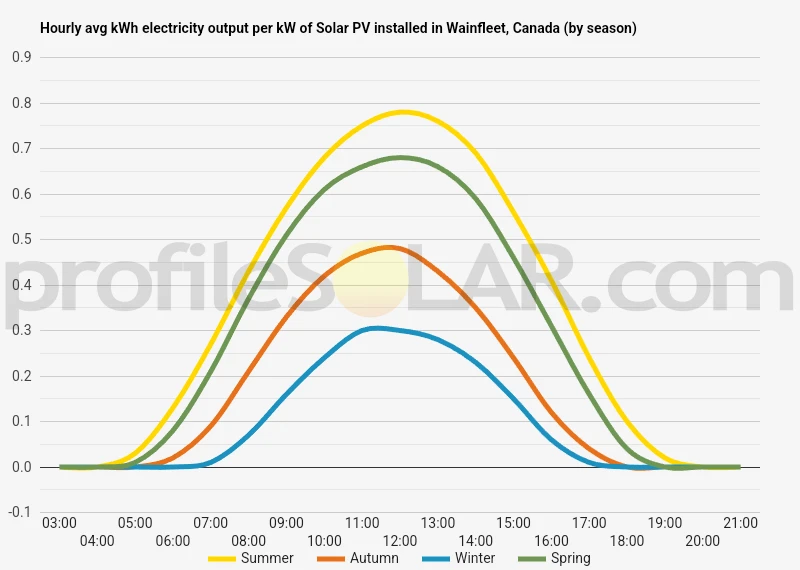

Solar output per kW of installed solar PV by season in Wainfleet

Seasonal solar PV output for Latitude: 42.931, Longitude: -79.3741 (Wainfleet, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Wainfleet, Canada

To maximize your solar PV system's energy output in Wainfleet, Canada (Lat/Long 42.931, -79.3741) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wainfleet, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wainfleet, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	46° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wainfleet, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wainfleet, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wainfleet, Canada

The topography around Wainfleet, Canada, which is located in the Niagara Region of Ontario, is generally characterized by flat to gently rolling terrain. This area is part of the broader Niagara Peninsula, known for its relatively low-lying landscape. The region sits on the northern shore of Lake Erie, which influences its geography and climate.

Wainfleet itself is situated in what's often referred to as the Niagara lowlands. The land here is predominantly flat, with only slight variations in elevation. This flatness is a result of glacial activity during the last ice age, which scoured and smoothed the landscape. The area also features some wetlands and marshes, particularly closer to the lakeshore.

To the north of Wainfleet, the land begins to rise slightly as it approaches the Niagara Escarpment, a long ridge that runs through the region. However, this rise is gradual and doesn't significantly impact the overall flat nature of the immediate Wainfleet area.

Solar PV Suitability

When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, several factors come into play:

The flat, open farmland that surrounds Wainfleet would be particularly well-suited for solar PV projects. These areas offer large, unobstructed spaces that receive ample sunlight throughout the day. The lack of significant elevation changes means there are fewer issues with shading from natural features.

Areas slightly inland from Lake Erie might be preferable to immediate shoreline locations. While the entire region receives good sunlight, areas right on the lake can experience more fog and lake-effect cloud cover, which could slightly reduce solar efficiency.

Former industrial or brownfield sites in nearby communities could also be excellent candidates for solar farms. These areas are often already cleared, have existing infrastructure, and their repurposing for renewable energy can be seen as a positive environmental step.

It's worth noting that while the topography is favorable, other factors such as local zoning laws, grid connection availability, and environmental considerations would also play crucial roles in determining the best locations for large-scale solar PV installations in this region.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
