Wallaceburg, Ontario, Canada presents a moderately favorable location for solar photovoltaic energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate at coordinates 42.5921°N, -82.387°W.

Seasonal Solar Energy Production

The solar energy output at this location varies considerably throughout the year. Summer provides the highest production at 6.35 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best season with 5.48 kWh per day per kW, offering substantial energy production as daylight hours increase and the sun climbs higher in the sky. Autumn production drops to 3.22 kWh per day per kW as the sun angle decreases and weather patterns become less favorable. Winter presents the most challenging conditions with only 1.86 kWh per day per kW, representing less than 30% of summer production levels.

Optimal Panel Configuration

For maximum year-round energy production at Wallaceburg, Ontario, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data, accounting for Earth's elliptical orbit around the sun.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Wallaceburg area can significantly impact solar energy production:

• Snow accumulation: Winter snowfall can completely block solar panels, reducing production to zero until cleared
• Ice formation: Freezing rain and ice storms common in this region can coat panels and reduce efficiency
• Great Lakes weather patterns: The proximity to Lake St. Clair and the Great Lakes system can create increased cloud cover and humidity
• Seasonal fog: Morning fog from nearby water bodies can delay peak production hours

Preventative Measures for Enhanced Production

Several installation strategies can help mitigate these local challenges: Installing panels at the optimal 36-degree tilt helps snow slide off more easily than flatter installations. Adding heating elements or snow guards can further prevent snow accumulation during critical winter months. Selecting panels with anti-reflective coatings and hydrophobic surfaces helps reduce ice formation and allows moisture to sheet off more effectively. Regular maintenance scheduling becomes particularly important during winter months to clear any snow or ice buildup. Proper spacing between panel rows prevents shading issues that can be exacerbated by lower winter sun angles. Installing micro-inverters or power optimizers on each panel ensures that if one panel is partially covered by snow or debris, it won't significantly impact the entire system's performance. Tree trimming and vegetation management around the installation site becomes crucial, as deciduous trees may not provide the same shading patterns year-round, and evergreen trees can cast longer shadows during winter months when the sun is lower on the horizon.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

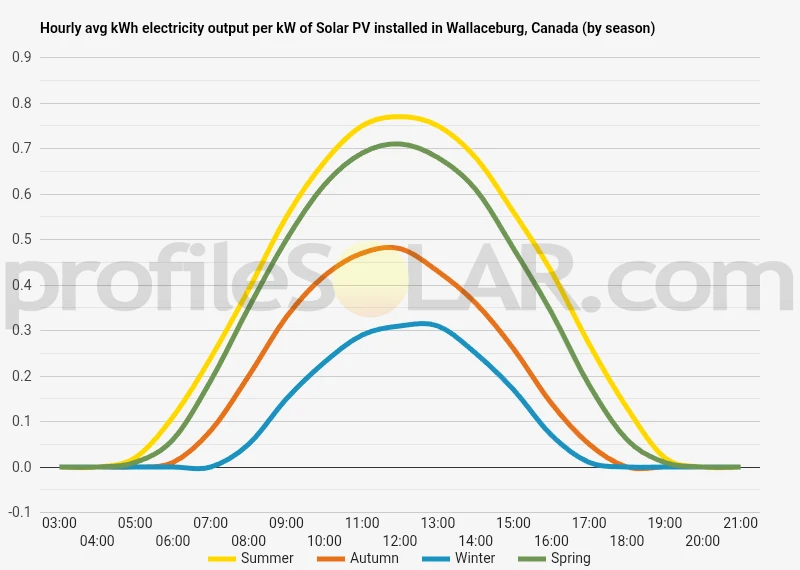

Solar output per kW of installed solar PV by season in Wallaceburg

Seasonal solar PV output for Latitude: 42.5921, Longitude: -82.387 (Wallaceburg, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Wallaceburg, Canada

To maximize your solar PV system's energy output in Wallaceburg, Canada (Lat/Long 42.5921, -82.387) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wallaceburg, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wallaceburg, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wallaceburg, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wallaceburg, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wallaceburg, Canada

Topography Around Wallaceburg

Wallaceburg sits in the heart of southwestern Ontario's flat agricultural landscape, positioned along the meandering Sydenham River in Chatham-Kent County. The terrain throughout this region is remarkably level, characterized by gentle rolling plains that rarely exceed elevations of 200 meters above sea level. This area forms part of the Great Lakes Lowlands, a vast physiographic region shaped by ancient glacial activity that left behind fertile soils and minimal topographic variation.

The Sydenham River winds through the community, creating subtle changes in elevation as it carved its path through the soft sedimentary bedrock over thousands of years. The surrounding countryside consists predominantly of prime agricultural land, with fields stretching for kilometers in all directions. Small woodlots and conservation areas dot the landscape, but these natural features occupy relatively small portions of the total land area compared to the extensive farmland.

Drainage patterns throughout the region flow generally toward Lake St. Clair to the northwest and the Detroit River system. The flat topography means that water movement is typically slow, with numerous drainage ditches and tile systems installed throughout agricultural areas to manage seasonal water accumulation. This low-lying nature of the land occasionally leads to flooding concerns during periods of heavy precipitation or rapid snowmelt.

Optimal Areas for Large-Scale Solar Development

The exceptionally flat terrain surrounding Wallaceburg presents ideal conditions for large-scale solar photovoltaic installations. Agricultural fields extending in all directions from the community offer vast expanses of relatively unobstructed land with minimal shading concerns. The gentle topography eliminates the need for extensive site preparation or grading that would be required in more mountainous regions, significantly reducing installation costs and complexity.

Areas to the east and southeast of Wallaceburg appear particularly well-suited for solar development, where large agricultural parcels provide ample space for utility-scale installations. These locations benefit from the region's characteristic flat terrain while being positioned away from the more densely populated residential areas closer to the Sydenham River. The agricultural nature of the land also means fewer conflicts with existing development compared to areas closer to urban centers.

The western approaches to Wallaceburg, extending toward the Walpole Island First Nation territory, also present promising opportunities for solar development. This area maintains the same flat topographic advantages while offering potential partnerships with Indigenous communities interested in renewable energy projects. The proximity to existing electrical transmission infrastructure along major transportation corridors enhances the viability of connecting large solar installations to the provincial power grid.

Former agricultural lands that may have been taken out of active production represent another category of suitable sites. These areas retain the topographic benefits of the surrounding farmland while potentially facing fewer concerns about removing prime agricultural soil from food production. The flat, open character of such sites typically requires minimal modification to accommodate solar panel arrays and associated infrastructure.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
