Warsaw, Ontario, Canada, located in the Northern Temperate Zone at coordinates 44.4336, -78.1362, presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations that are typical for this latitude.

Seasonal Solar Performance

The solar energy output at this location shows a clear seasonal pattern. Summer delivers the strongest performance at 5.85 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.13 kWh per day per kW, offering nearly comparable output to summer months. Autumn production drops considerably to 2.93 kWh per day per kW, while winter presents the most challenging conditions with only 1.74 kWh per day per kW of installed capacity. This dramatic seasonal swing means that summer produces more than three times the energy of winter months. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 38 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's varying elevation throughout the year and weighting the optimal angles by the actual solar potential at each time of year.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Warsaw, Ontario, Canada area can significantly impact solar energy production:

• Snow accumulation: Heavy winter snowfall can completely block solar panels, eliminating energy production until snow is cleared or melts naturally
• Ice formation: Freezing rain and ice storms can create persistent ice layers on panels that are difficult to remove
• Cloud cover: The region experiences frequent overcast conditions, particularly during autumn and winter months
• Deciduous tree shading: While trees provide less shading in winter when leaves fall, they can significantly reduce spring and summer production if not properly managed

Preventative Measures for Enhanced Performance

Several installation strategies can help maximize solar energy production despite these local challenges: Installing panels at the optimal 38-degree tilt angle not only maximizes annual output but also helps snow slide off more easily than on flatter installations. Consider increasing the tilt angle slightly in areas with heavy snowfall, as steeper angles promote better snow shedding even though they may reduce optimal summer production marginally. Proper site selection is crucial. Choose locations with minimal tree shading, particularly avoiding shade during peak sun hours between 10 AM and 2 PM. If tree removal isn't possible, consider trimming branches or selecting alternative installation sites. Ground-mounted systems offer advantages in snowy climates, as they're easier to clear of snow and ice compared to rooftop installations. They can also be positioned away from trees and other obstacles more easily than roof-mounted systems. Regular maintenance becomes especially important during winter months. Establish a snow removal plan using appropriate tools that won't scratch panel surfaces. Avoid using metal tools or hot water, which can damage panels or create dangerous ice conditions.

Overall Assessment

Warsaw, Ontario, Canada represents a reasonably good location for solar PV installation, particularly when systems are designed to handle local weather conditions. The strong spring and summer production can offset the reduced winter output, making solar a viable renewable energy option. However, property owners should expect significant seasonal variation in energy production and plan accordingly, possibly incorporating battery storage or remaining connected to the electrical grid to ensure consistent power supply year-round.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

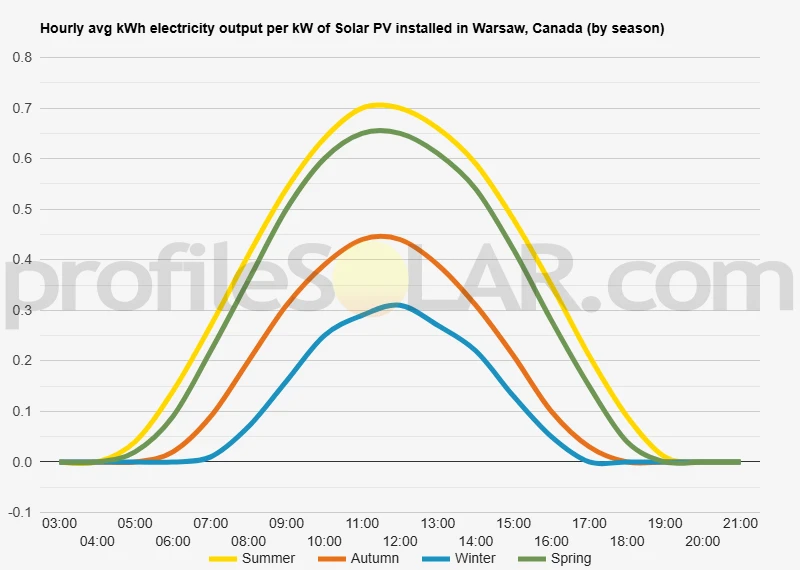

Solar output per kW of installed solar PV by season in Warsaw

Seasonal solar PV output for Latitude: 44.4336, Longitude: -78.1362 (Warsaw, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in Warsaw, Canada

To maximize your solar PV system's energy output in Warsaw, Canada (Lat/Long 44.4336, -78.1362) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Warsaw, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Warsaw, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	48° South in Autumn	58° South in Winter	37° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Warsaw, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Warsaw, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Warsaw, Canada

Topographical Features Around Warsaw, Ontario

Warsaw, Ontario sits within the gently rolling landscape of south-central Ontario, positioned along the eastern shore of Rice Lake in Northumberland County. The terrain around this small community is characterized by relatively modest elevation changes, with the land gradually rising from the lakeshore toward the inland areas. The topography consists primarily of low hills and shallow valleys that were shaped by ancient glacial activity, creating a landscape of gentle undulations rather than dramatic elevation changes.

The immediate area around Warsaw features a mix of agricultural fields, scattered woodlots, and residential properties. The terrain slopes gradually away from Rice Lake, with elevations typically ranging from approximately 200 meters near the lakeshore to around 300 meters on the higher ridges inland. These modest elevation differences create natural drainage patterns that flow toward Rice Lake and eventually into the Trent-Severn Waterway system.

The local landscape is dotted with small streams and seasonal watercourses that have carved shallow valleys through the terrain. These waterways, along with areas of wetland and marsh, create pockets of lower-lying land interspersed with the predominantly agricultural uplands. The soil composition varies from sandy loam in some areas to clay-based soils in others, reflecting the complex glacial history of the region.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Warsaw would be found on the gently sloping agricultural lands that extend inland from Rice Lake. These areas offer several advantages for solar development, including relatively flat to gently undulating terrain that minimizes grading requirements and construction costs. The open agricultural fields provide expansive areas with minimal shading from trees or structures, allowing for efficient panel placement and optimal energy capture throughout the day.

The higher elevation areas southeast and southwest of Warsaw present particularly attractive opportunities for solar development. These locations benefit from good natural drainage, reducing concerns about water accumulation around solar installations. The slight elevation also provides natural air circulation that can help maintain optimal operating temperatures for photovoltaic panels.

Areas with south-facing slopes would be especially well-suited for solar installations, as these orientations maximize exposure to direct sunlight throughout the day and across seasons. The gentle gradients found throughout much of the agricultural land around Warsaw are ideal for this purpose, providing natural tilting that enhances solar collection efficiency without requiring complex mounting systems.

The proximity to existing electrical infrastructure along rural roads and near the community of Warsaw itself offers additional advantages for large-scale solar development. Many of the prime agricultural areas are already served by rural electrical distribution lines, potentially reducing the costs and complexity of connecting solar installations to the electrical grid.

Fields that are currently used for row crops or pasture would be most easily converted to solar use, as these areas are already cleared and relatively level. The absence of significant rock outcroppings or other geological obstacles in most agricultural areas around Warsaw would facilitate the installation of ground-mounted solar arrays and any necessary electrical infrastructure.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
