Whitecourt, Canada presents significant challenges for year-round solar energy generation, with highly variable seasonal output that makes it far from ideal for consistent solar PV production.

Seasonal Solar Performance

The solar energy output at this Northern Temperate Zone location shows dramatic seasonal variation. Summer delivers the strongest performance at 6.12 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring also provides good output at 4.84 kWh per day per kW, offering a solid shoulder season for energy production. However, the location faces severe limitations during colder months. Autumn drops significantly to just 2.44 kWh per day per kW, while winter plummets to a mere 1.25 kWh per day per kW - representing only about 20% of summer production capacity.

Optimal Installation Configuration

For maximum year-round energy production at Whitecourt, solar panels should be installed at a fixed tilt angle of 46 degrees facing south. This angle is calculated to optimize total annual output by accounting for the sun's varying position throughout the year and weighting for the location's solar potential.

Environmental and Weather Challenges

Several significant local factors can impede solar production at this northern Alberta location:

• Heavy snow accumulation during long winters can completely block panels
• Ice formation creates additional barriers to sunlight
• Frequent cloud cover and overcast skies reduce solar irradiance
• Extreme cold temperatures can affect equipment performance
• High winds may damage improperly secured installations

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Install panels at steeper angles to encourage snow shedding
• Use heating elements or snow removal systems for critical installations
• Select cold-weather rated equipment designed for extreme temperatures
• Ensure robust mounting systems capable of handling significant snow loads and wind
• Position panels to avoid shading from trees that may accumulate snow or ice
• Include battery storage systems to capture excess summer production for winter use

The location's northern latitude means solar energy works best as a seasonal supplement rather than a primary year-round energy source, requiring careful system sizing and potentially backup power solutions for consistent energy needs.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

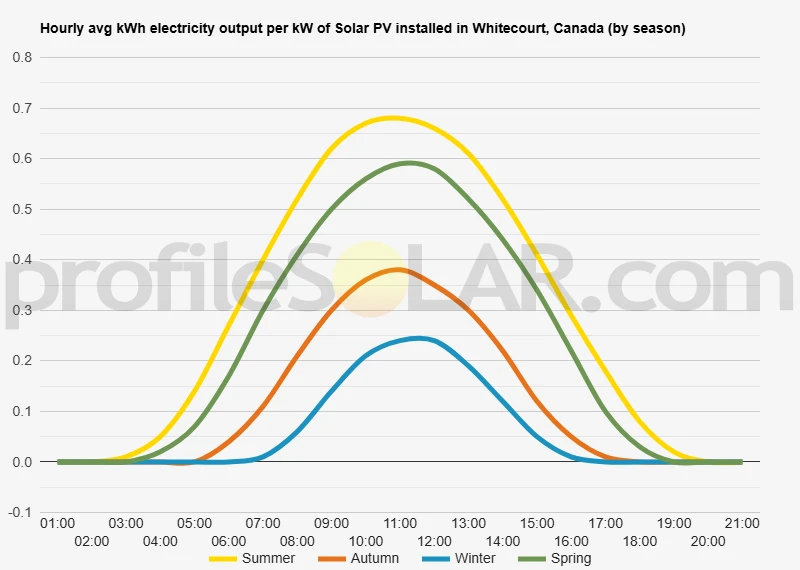

Solar output per kW of installed solar PV by season in Whitecourt

Seasonal solar PV output for Latitude: 54.1541, Longitude: -115.6861 (Whitecourt, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 46° South in Whitecourt, Canada

To maximize your solar PV system's energy output in Whitecourt, Canada (Lat/Long 54.1541, -115.6861) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Whitecourt, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Whitecourt, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
37° South in Summer	57° South in Autumn	67° South in Winter	46° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Whitecourt, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Whitecourt, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Whitecourt, Canada

Topographical Features Around Whitecourt

Whitecourt sits in the heart of Alberta's boreal forest region, where the landscape is characterized by gently rolling hills and relatively modest elevation changes. The terrain around this community features a mix of forested areas, agricultural land, and natural clearings that create a varied but generally accessible topography. The region lies within the broader Peace River Country, where the land gradually transitions from the flatter prairie regions to the south toward the more undulating terrain that leads to the Canadian Rockies further west.

The immediate area around Whitecourt displays typical boreal forest topography, with elevations ranging from approximately 700 to 800 meters above sea level. The landscape is punctuated by numerous small creeks, wetlands, and natural depressions that are common in this glacially-influenced terrain. These water features, along with the rolling nature of the land, create a patchwork of different microclimates and soil conditions throughout the region.

Much of the surrounding countryside consists of mixed forest dominated by aspen, poplar, and various coniferous species, interspersed with cleared areas that have been converted to agricultural use or industrial purposes. The soil composition varies from sandy loam to clay-based soils, with drainage patterns influenced by the underlying geology and the network of seasonal and permanent waterways that flow through the area.

Optimal Areas for Large-Scale Solar Development

When considering large-scale solar photovoltaic installations in the Whitecourt area, several topographical factors make certain locations more suitable than others. The most promising areas are the cleared agricultural lands and former industrial sites that offer relatively flat or gently sloping terrain with southern exposure. These locations typically provide the best combination of accessibility, minimal shading concerns, and suitable ground conditions for large-scale development.

Agricultural areas to the south and southwest of Whitecourt present particularly attractive opportunities for solar development. These lands often feature gentle slopes that naturally face south or southwest, providing optimal orientation for solar panels while maintaining good drainage characteristics. The existing cleared nature of these areas eliminates the need for extensive forest clearing, reducing both development costs and environmental impact.

Former industrial sites and areas that have been previously disturbed by resource extraction activities also represent excellent candidates for solar development. These locations often have existing infrastructure access, including roads and electrical connections, while the land has already been modified from its natural state. The relatively flat nature of many reclaimed industrial sites makes them particularly well-suited for the installation of ground-mounted solar arrays.

Areas with slight southern-facing slopes are generally preferred over completely flat terrain, as the natural tilt can enhance solar collection efficiency while providing better water drainage during spring snowmelt and heavy precipitation events. The key is finding locations where the slope is gentle enough to allow for standard mounting systems while still providing the drainage and orientation benefits.

Transportation access represents another crucial factor in site selection. Areas near existing highway networks, particularly those with access to Highway 43 or other major routes, offer significant advantages for both construction logistics and ongoing maintenance operations. The ability to transport large equipment and materials to the site efficiently can substantially impact the overall project economics.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
