Winterton, Newfoundland and Labrador, Canada presents significant challenges for year-round solar energy generation due to its northern latitude and harsh seasonal weather conditions.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the best conditions with 5.51 kWh per day per installed kilowatt, making it an excellent time for solar generation. Spring also offers good performance at 4.50 kWh per day per kilowatt. However, the colder months present substantial challenges. Autumn production drops to 2.62 kWh per day per kilowatt, while winter performance plummets to just 1.31 kWh per day per kilowatt - less than a quarter of summer output.

Optimal Panel Installation

For fixed panel installations at Winterton, Newfoundland and Labrador, the ideal tilt angle is 41 degrees facing south to maximize total year-round solar production. This angle is calculated based on the location's latitude and accounts for seasonal sun position variations throughout the year.

Environmental and Weather Challenges

Several significant factors can impede solar production at this northern Canadian location:

• Heavy snow accumulation during winter months that can completely cover panels
• Ice formation that creates thick layers blocking sunlight
• Frequent cloud cover and overcast conditions typical of the maritime climate
• Strong winds that can damage equipment or shift panel positioning
• Salt spray from nearby ocean waters that can corrode equipment and reduce panel efficiency

Preventative Measures for Better Performance

To combat these challenges and improve energy production, several installation strategies should be considered:

• Install panels at steeper angles (potentially beyond the optimal 41 degrees) to encourage snow and ice to slide off more easily
• Use anti-reflective coatings and heating elements to prevent ice buildup
• Choose corrosion-resistant mounting systems and frames designed for marine environments
• Implement regular cleaning schedules to remove salt deposits and debris
• Install wind-resistant mounting systems with proper structural reinforcement
• Consider ground-mounted systems that allow easier access for snow removal

Overall Assessment

Winterton's location makes it less than ideal for consistent year-round solar energy generation. While summer and spring months offer reasonable production levels, the dramatic winter decline and challenging weather conditions require careful planning and additional investment in protective measures to maintain system effectiveness throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

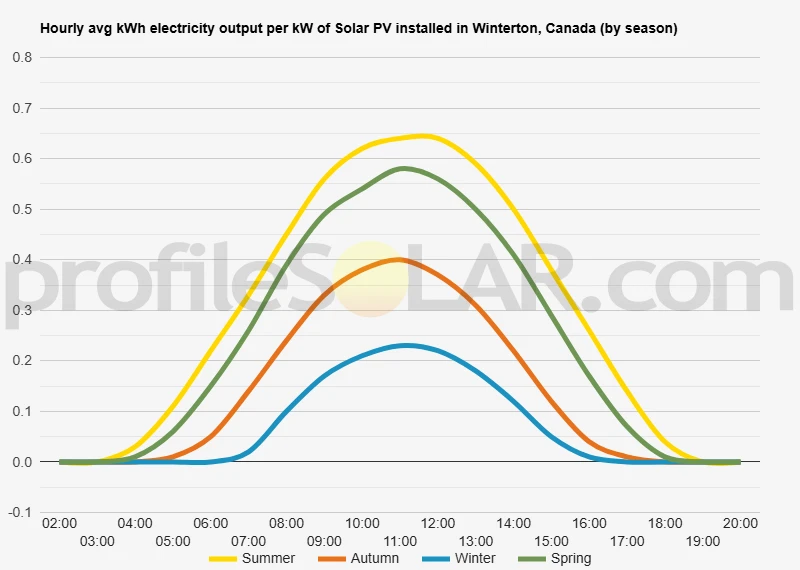

Solar output per kW of installed solar PV by season in Winterton

Seasonal solar PV output for Latitude: 47.9667, Longitude: -53.3333 (Winterton, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Winterton, Canada

To maximize your solar PV system's energy output in Winterton, Canada (Lat/Long 47.9667, -53.3333) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Winterton, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Winterton, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	62° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Winterton, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Winterton, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Winterton, Canada

Topographical Features Around Winterton

Winterton is situated on the eastern coast of Newfoundland's Avalon Peninsula, positioned along the shores of Trinity Bay. The landscape around this small coastal community is characterized by the rolling hills and rugged terrain typical of Newfoundland's geography. The immediate area features a mix of low-lying coastal plains that gradually rise inland toward more elevated terrain, with the land gently undulating as it moves away from the shoreline.

The topography is dominated by ancient rock formations that have been shaped by glacial activity over millennia. These geological features create a landscape of moderate hills interspersed with valleys and depressions. The coastal areas are relatively flat, providing good exposure to prevailing winds from the Atlantic Ocean, while the inland regions become progressively more hilly as elevation increases.

The region's drainage patterns are influenced by the underlying bedrock and glacial deposits, creating numerous small streams and wetland areas throughout the landscape. The soil composition varies from thin layers over bedrock in elevated areas to deeper deposits in the valleys and coastal plains.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Winterton would be the gently sloping inland areas that offer good southern exposure while remaining relatively accessible for construction and maintenance activities. These areas typically lie between the immediate coastal zone and the steeper hills further inland, providing an ideal compromise between terrain suitability and solar exposure.

The coastal plains themselves, while flat and potentially suitable from a topographical standpoint, may face challenges from salt spray and extreme weather conditions that come with proximity to the Atlantic Ocean. Moving slightly inland reduces these environmental stresses while still maintaining favorable terrain characteristics for solar installations.

Areas with gentle south-facing slopes would be particularly advantageous, as they naturally optimize panel orientation for maximum solar collection throughout the day. The rolling nature of the terrain around Winterton provides numerous such opportunities, where natural landforms can be utilized to enhance the effectiveness of solar arrays without requiring extensive grading or earthwork.

The relatively open nature of much of the landscape in this region, with fewer dense forest areas compared to other parts of Newfoundland, also presents advantages for solar development. This openness reduces the need for extensive clearing operations and minimizes potential shading issues that could impact system performance. Additionally, areas with existing road access or proximity to electrical infrastructure would be particularly attractive for development, as they would minimize the additional infrastructure investment required for large-scale solar projects.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
