The location in Woodstock, Ontario, Canada, situated at 43.1407° N, 80.7344° W, presents varying levels of suitability for solar PV energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal fluctuations in solar energy production.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 6.25 kWh per day output for each kilowatt of installed solar capacity. Spring follows closely, yielding 5.30 kWh/day. These seasons offer extended daylight hours and more direct sunlight, making them ideal for solar energy generation.

Autumn sees a considerable drop in production, with 2.98 kWh/day. Winter presents the greatest challenge, producing only 1.81 kWh/day due to shorter days, lower sun angles, and potentially cloudy conditions.

Optimal Panel Installation

To maximize year-round solar energy production at this location, fixed solar panels should be installed at a 37-degree tilt angle facing south. This orientation helps capture the most sunlight throughout the year, balancing the seasonal variations in sun position.

Environmental Considerations

While Woodstock's location is generally favorable for solar energy, there are some environmental factors to consider:

1. Snow accumulation in winter can significantly reduce panel efficiency. Installing panels at the recommended angle helps snow slide off more easily, but additional measures like snow rakes may be necessary.

2. Woodstock experiences about 133 days of precipitation annually. While rain helps clean panels, persistent cloud cover during these periods can reduce energy production.

Mitigation Strategies

To optimize solar production in Woodstock, Ontario, consider these preventative measures:

• Use high-efficiency panels designed for low-light conditions to improve performance during cloudy days and winter months.
• Implement a regular cleaning schedule, especially after snowfall, to ensure panels remain unobstructed.
• Consider a ground-mounted system for easier maintenance and snow removal if roof installation is challenging.

Despite seasonal challenges, Woodstock's location can still be suitable for solar PV installations, especially when these factors are addressed during system design and maintenance planning.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

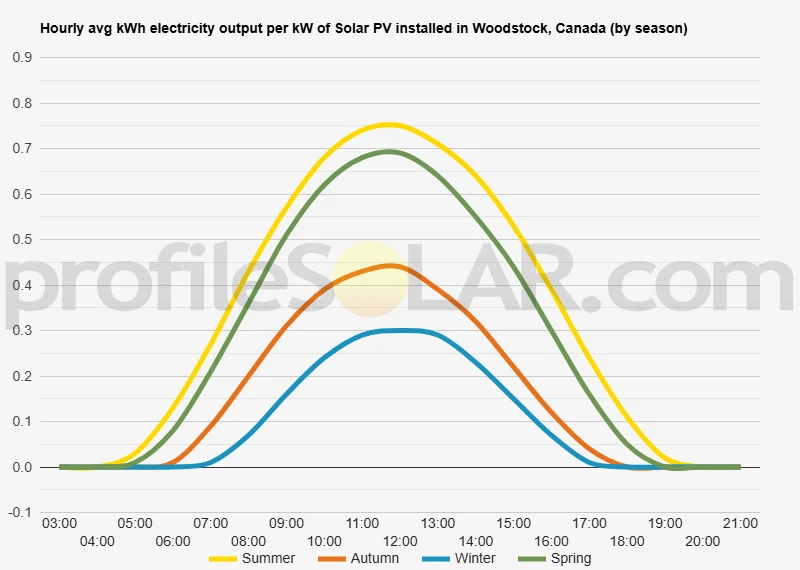

Solar output per kW of installed solar PV by season in Woodstock

Seasonal solar PV output for Latitude: 43.1407, Longitude: -80.7344 (Woodstock, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Woodstock, Canada

To maximize your solar PV system's energy output in Woodstock, Canada (Lat/Long 43.1407, -80.7344) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Woodstock, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Woodstock, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	46° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Woodstock, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Woodstock, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Woodstock, Canada

The topography around Woodstock, Canada, located at latitude 43.1407 and longitude -80.7344, is characterized by gently rolling hills and relatively flat terrain. This area is part of the physiographic region known as the Woodstock Moraine, which was formed during the last ice age. The landscape features a mix of agricultural fields, woodlots, and small rivers and streams that meander through the countryside. Woodstock itself sits at an elevation of approximately 300 meters above sea level, with the surrounding area varying only slightly in elevation. The Thames River flows through the region, carving shallow valleys and creating some minor variations in the local topography. To the north and east of Woodstock, the land tends to be slightly more elevated and hilly, while to the south and west, it becomes gradually flatter as it transitions into the agricultural heartland of southwestern Ontario.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The relatively flat terrain south and west of Woodstock offers promising locations for solar farms. These areas benefit from expansive agricultural lands that receive ample sunlight throughout the day, with minimal shading from natural features or structures. The gently sloping fields found in many parts of Oxford County, where Woodstock is located, could provide ideal conditions for solar panel placement. South-facing slopes, in particular, would be advantageous as they can maximize solar exposure throughout the year. Additionally, the open farmland in this region often has existing road access and is generally clear of large forested areas, which could otherwise impede solar collection. It's worth noting that while the topography is favorable, other factors such as proximity to electrical infrastructure, local zoning regulations, and environmental considerations would also play crucial roles in determining the most suitable locations for large-scale solar PV projects. Consultation with local authorities and thorough site assessments would be necessary to identify specific optimal areas for solar development in the vicinity of Woodstock.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
