Yellowknife, Northwest Territories, Canada presents significant challenges for year-round solar energy generation, with extreme seasonal variations that make it far from ideal for consistent solar power production throughout the year.

Seasonal Solar Performance

The solar energy output at this northern location varies dramatically across the seasons. Summer provides the strongest performance at 5.56 kWh per day per kilowatt of installed solar capacity, making it an excellent time for solar generation. Spring also offers good production levels at 4.62 kWh per day per kW, providing another productive period for solar energy. However, the performance drops substantially during autumn to just 1.31 kWh per day per kW, and winter presents extremely poor conditions with only 0.56 kWh per day per kW. This winter figure represents roughly one-tenth of the summer production, highlighting the severe limitations of solar power during the coldest months.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle is 52 degrees facing south to maximize total year-round solar production. This angle is calculated based on the sun's path throughout the year and helps capture the most available sunlight across all seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors can significantly impact solar energy production in Yellowknife:

• Heavy snow accumulation during the long winter months can completely block solar panels
• Ice formation on panel surfaces reduces light transmission and energy output
• Extreme cold temperatures, while actually improving panel efficiency, create challenges for system components
• Frequent cloud cover and overcast conditions during certain periods
• Strong winds that can damage improperly secured installations

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can be employed:

• Install panels at steeper angles (like the recommended 52 degrees) to help snow slide off naturally
• Use specialized cold-weather mounting systems and components rated for extreme temperatures
• Implement heating systems or snow removal mechanisms for panels during heavy snow periods
• Choose high-quality panels with anti-reflective coatings that perform better in low-light conditions
• Install robust mounting systems designed to withstand high wind loads
• Consider tracking systems that can adjust panel angles seasonally to optimize performance

Overall Assessment

Yellowknife's location makes it poorly suited for year-round solar energy generation as a primary power source. The dramatic seasonal variation means solar systems would need substantial battery storage or backup power sources to maintain consistent electricity supply, particularly during the winter months when production drops to minimal levels. The location is best suited for seasonal solar applications or as a supplementary power source during the productive summer and spring months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

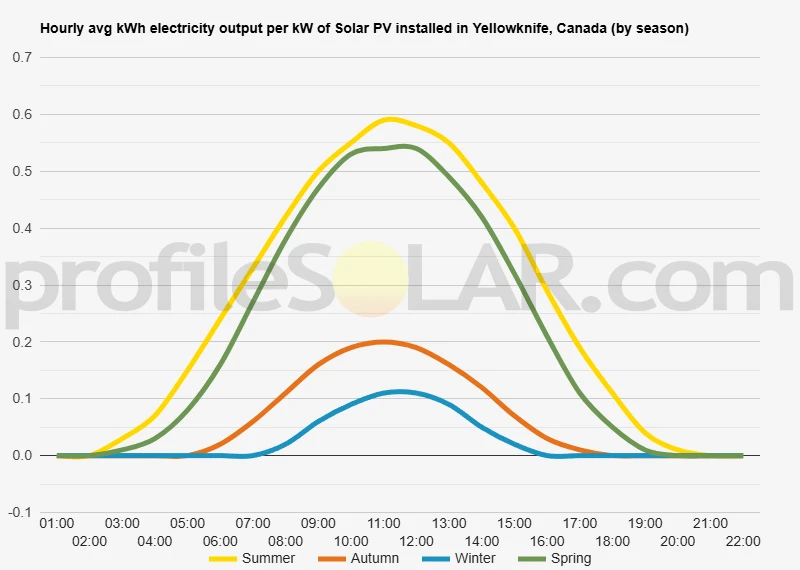

Solar output per kW of installed solar PV by season in Yellowknife

Seasonal solar PV output for Latitude: 62.456, Longitude: -114.3525 (Yellowknife, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 52° South in Yellowknife, Canada

To maximize your solar PV system's energy output in Yellowknife, Canada (Lat/Long 62.456, -114.3525) throughout the year, you should tilt your panels at an angle of 52° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Yellowknife, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Yellowknife, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 52° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
46° South in Summer	64° South in Autumn	73° South in Winter	54° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Yellowknife, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Yellowknife, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Yellowknife, Canada

Topographical Features Around Yellowknife

Yellowknife sits on the shores of Great Slave Lake in Canada's Northwest Territories, positioned on the Canadian Shield, one of the world's oldest geological formations. The landscape around the city is characterized by exposed Precambrian rock, creating a distinctive terrain of granite outcrops, shallow soils, and countless small lakes and wetlands. The elevation is relatively modest, with the city itself sitting at approximately 206 meters above sea level, while the surrounding terrain gently undulates between 150 and 400 meters in elevation.

The region features a mix of boreal forest and subarctic tundra, with black spruce, white spruce, and birch trees dominating the forested areas. Rocky outcrops frequently break through the thin soil layer, creating a patchwork landscape of forest, exposed bedrock, muskeg, and numerous water bodies. The terrain is generally well-drained despite the abundance of surface water, as the underlying bedrock prevents deep water infiltration.

Great Slave Lake, Canada's deepest lake, dominates the southern horizon and significantly influences the local microclimate. The lake's vast expanse creates more moderate temperatures near the shoreline compared to inland areas. North and east of Yellowknife, the landscape gradually transitions from boreal forest to increasingly open tundra as elevation rises slightly and tree cover becomes more sparse.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Yellowknife would be the elevated plateau areas to the north and northeast of the city. These areas offer several advantages including relatively flat terrain with good southern exposure, minimal tree cover that would require clearing, and solid bedrock foundations that can support substantial infrastructure. The exposed granite surfaces in these locations provide excellent drainage and reduce concerns about seasonal ground instability.

Areas along the northern shores of Great Slave Lake, particularly the flatter sections between Yellowknife and the Ingraham Trail corridor, present good opportunities for solar development. These locations benefit from the lake's moderating influence on local weather patterns while offering sufficient open space and reasonable access to existing infrastructure. The combination of rocky terrain and proximity to transmission corridors makes these areas particularly attractive for utility-scale projects.

The region around the Ingraham Trail, extending northeast from Yellowknife, contains several suitable sites where the terrain opens up into broader, flatter areas with southern-facing slopes. These locations offer the advantage of existing road access while maintaining distance from residential areas. The bedrock-dominated landscape in this corridor provides stable foundations and natural drainage, essential considerations for large-scale solar installations in a region with significant seasonal temperature variations.

Areas to avoid would include the numerous wetland regions, heavily forested zones that would require extensive clearing, and locations with primarily northern-facing slopes. The muskeg areas, while flat, present foundation challenges due to their organic composition and seasonal water fluctuations. Similarly, sites too close to Great Slave Lake's immediate shoreline may face restrictions related to environmental protection and potential ice-related impacts during winter months.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
