Location estimate

Calama

Antofagasta · Chile

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

9.46

kWh/day

Autumn

7.04

kWh/day

Winter

5.87

kWh/day

Spring

9.17

kWh/day

Shared scale: 0–10.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Calama, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 9.46 9.46 × 1 kWp = 9.46 kWh/day
Autumn 7.04 7.04 × 1 kWp = 7.04 kWh/day
Winter 5.87 5.87 × 1 kWp = 5.87 kWh/day
Spring 9.17 9.17 × 1 kWp = 9.17 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
9.46
Autumn · kWh/day
7.04
Winter · kWh/day
5.87
Spring · kWh/day
9.17

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 20 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
20°
Facing direction
North

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Dec, Jan, Feb
7°North
Autumn
Mar, Apr, May
28°North
Winter
Jun, Jul, Aug
38°North
Spring
Sep, Oct, Nov
16°North

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Calama, Antofagasta, Chile.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 7 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

7° tilt · North

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 28 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

28° tilt · North

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 38 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

38° tilt · North

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 16 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

16° tilt · North

Illustrative direction; exact azimuth not recorded.

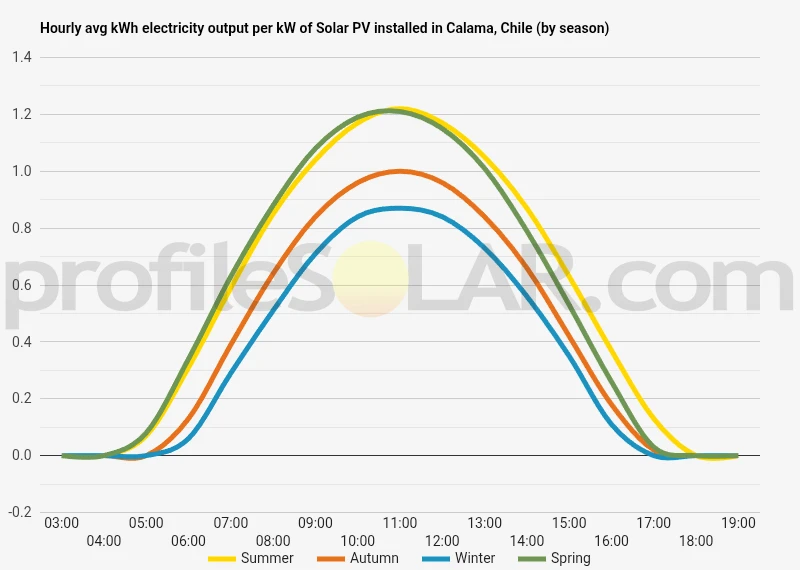

Historical hourly-by-season solar output chart for Calama, Chile. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Calama, Chile

Hourly profiles by season — Calama, Chile · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Calama, Chile · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Calama

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.59 m

Proportional side viewDesign sun: ≈ 44.09° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.71 m
Added margin
≈ 0 m
Gap including margin
≈ 0.71 m
Panel horizontal footprint
≈ 1.88 m
Panel vertical rise
≈ 0.68 m
Pitch before margin
≈ 2.59 m

Simplified level ground, equator-facing cross-section. Approximate Southern Hemisphere winter solstice at solar noon (day 172). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
20°
Added margin
0 m
Latitude from the catalogue
-22.456700000000000000° (Southern Hemisphere)
Panel horizontal footprint
1.8793852415718169 m
Panel vertical rise
0.6840402866513374 m
Calculated clear gap
0.7060346506950536 m
Pitch before margin
2.5854198922668705 m
Gap including margin
0.7060346506950536 m
Row pitch including margin
2.5854198922668705 m
Design solar elevation
44.09351715318635°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Calama

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Calama, at 22.4567°S,68.9237°W, combines a high-desert setting with the river landscape of the Loa. Its recorded solar resource is strong in every reference season, although it still changes during the year. The oasis and the built city are important parts of this setting: Calama is more than an expanse of bare desert around a calculation point.

Read the full article

The estimated average daily electrical outputs per kW of rated installed capacity are 9.46 kWh/day in summer,7.04 kWh/day in autumn,5.87 kWh/day in winter and 9.17 kWh/day in spring. Summer and spring are close together at the top of this sequence. Winter is appreciably lower, but its reference remains substantial compared with the summer figure. The pattern describes an extended strong generating season with a meaningful winter contribution, rather than constant production. The difference between spring and summer is small enough that neither should be treated as the only useful production window. Autumn and winter also contribute to the annual total. At the same time, seasonal averages cannot show the sequence of clear and cloudy hours, a particular dust episode or the electricity available after sunset. An installation's actual contribution to demand depends on when generation and use coincide. The fixed reference is 20° facing North. This is a broad output-weighted reference based on simplified solar geometry for the recorded point, not a universal optimum for the city or its surrounding plateau. Nearby relief and obstructions can change exposure even in an otherwise open desert view. The seasonal electricity estimates do not model gains from changing panel tilt. The municipal description of Calama identifies dry air and pronounced day-to-night temperature changes. These are relevant parts of its desert character, but they do not supply a local equipment-loss percentage. Dust deposited on glass can also affect performance without justifying the original assumption of a fixed 10–30% loss. Cleaning needs depend on actual deposits, rainfall, tilt and equipment instructions; they cannot be set from the seasonal reference alone. Water is also part of the local picture. The Loa oasis supports cultivated ground within the desert environment, so water use and land use should remain visible when considering how solar equipment would be maintained. The high recorded resource is useful on its own terms. It does not require claims of negligible particulates, universally stable foundations or a guaranteed engineering response to the desert climate.

Topography around Calama

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Calama occupies a high-desert plain crossed by the Loa. The municipal physical description distinguishes the urban plain, the river and oasis ground, a southeastern plain around the airport between the routes towards Antofagasta and San Pedro de Atacama, and higher ground towards the west and north in the Chuquicamata direction. The wider landscape includes isolated hills and quebradas as well as the more continuous plain.

Read the full topography description

The river is not merely a distant feature passing near the city. At Calama it crosses at the level of the surrounding ground, sustaining an oasis of cultivated vegas and terraces. This green and watered corridor contrasts with the sparse desert surroundings. It also interrupts any simple description of the whole city fringe as dry, uniform ground. The municipal account records poorly drained and saline low ground associated with the alluvial landscape, and flooding affected the city in 2001. Those observations do not assign a flood category to every property, but they contradict the idea that aridity makes river risk negligible. A shallow depression, a terrace edge and a broad dry-looking surface can have different relationships to the Loa and to runoff. For solar exposure, broad plains can provide long views while hills and the sides of quebradas break the horizon locally. The effect of a ridge depends on its position and apparent height from the array, not simply on whether it lies east or west of the city. A blanket instruction to avoid all eastern ground or prefer all western ground would discard those local differences. The city, airport corridor, oasis cultivation and desert relief also describe a landscape with existing uses. Bare-looking terrain cannot be equated with spare land, and a smooth surface says little about foundation behaviour in variable alluvial material. Distance from the centre alone does not resolve those differences across the desert fringe. Calama's distinctive solar context is the conjunction of a strong seasonal resource, an elevated desert plain and a river oasis embedded within it. Keeping those elements together provides a more useful geographic account than treating the surroundings as a single empty platform. The calculated output can inform an energy comparison, while the hills, water corridor and different ground surfaces explain why exposure and physical conditions still vary across the local landscape.

Technical location reference

Approximate map point used for Calama, Chile

This coordinate is the calculation reference for Calama, Chile. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
-22.456700000000000000, -68.923700000000000000
Originally displayed coordinate
lat-22.4567 / long-68.9237

How the estimate works

How this Calama estimate was calculated

Here is how I calculated the location estimate for Calama, Chile.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Calama Location estimate includes and leaves out

Use the Calama figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
